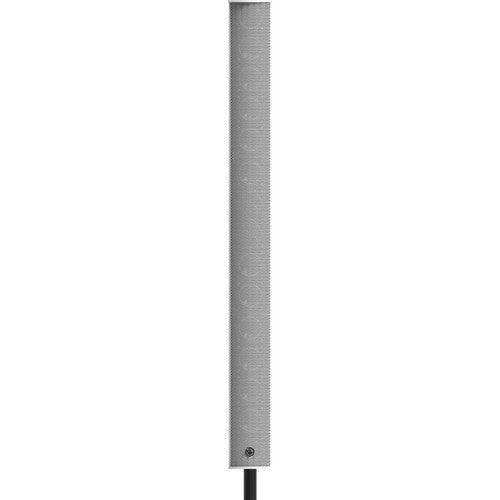

Atlas Sound ALA15TAW 15" Speaker Full Range Line Array Speaker System (White)

Product Overview

The Atlas Sound ALA15TAW is an EN54-24 certified column line array speaker engineered for commercial sound installations where speech intelligibility is the priority. Its fifteen 3" full-range drivers and four high-frequency tweeters project a controlled 135° x 40° pattern that keeps energy on the audience and off reflective surfaces, making it well suited to acoustically challenging rooms. With 70.7V/100V transformer taps and a 6-ohm low-impedance option, the ALA15TAW integrates directly into both distributed audio systems and direct-amplified designs. The white extruded aluminum enclosure blends into architecturally sensitive spaces such as houses of worship, lecture halls, and transportation hubs.

Product Description

Column line array installation succeeds or fails on pattern control, and the ALA15TAW delivers it in a minimal footprint. Fifteen tightly packed proprietary 3" (76mm) full-range drivers form the vertical line source, while four 22mm tweeters extend high-frequency response for clear, articulate speech reproduction across the listening area. The system handles 600 watts RMS at 6 ohms and offers 70.7V taps at 60W, 30W, 15W, and 7.5W plus 100V taps, so integrators can deploy it on constant-voltage distributed audio lines or run it low-impedance from a dedicated amplifier channel. Frequency response spans 160Hz to 20kHz (+/-5dB) with 96dB sensitivity (1W/1m), and barrier strip and NL-4 terminals simplify wiring during commercial AV installation. The rear of the extruded aluminum housing incorporates vertical channels that accept the included wall mount bracket, letting the installer slide the mount to set the desired vertical tilt without drilling new holes. An optional pole mount bracket supports portable line array applications when paired with an A-Line subwoofer system. EN54-24 certification qualifies the ALA15TAW for voice evacuation and life-safety audio systems, and an IP33C ingress rating supports covered outdoor and semi-exposed locations. AtlasIED backs the speaker with a five-year limited warranty. A matching black version is also available for darker interiors; contact Creation Networks for finish options and system design assistance.

Key Features

• EN54-24 Certified — Approved for voice alarm and life-safety sound systems where certified evacuation audio is required.
• Fifteen 3" Full-Range Drivers — A dense vertical line source delivers consistent speech intelligibility throughout long, reverberant rooms.
• Four High-Frequency Tweeters — 22mm tweeters extend response to 20kHz for natural vocal clarity and program audio.
• 135° x 40° Dispersion — Wide horizontal and controlled vertical coverage directs sound at listeners and reduces reflections from ceilings and floors.
• 70.7V/100V Taps Plus 6-Ohm Operation — Flexible power options support both constant-voltage distributed audio and low-impedance amplifier integration.
• 600W RMS Power Handling — Headroom for high-output paging and music reinforcement in large commercial spaces.

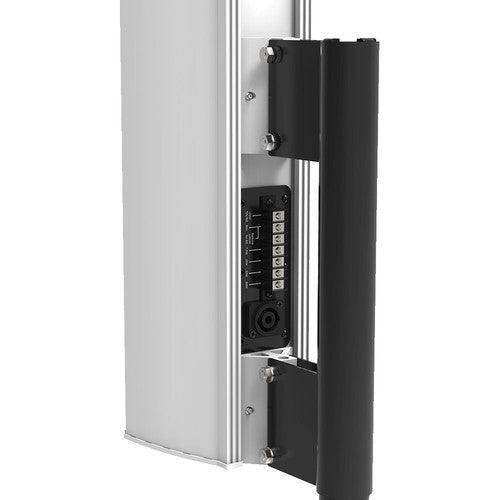

• Sliding Wall Mount Included — Rear channel system lets installers adjust vertical tilt during installation without repositioning hardware.
• IP33C-Rated Aluminum Enclosure — Lightweight extruded aluminum housing withstands covered outdoor and high-traffic environments.

Typical Applications

• House of worship sound reinforcement
• Auditorium and lecture hall speech systems
• Government space paging and voice evacuation
• Multi-purpose room audio
• Commercial meeting space reinforcement
• Training room AV systems

Technical Specifications

Frequently Asked Questions

Can the ALA15TAW run on a 70V distributed audio system?
Yes. It includes 70.7V taps at 60W, 30W, 15W, and 7.5W as well as 100V taps, plus a 6-ohm low-impedance bypass for direct amplifier connection.

Is this speaker suitable for voice evacuation systems?
Yes. The ALA15TAW carries EN54-24 certification, qualifying it for voice alarm and life-safety audio installations where certified components are mandated.

What mounting hardware is included?
A wall mount bracket is included; rear vertical channels let the installer slide the mount to set the desired tilt. An optional pole mount bracket supports portable use with an A-Line subwoofer.

Can it be installed outdoors?
The IP33C ingress rating supports covered outdoor and semi-protected locations. It is not intended for direct, unprotected weather exposure.

What amplifier should I pair with it?
For distributed systems, any 70.7V/100V commercial amplifier with adequate wattage for your tap settings works; for low-impedance use, select an amplifier rated for 6-ohm loads up to 600W RMS. Creation Networks can help spec the right amplifier for your system design.

What warranty applies?
AtlasIED provides a five-year limited warranty (60 months from date of purchase), and Creation Networks supports your order before and after installation.
