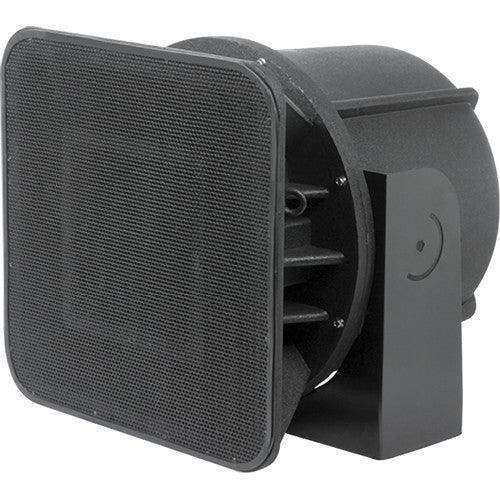

Atlas Sound AH94-8T-BSG 8" 2-way Stadium Horn System 65° x 65°
Atlas Sound AH94-8T-BSG 8" 2-way Stadium Horn System 65° x 65° is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound AH94-8T-BSG 8" 2-way Stadium Horn System 65° x 65°
Product Overview
The Atlas Sound AH94-8T-BSG is an 8" two-way stadium horn speaker system built for long-throw voice and music reproduction in outdoor sports venues and large commercial spaces. Designed for directional sound distribution, it delivers full-range output with high intelligibility at the sound pressure levels stadium PA installation demands. Its weather-resistant construction makes it a dependable choice for permanent outdoor commercial audio deployment. AV integrators specifying paging and announcement systems for arenas, fields, and convention centers will find it covers seating sections with consistent, controlled energy.
Product Description
The AH94-8T-BSG pairs an 8" cast-frame woofer with a concentrically mounted 1" exit compression driver coupled to a constant-directivity high-frequency horn, giving system designers predictable pattern control across the 2 kHz octave band. Sensitivity is rated at 101 dB SPL (1W/1m) with a maximum output of 121 dB at rated power, so a single horn can project announcements across bleachers, end zones, and concourses without strain. A built-in high-efficiency 70.7V transformer with 7.5, 15, 30, and 60 watt taps plus an 8-ohm bypass lets integrators run the speaker on distributed 70V speaker lines or low-impedance amplifier channels. Weather resistance is engineered in: a perforated aluminum screen covers the horn mouth, a secondary screen sits forward of the compression driver, and a third tightly perforated screen protects the woofer, while a weep hole on the rear bell allows internal condensation to evaporate. The recessed terminal block on the bottom of the enclosure keeps connections protected from the elements. Three forged eyebolts support suspended installation, and the included heavy-duty mounting bracket simplifies surface-mount outdoor speaker installation on poles, catwalks, and structural steel. For commercial AV integration projects that require durable, intelligible long-throw coverage, the AH94-8T-BSG remains a proven specification. Pair it with 70V amplifiers and DSP from Creation Networks for a complete stadium sound system.
Key Features
- Constant-Directivity Horn Design — Controlled coverage in the 2 kHz octave band lets designers aim energy at seating areas and keep it off reflective surfaces.
- 100W Power Handling with 121 dB Maximum Output — High output capability projects clear announcements across large outdoor distances.
- Built-In 70.7V Transformer — Taps at 7.5, 15, 30, and 60 watts plus an 8-ohm option support both distributed-line and direct amplifier connection.
- Multi-Screen Weather Protection — Three perforated screens shield the horn mouth, compression driver, and woofer from moisture intrusion.
- Condensation Weep Hole — A rear-bell weep hole lets internal condensation evaporate, extending service life in humid outdoor environments.
- Recessed Weather-Resistant Terminal Block — Bottom-mounted wiring connection stays protected and simplifies field termination.
- Flexible Rigging Options — Three forged eyebolts and an included heavy-duty bracket support suspended or flat-surface mounting.
- 5-Year Limited Warranty — AtlasIED backs the system with a 60-month warranty from date of purchase.
Typical Applications
- Auditorium sound reinforcement and paging
- House of worship outdoor and overflow coverage
- Government space mass notification and paging
- Multi-purpose room and field-house announcement systems
Technical Specifications
| Power Taps | 7.5, 15, 30, and 60 Watts & 8Ω |
| Power Handling | 100 Watts |
| Sensitivity | 101 dB SPL (1W/1m) |
| Maximum Output | 121 dB (rated power @ 1m) |
| Frequency Response | 90 Hz – 15 kHz |
| Driver Type | 1" HF compression driver and 8" LF cast-frame woofer |
| Dispersion (vendor published) | 90° x 40° (2 kHz octave band) |
| Weather Rating | IP54 |
| Width | 19.66" (49.93 cm) |
| Weight | 63.00 lbs (28.58 kg) |
| Included Hardware | Heavy-duty mounting bracket, three forged eyebolts |
| Warranty | 60 months from date of purchase |
Frequently Asked Questions
Can the AH94-8T-BSG run on a 70V distributed speaker system?
Yes. The built-in 70.7V transformer offers 7.5, 15, 30, and 60 watt taps, and an 8-ohm bypass is available for direct low-impedance amplifier connection.
Is this stadium horn suitable for permanent outdoor installation?
Yes. It carries an IP54 rating with a multi-screen moisture-protection design and a condensation weep hole, making it appropriate for permanent outdoor stadium and arena mounting.
How is the speaker mounted?
A heavy-duty surface-mount bracket is included, and three forged eyebolts support suspended rigging from structural steel or catwalks.
How do I protect the compression driver from low-frequency damage?
AtlasIED recommends high-pass protection for horn-loaded systems; the TSD-HF11 protection unit is designed for this purpose. Our team can help you specify it with your amplifier and DSP chain.
What warranty applies to this product?
AtlasIED provides a limited warranty of 60 months from the date of purchase, and Creation Networks supports you through the claim process.
Can Creation Networks help design my stadium sound system?
Yes. Contact our commercial AV team at creationnetworks.net for coverage layout, amplifier sizing, and full system integration support.
