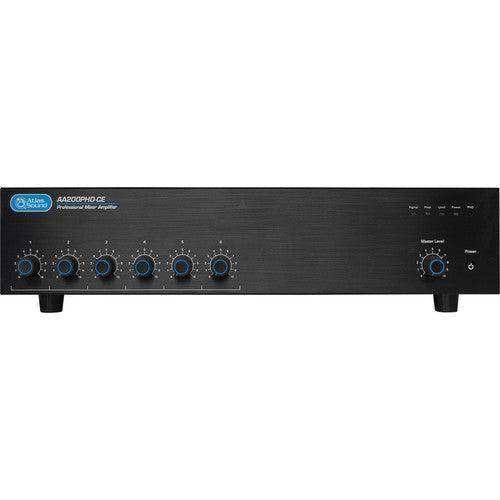

Atlas Sound AA200PHD-CE CE Listed 6-Input, 200-Watt Mixer Amplifier with Automatic System Test

Product Overview

The Atlas Sound AA200PHD-CE is the CE listed, 220–240 VAC version of the AA200PHD 6-input, 200-watt mixer amplifier, built for distributed business paging, background music (BGM), medium-to-large speech privacy systems, and music-on-hold-plus-paging applications in European and other 230V markets. It delivers 200 watts into 50V/100V constant-voltage or 4-ohm speaker systems, matching the 100V line standard used in international commercial audio installations. Like its North American counterpart, it includes the Push Here Diagnostic (PHD) automatic system test that verifies speaker line wiring and impedance at the push of a button. Four balanced mic/line/tel inputs and stereo summing line inputs accommodate paging microphones, media players, and digital music receivers.

Product Description

For integrators specifying commercial paging amplifiers on projects outside North America, the AA200PHD-CE removes two common headaches: mains voltage and line voltage. The amplifier operates on 220–240 VAC and drives 50V/100V constant-voltage speaker lines — the distributed audio standard in Europe, the Middle East, Asia-Pacific, and much of the world — as well as 4-ohm low-impedance loads. CE listing supports compliance documentation for European deployments.

The headline feature is the Push Here Diagnostic (PHD) automatic system test. Once all speakers are connected, pressing the PHD button verifies that the attached speakers' tap settings do not exceed the amplifier's rated power, that no speaker is mistakenly tapped at 8 ohms, and that the speaker wiring is free from shorts — built-in commissioning verification for constant-voltage speaker lines without a separate impedance meter.

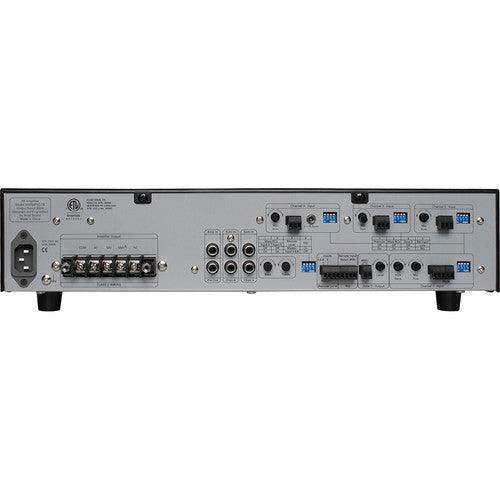

The input section handles a full commercial sound system installation from one chassis. Inputs 1–4 are balanced and selectable between mic and line operation with optional phantom power for condenser paging microphones; additional stereo summing line inputs accept media players and digital music sources. A rear-panel DIP switch creates an input-assignable Zone 2 output mix from inputs 1–4 for simple two-zone distribution. For paging priority, the amplifier mutes inputs 2–6 on signal from input 1 with variable mute sensitivity, and contact closure mute terminals allow fire alarm or notification systems to silence the amplifier. The optional WPD-RISRL remote wall plate (sold separately) gives end users input selection and level control up to 200 feet from the amplifier, and a line output plus preamp input support external processors or additional amplifiers in larger distributed audio systems.

Key Features

• CE Listed, 220–240 VAC Operation — Purpose-built for European and other 230V markets, simplifying compliance and power provisioning on international projects.
• 200 Watts into 50V/100V and 4-Ohm Loads — Drives 100V constant-voltage distributed speaker lines used internationally, plus low-impedance loads.
• Push Here Diagnostic (PHD) System Test — One-button verification of speaker tap loading, 8-ohm tap errors, and shorted speaker wiring at commissioning.
• Four Balanced Mic/Line/Tel Inputs with Phantom Power — Accepts paging microphones, telephone paging ports, and line sources without external preamps.
• Input-Assignable Zone 2 Output — Rear-panel DIP switches build a second output mix from inputs 1–4 for two-zone paging and BGM.
• Priority Paging Mute — Signal on input 1 mutes inputs 2–6 with variable sensitivity; contact closure mute terminals support life-safety muting.
• Remote Input Select and Level Control — The optional WPD-RISRL wall plate provides user control up to 200 feet from the rack.
• Line Output and Preamp Input — Insert external DSP or feed downstream amplifiers in larger distributed audio designs.
• Three-Year Manufacturer Warranty — AtlasIED backs the AA200PHD-CE with a 36-month warranty from date of purchase.

Typical Applications

• Commercial meeting space — paging plus background music across international office facilities
• House of worship — 100V distributed audio for lobbies, classrooms, and overflow spaces
• Government space — announcement and paging systems in 230V-mains facilities
• Multi-purpose room — mixed microphone and program audio with simple zone assignment
• Training room — mic plus media playback with remote wall plate control
• Conference room — program audio distribution into ceiling speaker zones

Technical Specifications

Frequently Asked Questions

How is the AA200PHD-CE different from the standard AA200PHD?
The CE version operates on 220–240 VAC mains and, per AtlasIED, drives 50V/100V constant-voltage and 4-ohm loads — the line standard used in European and most international installations. The North American AA200PHD runs on 110–120 VAC with 25V/70.7V outputs.

What does the Push Here Diagnostic (PHD) test check?
With all speakers connected, the PHD button verifies that total tap settings do not exceed the amplifier's rated power, that no speaker is mistakenly tapped at 8 ohms, and that the speaker wiring is free from shorts.

How does paging priority work?
Signal on input 1 mutes inputs 2 through 6, with variable mute sensitivity, so pages always override background music. Contact closure mute terminals allow external systems such as fire alarms to mute the amplifier.

Does it support remote volume and source control?
Yes. The optional AtlasIED WPD-RISRL remote wall plate provides input selection and level control up to 200 feet from the amplifier.

Can I run two audio zones?
Yes. A rear-panel DIP switch assigns any or all of inputs 1–4 to a Zone 2 output mix for basic two-zone distribution.

What warranty and support are included?
AtlasIED provides a 36-month warranty. For amplifier sizing and 100V speaker zone design assistance, contact Creation Networks at creationnetworks.net.
