Atlas Sound AA-YSUM – Passive Stereo-to-Mono Summing Cable for AA Series Amplifiers

Product Overview

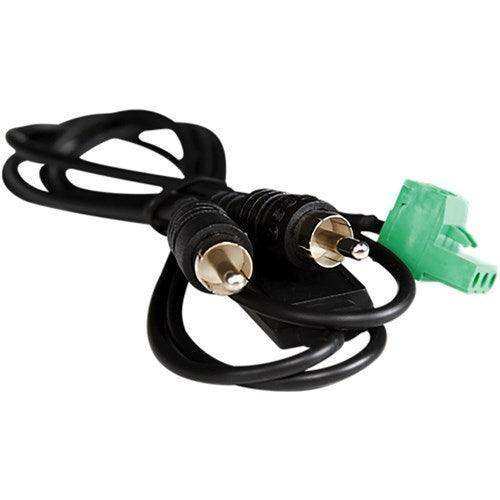

The Atlas Sound AA-YSUM is a passive summing cable that converts a stereo unbalanced audio signal into a mono unbalanced signal using an internal resistor network, making it compatible with the mono mic/line inputs found on Atlas Sound AA series mixer amplifiers. It provides a practical, low-cost solution for commercial installations where a stereo playback source—such as a CD player, DVD player, streaming receiver, or media server—needs to feed a mono amplifier input. The cable terminates with two male RCA connectors on the source end and a single 3-position Phoenix/Euro style connector on the amplifier end. At 3 feet (1 meter) in length, it is suited for rack-to-rack and equipment-to-rack connections within a typical AV equipment bay.

Product Description

The AA-YSUM uses a 3-resistor summing network to combine the left and right channels of a stereo unbalanced signal into a single mono output while maintaining impedance matching compatible with most audio equipment inputs and outputs. This passive approach requires no external power and introduces no signal processing beyond the summing function itself. The 3-position Phoenix/Euro style connector on the output end is sized at 5.5mm and matches the input connectors used on Atlas Sound AA series mixer amplifiers, allowing direct connection without adapters. The two male RCA connectors on the input end accept standard consumer and prosumer unbalanced stereo signals from a wide range of source devices. In commercial distributed audio systems, available stereo inputs on a mixer amplifier are often limited while mono mic/line inputs may remain unused; the AA-YSUM allows those mono inputs to be used for additional stereo playback sources. The cable is 3 feet long, which is appropriate for connecting devices within the same rack bay or adjacent equipment. A 36-month warranty from date of purchase is included.

Key Features

• Passive Stereo-to-Mono Summing — 3-resistor network combines L+R channels into a single mono signal without requiring power.
• Impedance Matching — Matched input and output impedance compatible with most audio equipment.
• Two Male RCA Connectors — Accepts standard unbalanced stereo signals from consumer and prosumer source devices.
• 3-Position Phoenix/Euro Connector — 5.5mm Phoenix style output connector matches AA series amplifier inputs directly.
• 3-Foot Cable Length — Appropriate for within-rack and adjacent-equipment connections.
• No External Power Required — Fully passive design simplifies installation and reduces points of failure.
