Atlas Sound A-BT-US – Atmosphere Remote Bluetooth Audio Input Accessory
Atlas Sound A-BT-US – Atmosphere Remote Bluetooth Audio Input Accessory is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound A-BT-US – Atmosphere Remote Bluetooth Audio Input Acces...
Product Overview
The Atlas Sound A-BT-US is a remote Bluetooth audio input accessory for the AtlasIED Atmosphere AZM signal processor platform, enabling wireless audio source integration in commercial distributed audio systems. By placing the A-BT at the optimal location for Bluetooth wireless coverage — independent of the AZM processor’s physical location — integrators can deliver convenient wireless audio input to boardrooms, conference rooms, retail spaces, and hospitality environments. Long-tail use cases include Bluetooth wireless audio input for Atmosphere DSP systems, remote Bluetooth receivers for commercial paging and background music zones, and NFC-pairing Bluetooth audio inputs for meeting rooms and corporate audio systems.
Product Description
The A-BT-US connects to the AtlasIED Atmosphere AZM audio processor’s accessory bus, which supports up to 8 devices per accessory port with reliable audio and data transmission over runs up to 1000 feet per port. Once connected, the AZM automatically detects the A-BT and dynamically assigns appropriate audio settings — including makeup gain, EQ, and auto gain control — to that input channel. No manual DSP configuration is required. The accessory bus also carries digital audio return from the host processor. The A-BT accepts stereo or mono Bluetooth source audio; stereo sources are summed to a mono signal before transmission to the AZM. NFC pairing is supported for fast initial device pairing. The front panel includes a local pair/unpair button and pairing indication LED. The broadcast name (SSID) is user-configurable. Each A-BT input can be configured to trigger high-priority notifications in the Atmosphere system. Note: The A-BT is not currently compatible with ChromeOS devices. The device is available in white (A-BT / A-BT-US) and black (A-BT-B) variants and includes a screwless Decora-style wall plate. It is daisy-chainable with other Atmosphere accessories. A 36-month warranty applies.
Key Features
- Remote Bluetooth Placement — Position the Bluetooth receiver at the optimal location for wireless coverage, independent of the AZM processor location.
- Plug-and-Play Integration — AZM automatically detects and configures the A-BT upon connection; no manual DSP setup required.
- Stereo or Mono Input — Accepts Bluetooth stereo or mono audio; user-selectable input mode.
- NFC Pairing — Near-field communication enables fast device pairing without manual Bluetooth menu navigation.
- High-Priority Notification Trigger — A-BT input can be defined to initiate high-priority paging or notification events in the Atmosphere system.

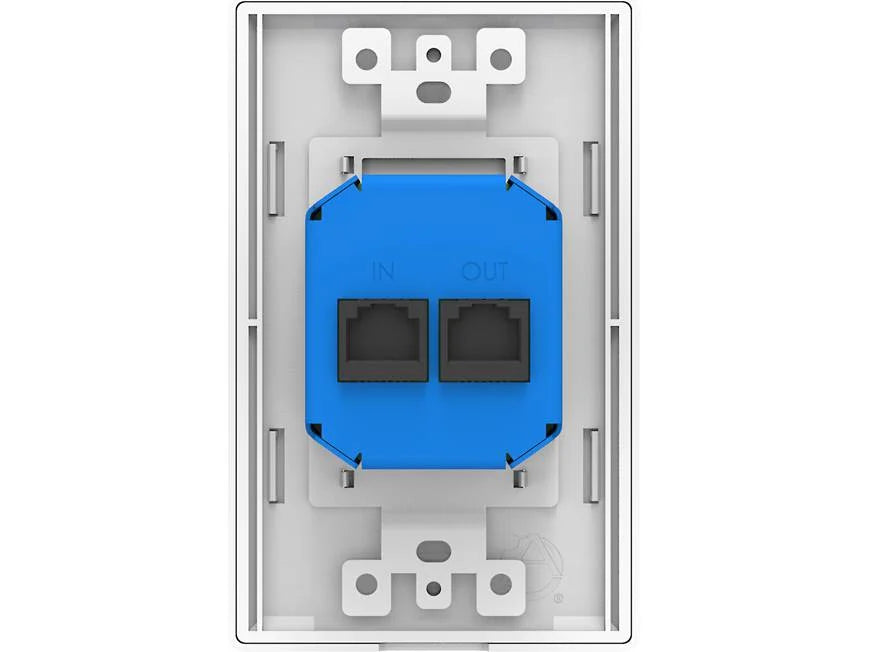

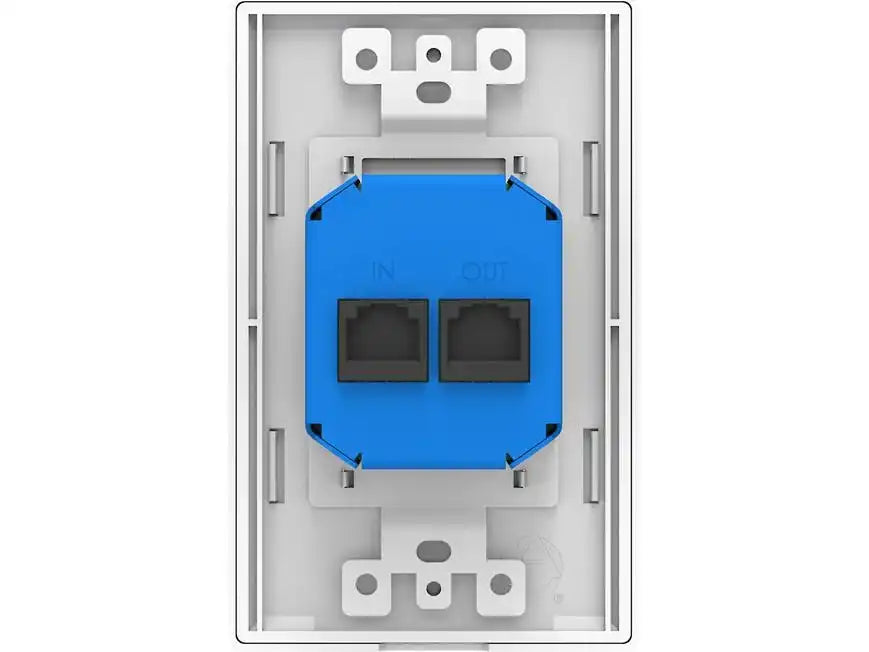

- Accessory Bus — Up to 8 Devices, 1000ft per Port — Daisy-chainable with other Atmosphere accessories over long cable runs.
- Digital Audio Return — Bidirectional digital audio path back to the host processor over the accessory bus.
- User-Defined Broadcast Name (SSID) — Customizable Bluetooth device name for end-user identification.

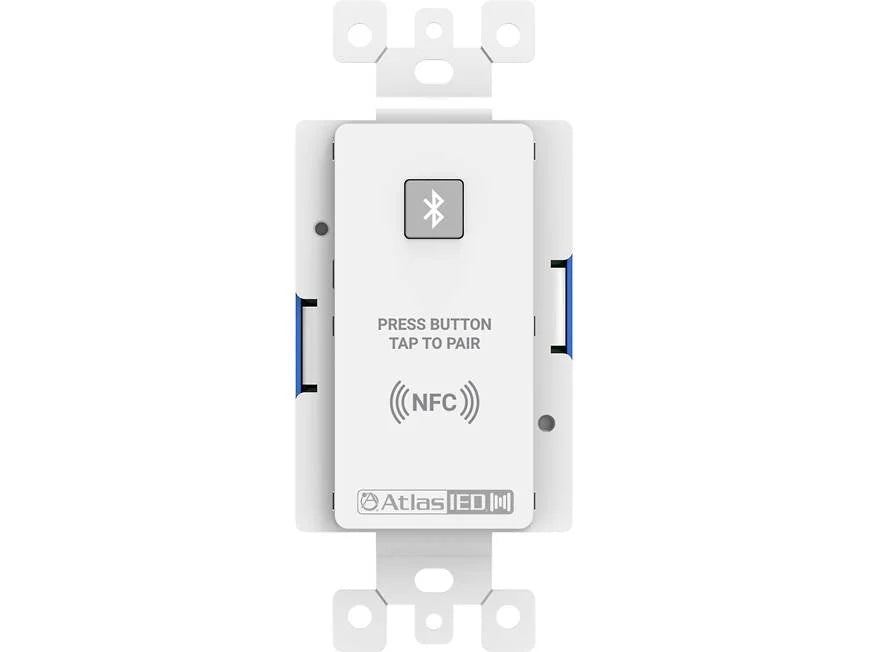

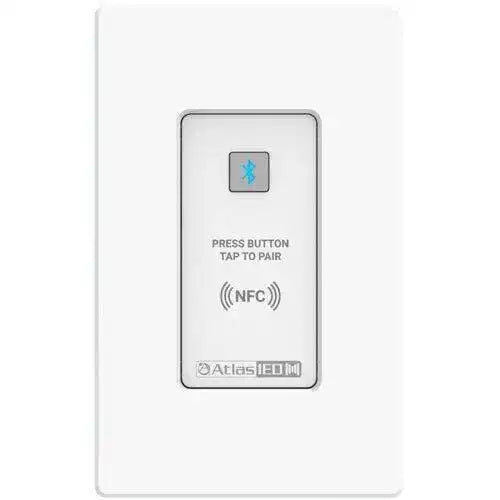

- Screwless Decora Wall Plate Included — Mounts in a standard Decora single-gang opening for a professional finish.
- Local Pair/Unpair Button — Front-panel button and indicator LED provide direct Bluetooth management without software access.
Typical Applications
- Boardroom
- Conference room
- Commercial meeting space
- Multi-purpose room
- House of worship
- All-hands room
- Training room
Technical Specifications
| Specification | Value |
|---|---|
| Compatible Platform | AtlasIED Atmosphere AZM signal processor |
| Input Type | Bluetooth (stereo or mono, summed to mono) |
| Pairing Methods | Bluetooth (local button), NFC |
| Accessory Bus Cable Length | Up to 1000ft per accessory port |
| Max Accessories per Port | 8 (up to 1 audio input accessory per port) |
| Wall Plate | Screwless Decora (included) |
| Color | White |
| Compatibility Note | Not compatible with ChromeOS |
| Warranty | 36 months from date of purchase |
Frequently Asked Questions
Q: Which AtlasIED processors is the A-BT-US compatible with?
A: The A-BT-US is designed specifically for use with the AtlasIED Atmosphere AZM series signal processors. It connects via the Atmosphere accessory bus port.
Q: Does the AZM require manual configuration when the A-BT-US is connected?
A: No. The Atmosphere AZM automatically detects the A-BT and dynamically assigns appropriate audio settings (makeup gain, EQ, auto gain control) to that input channel without manual DSP configuration.
Q: Can the A-BT-US be used with ChromeOS devices?
A: No. The A-BT-US is not currently compatible with ChromeOS source devices.
Q: How many A-BT accessories can be connected per AZM?
A: Up to 8 Atmosphere accessories can be connected to a single accessory port. However, only 1 audio input accessory (such as the A-BT) can be assigned per port.
Q: Can the Bluetooth device name be customized?
A: Yes. The broadcast name (SSID) visible to Bluetooth source devices is user-configurable through the Atmosphere software.
Q: What is the maximum cable run between the A-BT-US and the AZM?
A: The Atmosphere accessory bus supports reliable audio and data transmission up to 1000 feet per port.
Q: What warranty applies to the A-BT-US?
A: AtlasIED provides a 36-month warranty from the date of purchase.
