Atlas Sound 96-8 – 8-Inch Flanged Round In-Ceiling Enclosure
Product Overview

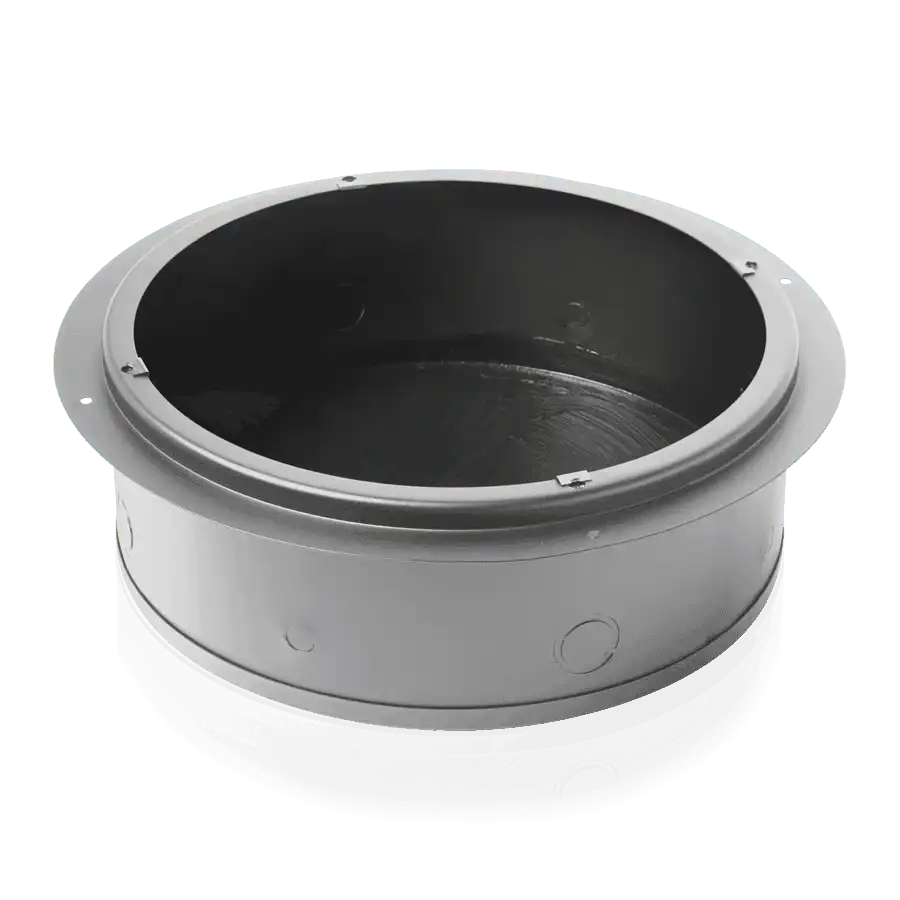

The Atlas Sound 96-8 is an 8-inch flanged round back box enclosure designed for in-ceiling loudspeaker installations. Constructed from 22-AWG cold-rolled steel (CRS) with an undercoating and black epoxy finish, it provides a durable, resonance-free housing for a wide range of Atlas Sound 8-inch baffles and grilles. This enclosure is UL Listed under standards 1480 and 2043, making it suitable for fire-rated and life safety audio installations.
Product Description
The Atlas Sound 96-8 cylindrical protective enclosure is engineered for cost-efficient installation of 8-inch in-ceiling speakers in commercial AV, paging, and life safety systems. Its welded CRS construction with an internal patch-jute lining eliminates mechanical and acoustical resonances that can degrade audio quality. The internal plaster flange includes pre-drilled mounting holes positioned for easy, convenient ceiling installation without additional hardware complications. The 4.25-inch (10.80 cm) depth accommodates most standard 8-inch speaker-baffle assemblies, while the 11.875-inch (30.16 cm) diameter matches the cutout requirements for compatible Atlas Sound grilles. Safety listings under UL 1480 and UL 2043 allow deployment in air-handling spaces and fire-rated ceiling assemblies where code compliance is mandatory. Compatible baffles include the 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, M222(W), P900, VP-60R, U51-8, U61-8W, U62-8, UG22-8, and UM222W, giving integrators flexibility across a wide installed base. The unit is TAA and BAA compliant, qualifying for government and federal procurement. A 60-month warranty underscores the long-term value of this enclosure in permanent installations.
Key Features
- 22-AWG Welded CRS Construction — Provides a rigid, durable housing that resists deformation during installation and over the product's service life.
- Undercoating and Patch-Jute Lining — Eliminates mechanical rattle and acoustic resonance for clean sound reproduction.
- Internal Plaster Flange Mounting Holes — Simplifies ceiling installation with pre-positioned hardware locations.
- UL Listed 1480 and 2043 — Qualifies for use in paging and life safety applications, including air-handling ceiling spaces.
- Broad Baffle Compatibility — Mounts over 15 Atlas Sound 8-inch baffle and grille models.
- TAA and BAA Compliant — Eligible for government and federally funded projects.
- 60-Month Warranty — Industry-leading coverage for commercial installation confidence.
Technical Specifications
| Specification | Value |
|---|---|
| Model | 96-8 |
| Depth | 4 1/4" (10.80 cm) |
| Diameter | 11 7/8" (30.16 cm) |
| Shipping Weight | 3.50 lbs (1.59 kg) |
| Compatible Baffles | 51-8, 60-8(W), 61-8W, 62-8, 63-8, 67-8(W), 68-8W, 170-8, G22-8, M222(W), P900, VP-60R, U51-8, U61-8W, U62-8, UG22-8, UM222W |
| Safety Listed | UL 1480 & UL 2043 |
| Compliance | TAA, BAA |
| Warranty Period | 60 months from date of purchase |
