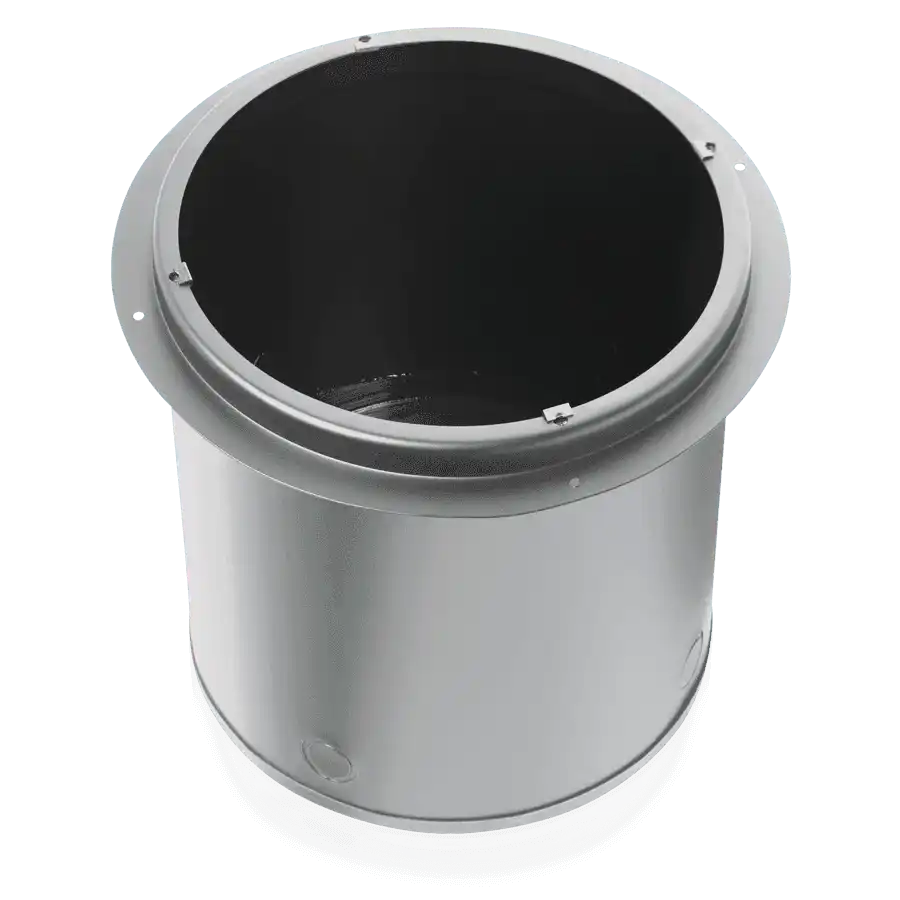

Atlas Sound 96-8-10 – 8" Flanged Round Back Enclosure 10" Deep with Fiberglass

Product Overview

The Atlas Sound 96-8-10 is a cost-efficient cylindrical flanged back enclosure for 8" loudspeakers with a 10" internal depth and acoustic fiberglass lining. It is designed for recessed ceiling installations and provides greater cubic volume than standard-depth enclosures, improving speaker loading and enhancing low-frequency output. The 96-8-10 is UL1480 listed, BAA and TAA compliant, and accepts a wide range of AtlasIED standard and U-series 8" baffles. It is well suited to commercial distributed audio installations in offices, retail spaces, hospitality environments, and educational facilities.

Product Description

The 96-8-10 is part of AtlasIED's 96 Series of cylindrical protective enclosures, which are engineered for professional sound system installations requiring durable, acoustically treated back cans. The welded cold-rolled steel (CRS) body is undercoated and lined with patch-jute material to eliminate mechanical and acoustical resonances that could compromise system audio quality. The 10" internal depth provides greater internal volume than shallower alternatives, which improves the acoustic loading on the 8" driver and extends the effective low-frequency response for fuller, richer bass reproduction. The flanged round design allows the enclosure to be positioned in standard round ceiling cutouts, with the flange providing a positive stop against the ceiling surface. The unit accepts an extensive range of AtlasIED 8" baffles, including standard and U-series options such as 51-8, 60-8, 61-8, 62-8, 63-8, 67-8, 68-8W, 170-8, G22-8, M222, P900, VP-60R, U51-8, U61-8W, U62-8, UG22-8, and UM222W. The painted finish and undercoating provide corrosion resistance. UL1480 listing confirms suitability for general signaling in commercial applications. BAA and TAA compliance qualifies the enclosure for government and institutional procurement. The 60-month warranty provides long-term assurance for permanent installations.

Key Features

• 10" Internal Depth — Greater cubic volume improves acoustic loading and low-frequency response.
• Fiberglass and Patch-Jute Lining — Eliminates mechanical and acoustical resonances for cleaner audio.
• Flanged Round Design — Clean ceiling fit with positive flange stop for standard round cutouts.
• Wide Baffle Compatibility — Accepts standard and U-series AtlasIED 8" baffles (16+ compatible models).
• Welded CRS Construction — Durable steel enclosure with painted, undercoated finish.
• UL1480 Listed — Qualified for commercial general signaling installations.
• BAA / TAA Compliant — Eligible for government and institutional specifications.
• 60-Month Warranty — Long-term warranty for permanent commercial deployment.

Technical Specifications
