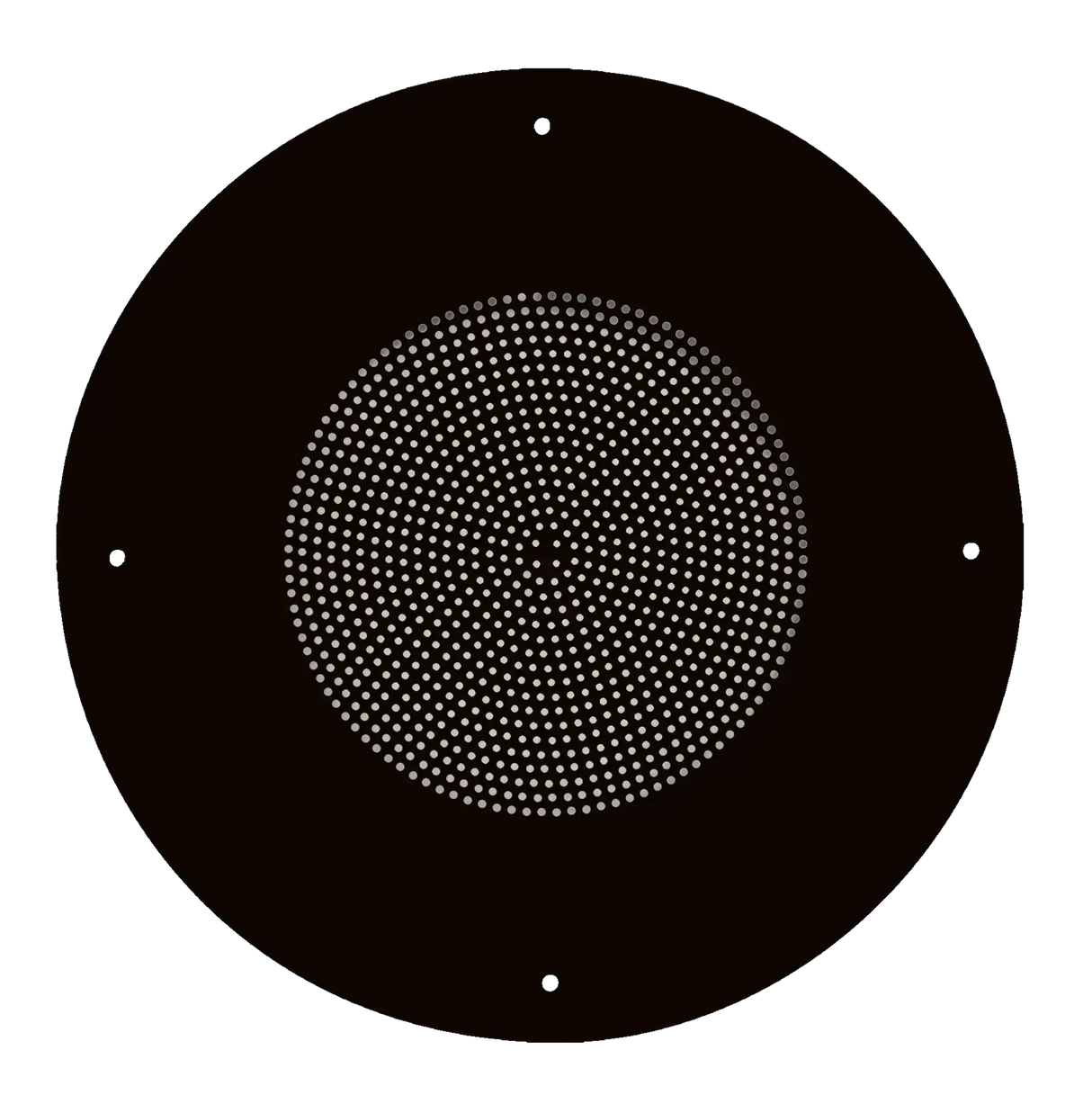

Atlas Sound 62-8-052 – General Purpose Steel Speaker Baffle 8" Black
Atlas Sound 62-8-052 – General Purpose Steel Speaker Baffle 8" Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound 62-8-052 – General Purpose Steel Speaker Baffle 8"...
Product Overview
The Atlas Sound 62-8-052 is a general-purpose steel speaker baffle sized for standard 8" (203 mm) loudspeakers, finished in textured black. Constructed from one-piece 24-gauge cold-rolled steel with a textured black powder coat, the 62-8-052 installs easily with concealed speaker mounting studs that hide all hardware from view. It is UL Listed (UL 1480) and compatible with AtlasIED companion enclosures and mounting rings for tile bridge and blind-mount installations.
Product Description
The 62-8-052 is a straightforward, one-piece steel baffle designed for commercial ceiling and wall speaker installations where a black finish is specified. The 24-gauge CRS body provides adequate rigidity for the speaker mounting task while keeping the overall weight to 1.25 lbs. The 12 3/4" overall diameter fits the standard cutout size for 8" speakers in suspended ceiling tile and drywall applications. Concealed loudspeaker mounting studs keep the front face of the baffle clean and hardware-free after installation. The textured black finish suits environments where black grilles are standard, including performing arts venues, lecture halls, corporate conference rooms, and hospitality spaces. AtlasIED companion enclosures and mounting rings are available for projects requiring a tile bridge or back box, providing a complete in-ceiling assembly solution. UL 1480 listing confirms the baffle meets fire and safety requirements for in-ceiling use. The 62-8-052 offers a reliable, cost-effective solution for high-volume commercial distributed audio installations.
Key Features
- One-Piece 24-Gauge CRS Construction — Durable cold-rolled steel body in a single-piece design.
- Textured Black Finish — Suits installations where black grilles are specified or preferred.
- Concealed Mounting Studs — Hardware is hidden from view for a clean finished appearance.
- Standard 8" Speaker Compatible — Accommodates any standard 8" (203 mm) loudspeaker.
- 12 3/4" Overall Diameter — Fits standard 8" ceiling cutouts in tile and drywall.
- UL Listed (UL 1480) — Safety certified for in-ceiling loudspeaker installation use.
- Companion Enclosures Available — Compatible with AtlasIED mounting rings and back boxes.
- 60-Month Warranty — Five-year product warranty.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Size | 8" (203 mm) |
| Overall Diameter | 12 3/4" (32.39 cm) |
| Material | One-piece 24-gauge CRS |
| Finish | Textured Black |
| Safety Listed | UL 1480 |
| Shipping Weight | 1.25 lbs (0.57 kg) |
| Warranty | 60 months from date of purchase |
