Atlas Sound FAP63TUC-W – 6.5" 70V UL Certified In-Ceiling Speaker Pair

Product Overview

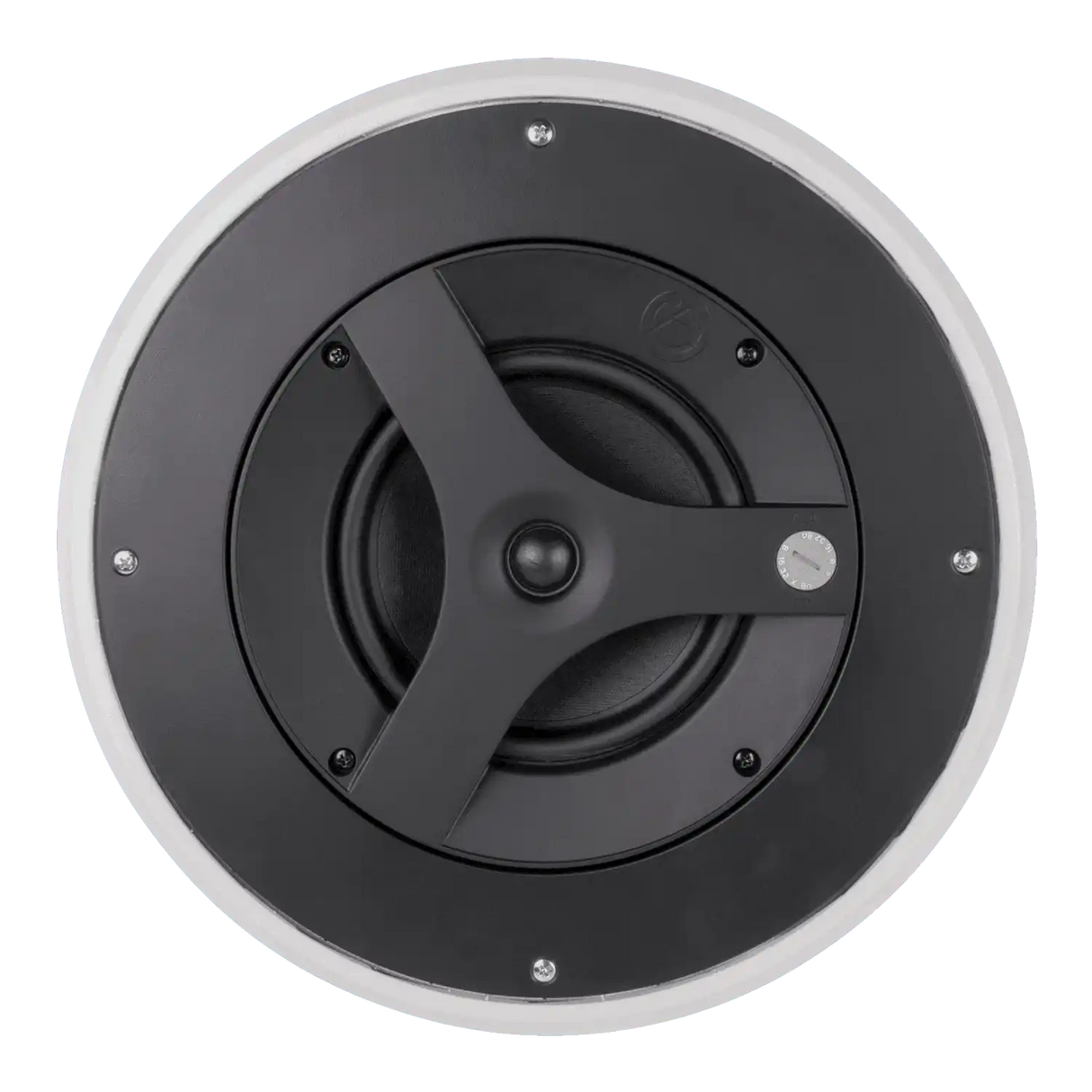

The AtlasIED FAP63TUC-W is a UL Certified 6.5" coaxial in-ceiling speaker from the Strategy III Series, featuring a 32-watt 70V/100V transformer, ported enclosure, and the Safety First Mounting System (SFMS). It carries UL1480 and UL2043 certifications for plenum-rated commercial installations and is designed for integrators who prioritize both compliance and installation efficiency. Sold as a pair. Long-tail search applications include UL certified 70V in-ceiling speaker for commercial, plenum-rated coaxial ceiling speaker with ported enclosure, and safety first mounting ceiling speaker for fast installation.

Product Description

The FAP63TUC-W delivers the full Strategy III feature set with an emphasis on verified UL certification, distinguishing it from speaker models that are merely listed to UL standards. The Safety First Mounting System uses T-handles built into the front baffle face to tighten mounting tabs in ceiling materials from sheet metal thickness up to 3/4" drywall, without requiring a separate installation tool. This patent-pending technology is the result of over 100 prototype iterations and reduces installation time by up to 60% compared to conventional dog-leg tab systems. Over-torquing — a common cause of mounting tab breakage with standard ceiling speakers — is mechanically prevented by the SFMS design, extending the long-term reliability of the installation. The ported enclosure includes an optimized low-frequency tuning port that deepens bass definition compared to a sealed back-can design. The improved waveguide achieves 110-degree dispersion, reducing the speaker count required for complete zone coverage. The 70.7V/100V internal transformer uses high-quality components to minimize insertion loss, maintaining system headroom across extended runs. A front-mounted 70V tap selector switch provides access to 4, 8, 16, and 32-watt taps plus an 8Ω direct-coupled bypass. The 4-pole detachable Phoenix connector enables pre-wiring of ceiling locations before speakers are installed and supports daisy-chaining of additional speakers or subwoofers. Press-fit grilles attach without tools or fasteners for a clean architectural finish. The trap-door input section accommodates both rigid and flexible conduit for through-conduit wiring installations. Corrosion-free mounting hardware with no metal screws in the dog-leg assembly provides long-term reliability in humid ceiling environments. Sold in pairs.

Key Features

• UL Certified (UL1480 & UL2043) — Fully certified for general signaling and plenum ceiling applications; meets specification requirements for commercial construction projects.
• Safety First Mounting System (SFMS) — Patented T-handle design reduces installation time by up to 60% and prevents mounting tab damage from over-torquing.
• Ported Enclosure — Optimized low-frequency port extends bass response and improves definition compared to sealed back-can designs.
• 110-Degree Dispersion — Wider coverage per speaker reduces total unit count required for consistent zone coverage.
• Low Insertion Loss 70.7V/100V Transformer — High-quality components preserve headroom on distributed runs up to 32 watts.
• Front-Mounted Tap Selector — Access to 4, 8, 16, 32W taps and 8Ω bypass without removing the baffle.
• 4-Pole Phoenix Connector — Detachable connector for pre-wiring and daisy-chain speaker connections.
• Trap-Door Input Section — Through-conduit compatibility with rigid or flexible conduit.

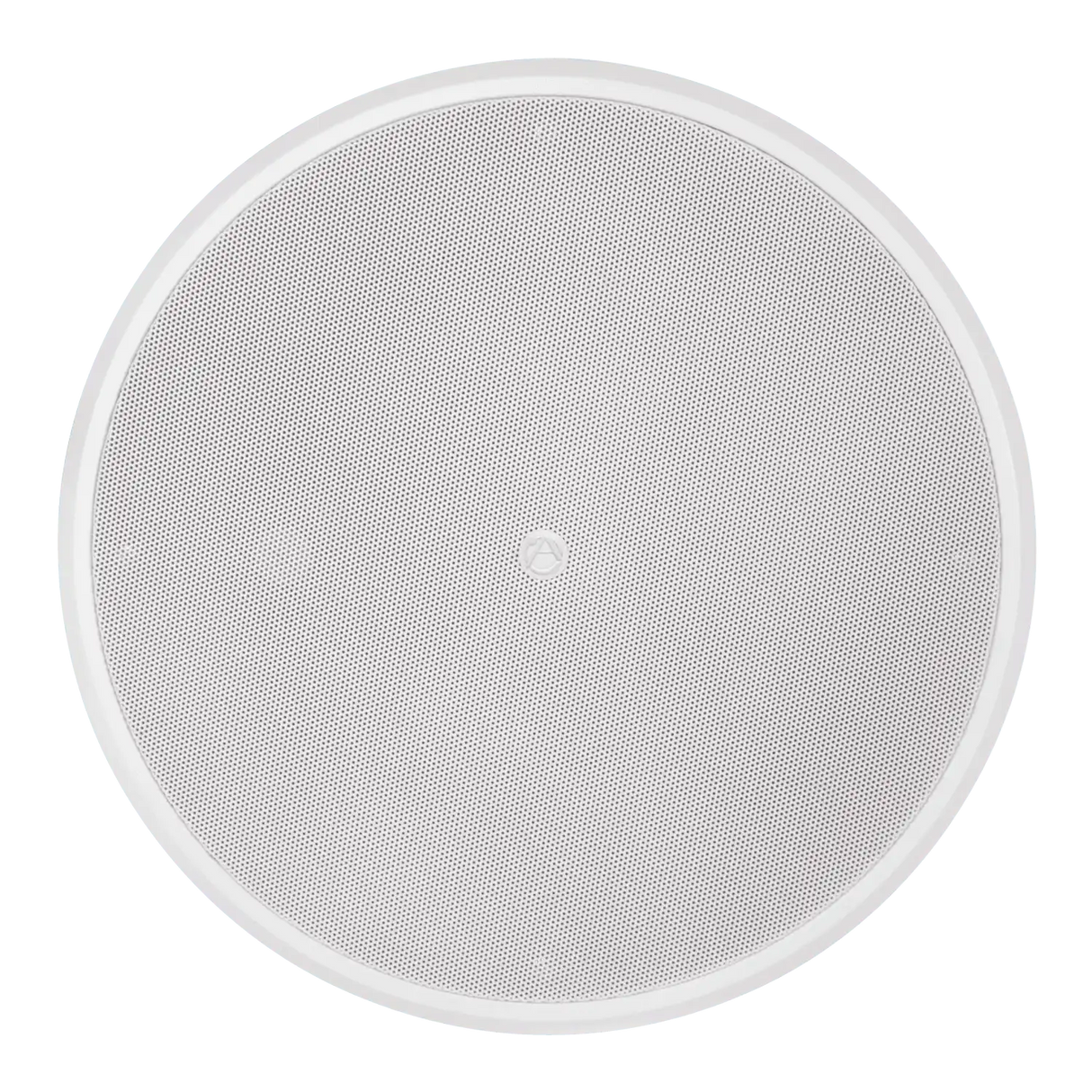

• Press-Fit Grille — Tool-free attachment for a clean, contemporary flush-ceiling finish.
• Corrosion-Free Hardware — No metal screws in dog-leg mechanism; eliminates rust-related failures in humid ceilings.

Typical Applications

• Conference room
• Boardroom
• Commercial meeting space
• Multi-purpose room
• Training room
• Government space
• House of worship
• All-hands room

Technical Specifications

Frequently Asked Questions

Q: What is the difference between "UL Listed" and "UL Certified" for ceiling speakers?

A: UL Listed means the product has been evaluated and meets UL standards. UL Certified (as on the FAP63TUC-W) indicates the product has undergone UL's full certification process, which may be a stricter compliance requirement on some commercial specifications and bid documents.

Q: What is the SFMS and how does it compare to standard ceiling speaker mounting?

A: The Safety First Mounting System uses T-handles integrated into the front baffle. You tighten mounting tabs with a hand twist of the T-handles rather than a screwdriver, eliminating the torque overload that cracks conventional dog-leg tabs. It also mounts up to 60% faster than standard systems.

Q: Does the ported enclosure require a specific back box?

A: The ported enclosure is self-contained and does not require a separate back box in most standard ceiling tile applications, but local code requirements should be reviewed for plenum installations.

Q: Can this speaker operate on an 8Ω direct-drive amplifier?

A: Yes. The tap selector includes an 8Ω bypass setting that disables the transformer for direct-coupled 8Ω operation.

Q: Is the FAP63TUC-W suitable for high-humidity ceilings?

A: Yes. The mounting hardware contains no metal screws in the dog-leg mechanism, preventing rust-related failures common with conventional speaker hardware in high-humidity ceiling environments.

Q: How many speakers come per order?

A: The FAP63TUC-W is sold in pairs; each order includes two matched speakers.
