Atlas Sound 51-8 – Economical Steel Baffle 8" UL Listed
Atlas Sound 51-8 – Economical Steel Baffle 8" UL Listed is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound 51-8 – Economical Steel Baffle 8" UL Listed
Product Overview

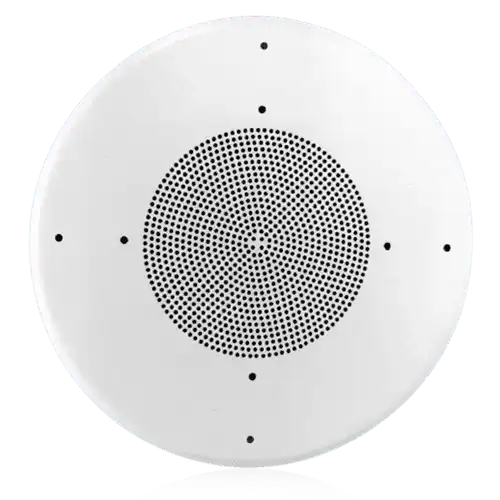

The Atlas Sound 51-8 is an 8" economical steel baffle designed for professional and cost-efficient installation of 8" (203mm) loudspeakers in commercial audio systems. Constructed of one-piece cold-rolled steel with an attractive white finish, the 51-8 provides a clean, vibration-free mounting solution compatible with a wide range of enclosures and mounting rings. It carries a UL 1480 safety listing for added assurance in commercial AV deployments.
Product Description
The Atlas Sound 51-8 Economical Steel Baffle offers AV integrators a reliable, low-cost solution for mounting 8" speakers in ceiling or enclosure applications. The one-piece CRS construction eliminates the flex points that can cause unwanted vibration and rattle over time, keeping speaker performance consistent and installation solid. The white powder finish gives a clean, finished appearance appropriate for commercial environments including offices, retail spaces, and educational facilities. Speaker hardware mounts directly to the baffle using standard speaker mounting screws, keeping installation straightforward. The 12 3/4" (323.9mm) outer diameter is compatible with a broad selection of AtlasIED enclosures and mounting rings including the P77-8, P78-8, and other standard 8" ring accessories. The 51-8 carries a UL 1480 safety listing, meeting requirements for commercial loudspeaker installations. BAA and TAA compliance make it suitable for government-funded and institutional AV projects. An optional hydrophobic treatment coating is available for installations in humid environments. The 60-month warranty covers this baffle for five years from date of purchase.
Key Features
- One-Piece CRS Construction — Eliminates vibration and rattle for stable, long-term speaker performance.
- White Finish — Clean, professional appearance suited to commercial ceilings and enclosures.
- UL 1480 Listed — Meets safety requirements for commercial loudspeaker component installations.
- Wide Enclosure Compatibility — Mounts to a broad selection of AtlasIED and compatible enclosures and mounting rings.
- 12 3/4" Outer Diameter — Standard sizing for straightforward integration with 8" ring accessories.
- BAA and TAA Compliant — Appropriate for government and institutional procurement.
- Optional Hydrophobic Coating — Available for humid or moisture-prone installation environments.
- 60-Month Warranty — 5-year warranty backed by AtlasIED from date of purchase.
Technical Specifications
| Specification | Value |
|---|---|
| Speaker Size | 8" (203mm) |
| Outer Diameter | 12 3/4" (32.39 cm) |
| Construction | One-Piece Cold-Rolled Steel (CRS) |
| Finish | White |
| Safety Listed | UL 1480 |
| Shipping Weight | 1.25 lbs (0.57 kg) |
| Compliance | BAA, TAA |
| Warranty | 60 months from date of purchase |
At Creartion Networks, we do everything we can to create an excellent customer experience. This includes fast shipping and easy returns.
- Most in-stock orders placed Monday-Friday ship within 24-48 hours. General restrictions apply; please see our full shipping policy here.
- We offer a 30-day return policy from the delivery date on many products. Product restrictions apply. Restocking fees for the return of open-box items. Please see our full return policy here for more information.
