Atlas Sound 193-8-6 – 6" Deep Square Enclosure for 8" Speakers
Atlas Sound 193-8-6 – 6" Deep Square Enclosure for 8" Speakers is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound 193-8-6 – 6" Deep Square Enclosure for 8" Spe...
Product Overview

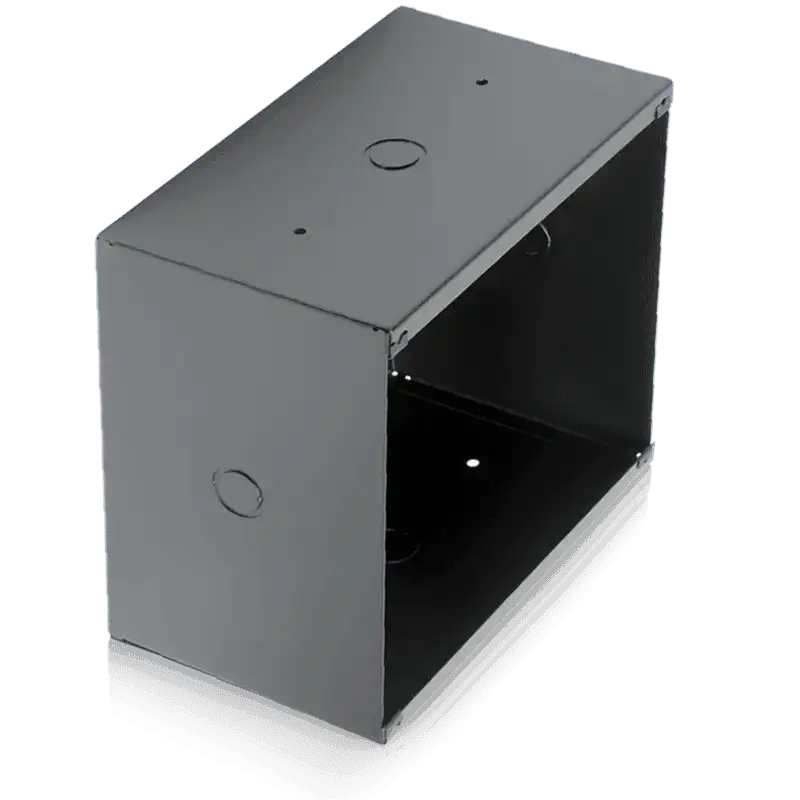

The Atlas Sound 193-8-6 is an economical square back enclosure designed for 8-inch loudspeakers in suspended tile ceiling installations. The 6-inch depth provides adequate internal volume for standard BGM and paging speaker deployments while keeping the above-ceiling profile compact. With UL listing, BAA and TAA compliance, and a welded CRS construction, it is a practical choice for commercial, institutional, and government facility projects.
Product Description
The 193-8-6 enclosure features welded cold-rolled steel construction with a black enamel finish and internal undercoating applied to minimize mechanical and acoustical resonances during operation. Four compound conduit knockouts are provided on the backplate for flexible cable routing in varying installation configurations. Slotted mounting holes are designed to accept AtlasIED 180 Series support rails, enabling efficient installation in suspended acoustical tile ceilings without additional hardware. The enclosure accommodates 8-inch (203 mm) diameter loudspeakers and supports standard screw-mount baffle installation across a wide range of AtlasIED and compatible baffles. The overall dimensions of 9-1/2 inches by 9-9/16 inches by 6 inches deep place it within the footprint of a standard 2-foot by 2-foot ceiling tile grid. The unit is UL listed and meets BAA and TAA requirements, making it appropriate for public-sector and federally funded installations. The paintable surface allows the enclosure to be finished to match specific ceiling environments when required by design.
Key Features
- UL Listed — Meets safety listing requirements for commercial ceiling speaker enclosures.
- BAA/TAA Compliant — Eligible for government and federally funded project procurement.
- Slotted Mounting Holes for 180 Series Rails — Simplifies installation in suspended tile ceiling systems without additional hardware.
- Four Compound Conduit Knockouts — Provides flexible wiring access from multiple directions.
- Welded CRS Construction — Durable steel enclosure with black enamel finish and resonance-reducing undercoating.
- Paintable Surface — Allows the enclosure to be finished to match project-specific ceiling requirements.
- 8" Speaker Compatibility — Accepts standard screw-mount baffles for 8-inch loudspeakers.
Technical Specifications
| Specification | Value |
|---|---|
| Height | 9 1/2" (24.20 cm) |
| Width | 9 9/16" (24.29 cm) |
| Depth | 6" (15.24 cm) |
| Speaker Compatibility | 8" (203 mm) diameter loudspeakers |
| Conduit Knockouts | 4 compound knockouts |
| Construction | Welded CRS, Black Enamel Finish |
| Safety Listing | UL Listed |
| Compliance | BAA, TAA |
| Shipping Weight | 3.50 lbs (1.59 kg) |
| Warranty | 60 months from date of purchase |
