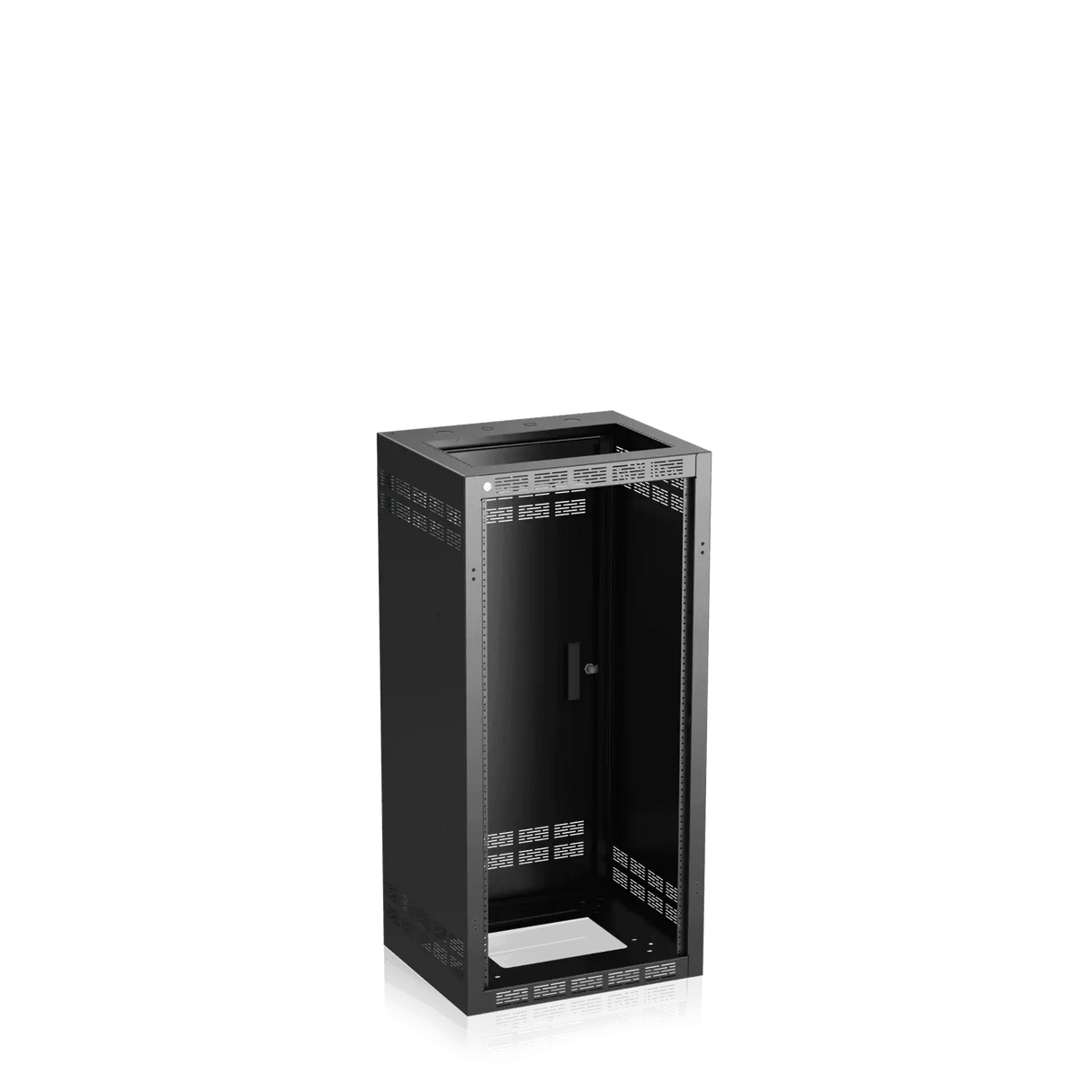

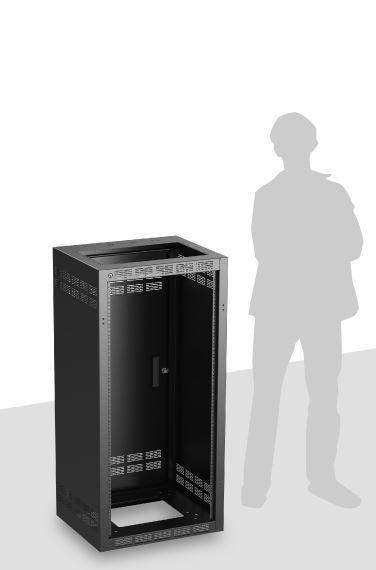

Atlas Sound 124-18 – 24RU Stand-Alone Floor Rack Cabinet

Product Overview

The AtlasIED 124-18 is a commercial-grade 24RU stand-alone floor rack cabinet built for AV equipment installations in permanent commercial spaces. Constructed from welded 16-gauge cold-rolled steel with UL 1678 listing, this floor-standing rack cabinet provides a secure, ventilated enclosure for rack-mount audio, video, and networking gear. The 18.5-inch depth accommodates most full-depth rack-mount equipment, and the fixed 10-32 tapped EIA-standard rails ensure broad compatibility with industry-standard hardware.

Product Description

The Atlas Sound 124-18 floor rack is part of the 100 Series Cabinet line, engineered for permanent commercial AV installations where security, airflow, and cable management are priorities. The cabinet arrives welded and assembled for immediate deployment, reducing on-site labor. The locking rear door uses quick-release spring hinges that rotate 180 degrees, allowing right- or left-hand opening to suit any room layout. A flush door handle and cylinder lock secure rear access, while a separate front door (ordered separately) can be keyed differently for added security.

The 100 Series cabinet features a 6RU top panel opening that accommodates the optional EFP Series fan kits for active cooling, or can be partially covered with the ISOPANEL for non-conductive cable access. Conduit arrays on top and bottom surface panels include standard 1-inch and concentric 1/2-inch to 3/4-inch knockouts, streamlining conduit runs to below-floor raceways or overhead cable trays. Perforated vents on the front, sides, and rear door promote passive convection cooling for heat-generating rack-mount amplifiers, processors, and network switches. The cabinet exterior is phosphate pre-treated and finished in textured black epoxy (#962) for durability in commercial environments. Rails are recessed 5/8 inch and manufactured to E.I.A. standards, supporting standard 10-32 rack hardware throughout all 24RU positions.

Key Features

• UL 1678 Listed — Meets UL safety requirements for rack enclosures, providing verified compliance for commercial and government installations.
• Welded 16-Gauge CRS Construction — Cold-rolled steel welded assembly delivers a rigid, durable enclosure that ships ready for immediate use without additional assembly of the main structure.
• Locking Rear Door with Reversible Hinging — Quick-release spring hinges allow the rear door to be configured for right- or left-hand opening, with a cylinder lock and flush handle for secure access.
• 6RU Top Panel Opening — Accommodates the optional EFP Series fan kits for active cooling, or can accept the ISOPANEL for managed cable entry or standard blank panels for a closed configuration.
• Multiple Conduit Knockout Arrays — Top, bottom, and flange conduit arrays with standard 1-inch and concentric 1/2-to-3/4-inch knockouts support flexible conduit routing to underfloor or overhead pathways.
• Perforated Vents on Three Sides — Front, side, and rear door perforations enable passive convection cooling, reducing the need for supplemental cooling in moderate-density racks.
• E.I.A.-Standard Fixed Rails — 12-gauge CRS rails tapped 10-32 and recessed 5/8 inch are manufactured to E.I.A. spacing standards, ensuring compatibility with standard rack-mount equipment.
• Pre-Drilled for IR Repeater — Cabinet accepts the M-1A Cabinet Mount IR Repeater without additional drilling, supporting AV control system integration.
• Textured Black Epoxy Finish — Phosphate pre-treatment and #962 textured black epoxy finish provide corrosion resistance and a professional appearance in commercial spaces.
• 5-Year Warranty — Backed by AtlasIED's 60-month warranty from date of purchase.

Typical Applications

• Boardroom AV equipment rack
• Conference room rack-mount installation
• House of worship audio/video equipment rack
• Government and municipal AV installations
• Multi-purpose room AV rack
• Training room equipment enclosure
• Broadcast studio rack installation
• All-hands room AV infrastructure

Technical Specifications

Frequently Asked Questions

Q: Does the 124-18 include a front door?

A: No. The front door is ordered separately. Refer to the 100 Series accessory chart for compatible front door model numbers. If ordered, the front door is keyed differently than the rear door for enhanced security.

Q: What rack-mount hardware does the 124-18 accept?

A: The rails are tapped 10-32 and manufactured to E.I.A. spacing standards, accepting standard 10-32 rack screws and cage nuts compatible with the vast majority of commercial rack-mount AV and networking equipment.

Q: Can fans be added for active cooling?

A: Yes. The 6RU top panel opening accepts the AtlasIED EFP Series fan kits for active cooling. The top opening can also be fitted with the ISOPANEL for non-conductive cable management or closed with standard blank panels.

Q: How does conduit routing work with this cabinet?

A: Conduit arrays are located on the top and bottom surface panels and flanges. Flange arrays include three standard 1-inch and two concentric 1/2-to-3/4-inch knockouts. Surface arrays include two standard 1-inch and two concentric knockouts, supporting flexible conduit routing to underfloor or overhead pathways.

Q: Is the rear door handing field-configurable?

A: Yes. The rear door is hung on quick-release spring hinges with threaded inserts pre-drilled on both the left and right sides of the rack, allowing right- or left-hand hinging without any additional drilling.

Q: What is the warranty on the AtlasIED 124-18?

A: The 124-18 is covered by AtlasIED's 60-month (5-year) limited warranty from the date of purchase.

Q: Is this cabinet UL Listed?

A: Yes. The AtlasIED 124-18 is UL 1678 Listed, making it suitable for commercial, government, and institutional AV installations that require verified safety compliance.
