Atlas Sound M1000 – 8" Sound Masking Speaker 70V 4W Transformer Black
Atlas Sound M1000 – 8" Sound Masking Speaker 70V 4W Transformer Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Atlas Sound M1000 – 8" Sound Masking Speaker 70V 4W Transforme...
Product Overview

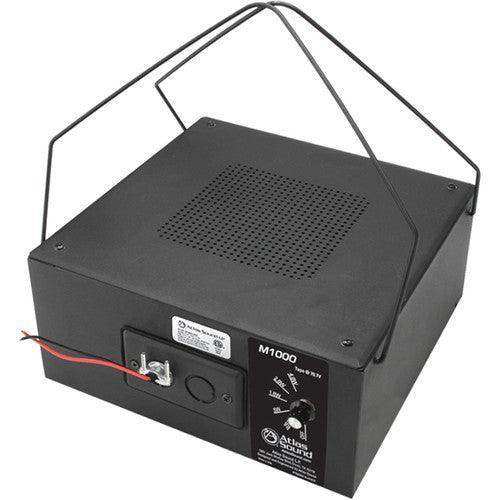

The Atlas Sound M1000 is an 8-inch dual cone sound masking speaker assembly designed for plenum-space deployment in commercial sound masking and speech privacy systems. It includes a 70.7V transformer with an external tap selector switch, a 734 cubic inch black square enclosure, and factory-installed EZ hang brackets that support upward, downward, or horizontal installation orientations. UL 1480 and UL 2043 listed, the M1000 is approved for use in air-handling (plenum) spaces and is the standard enclosure model in the Atlas Sound masking speaker line.
Product Description
The M1000 is a pre-assembled sound masking speaker that ships ready to install, with the 8-inch dual cone driver, 70.7V transformer, enclosure, baffle, and mounting hardware all included. The 734 cubic inch square enclosure provides the low frequency extension necessary for an accurate masking signal spectrum in plenum spaces—the enclosure volume directly affects masking system performance, and the M1000 is sized to deliver extended bass response without requiring supplemental EQ in most standard masking deployments. The 70.7V transformer uses an external tap selector switch with taps at 0.25, 0.5, 1, 2, and 4 watts for on-site level adjustment without rewiring. The EZ hang bracket system uses two collapsible plated hangers that fold flat for shipping and deploy quickly for upward, downward, or side-firing installation to meet plenum layout requirements. The input panel includes both knockouts and strain reliefs to accommodate rigid or flexible conduit, and the removable plate supports through-wiring for daisy-chain connections. An optional 78-inch suspension chain (part MCHAIN72) is available for hanging installations with height adjustment. Note that this product requires a separate masking generator and 70.7V amplifier to operate. Black epoxy finish. A 60-month warranty is included.
Key Features
- Complete Pre-Assembled Unit — Includes 8" dual cone speaker, 70.7V transformer, 734 cu in enclosure, baffle, and all mounting hardware.
- External Tap Selector Switch — 5 power taps (0.25, 0.5, 1, 2, 4W) for on-site level adjustment without rewiring.

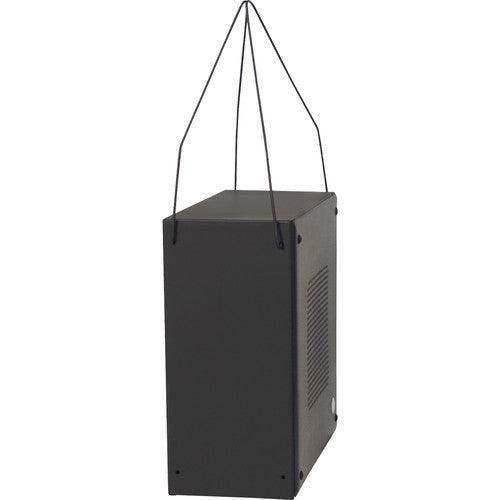

- EZ Hang Bracket System — Collapsible plated hangers support upward, downward, or horizontal plenum installation.
- 734 cu in Enclosure — Sized for extended low frequency response critical to accurate masking signal reproduction.
- UL 1480 & UL 2043 Listed — Safety listed for use in air-handling (plenum) ceiling spaces.
- Conduit-Ready Input Panel — Knockouts and strain reliefs accommodate rigid or flexible conduit and through-wiring.
- Black Epoxy Finish — Blends with open ceiling plans; white version available separately.
Technical Specifications
| Specification | Value |
|---|---|
| Model | M1000 |
| Loudspeaker | 8" Dual Cone |
| Sensitivity | 97 dB Peak, 94 dB Average |
| Frequency Response | 100 Hz – 10 kHz |
| System Voltage | 70.7V |
| Power Taps | 0.25, 0.5, 1, 2, 4 Watts |
| Enclosure Volume | 734 cu in |
| Width | 11 9/16" (29.37 cm) |
| Finish | Black Epoxy |
| Safety Listed | UL 1480, UL 2043 |
| Warranty Period | 60 months from date of purchase |
