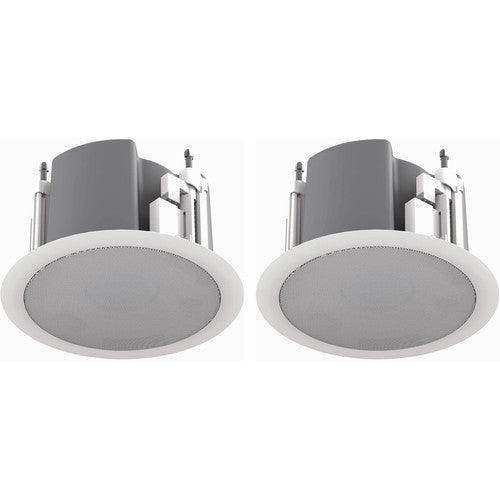

Atlas Sound FAP33T-W – 3" In-Ceiling Speaker 70V/100V 16W Transformer Pair White

Product Overview

The Atlas Sound FAP33T-W is a 3-inch full-range in-ceiling loudspeaker with a 70.7V/100V transformer, sold in pairs in white finish. Part of the AtlasIED Strategy III Series, it combines wide 135-degree dispersion, an integrated 70V/100V/8-ohm transformer, and the patented Safety First Mounting System (SFMS) for tool-free installation in commercial distributed audio systems. It is the right choice for retail stores, restaurants, hotels, corporate spaces, and other commercial applications requiring clear speech intelligibility and uniform background music coverage.

Product Description

The FAP33T-W is a 3-inch full-range ceiling loudspeaker designed for commercial 70V and 100V distributed audio systems. The integral transformer provides selectable power taps accessible via a front-mounted selector switch, with a direct 8-ohm bypass setting available for low-impedance operation. The improved waveguide design delivers up to 135 degrees of dispersion, providing wider coverage per speaker compared to previous generation models, which reduces the total number of speakers required to achieve uniform coverage and lowers installation cost. A ported enclosure optimizes low-frequency response for a 3-inch driver, with the tuning port designed specifically to extend bass definition without excessive coloration. The patented Safety First Mounting System (SFMS) uses integrated t-handles to tighten mounting tabs without a drill or screwdriver, and includes a torque-limiting mechanism that prevents tab damage from over-tightening during installation. The SFMS is reported to reduce installation time by up to 60 percent compared to conventional dog-leg mounting systems. A removable 4-pole euro-style (Phoenix) connector allows cable pre-wiring and easy daisy-chaining of additional Strategy Series speakers or subwoofers. Corrosion-free hardware eliminates the rusting problems common with steel screws in humid environments. The FAP33T-W is safety listed to both UL1480 (fire alarm speakers) and UL2043 (air plenum rated), making it suitable for above-ceiling plenum installations. A C-ring/V-rail tile bridge is included for installation in drop-tile or drywall ceilings. The 5-year limited warranty covers both units in the pair. Priced per pair.

Key Features

• 70.7V/100V/8Ω Operation — Transformer-equipped for 70V and 100V distributed systems with direct 8-ohm bypass setting.

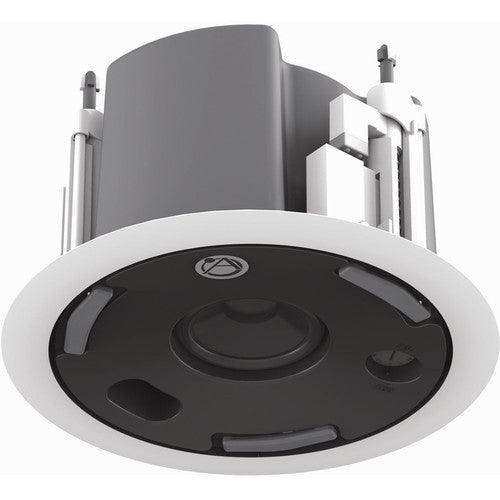

• Front-Mounted Tap Selector — Easily accessible power tap selection for system tuning without removing the speaker from the ceiling.
• Patented Safety First Mounting System (SFMS) — Tool-free installation using integrated t-handles with torque limiting; reduces installation time by up to 60%.
• 135° Dispersion — Wide coverage angle reduces speakers required per installation for uniform sound distribution.
• Ported Enclosure — Low-frequency tuning port enhances bass definition for a 3-inch driver in commercial audio applications.
• 4-Pole Phoenix Connector — Removable euro-style connector enables cable pre-wiring and daisy-chaining of additional Strategy Series speakers or subwoofers.
• UL1480 and UL2043 Listed — Safety listed for fire alarm applications and above-ceiling plenum installation.
• Corrosion-Free Hardware — No metal screws on mounting tabs; eliminates rust failures in humid ceiling environments.
• C-Ring/V-Rail Tile Bridge Included — Mounting hardware for drop-tile or drywall ceilings included in the box.
• 5-Year Limited Warranty — Five-year coverage on both speakers in the pair.
• Sold as a Pair — Price and packaging are per pair of white FAP33T-W speakers.

Technical Specifications
