ASHLY SP8.1P 8" Extended Dynamics Passive Flyable or Floor Standing Subwoofer (Black)
ASHLY SP8.1P 8" Extended Dynamics Passive Flyable or Floor Standing Subwoofer (Black) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
ASHLY SP8.1P 8" Extended Dynamics Passive Flyable or Floor Sta...
Product Overview
The Ashly SP8.1P is a compact 8-inch Extended Dynamics passive subwoofer designed for both floor-standing and flyable commercial AV deployments. With 150W continuous power handling at 8 Ω, a low-frequency floor of 43 Hz, and 95 dB sensitivity, the SP8.1P delivers efficient, clean bass reinforcement for smaller commercial venues, conference rooms, and portable PA applications. Top and side threaded pole receptacles allow IS column speakers to be mounted directly on the sub, and M10 bolt holes on the enclosure support optional hanging hardware for flyable configurations in houses of worship, auditoriums, and multi-purpose rooms. Braced 12-ply birch construction, a perforated steel grille, and recessed side handles complete its commercial-grade build.
Product Description
The SP8.1P fills the gap between full-range wall-mount speakers and larger 12-inch subwoofers for commercial AV integrators who need compact, efficient low-frequency reinforcement. Its Extended Dynamics 8" ferrite woofer in a braced 12-ply birch enclosure produces clean, defined bass from 43 Hz through 180 Hz, making it an appropriate partner for Ashly IS2.8P or IS3.8P column speakers where the IS speaker's limited low-frequency reach needs augmentation without the physical footprint of the SP12.1P.
The top and side pole receptacles accept ISPM1B and ISPM6B speaker poles for a complete portable PA-on-a-stick system, while the M10 bolt holes allow the SP8.1P to be flown from rigging hardware in permanent installations. Dual Euroblock and Speakon/NL4 connectors support both installation and live sound wiring preferences. Speaker Voice Presets for Ashly Protea and AquaControl DSP processors are available for download. Available in black (SP8.1P) and white (SP8.1PW).
Key Features
- 8" Extended Dynamics Woofer — Ferrite 8-inch driver handles 150W continuous at 8 Ω.
- 43 Hz Low-Frequency Floor — Fills the bass range for smaller commercial spaces without the footprint of a 12-inch subwoofer.
- 95 dB Sensitivity — High efficiency reduces amplifier load in multi-speaker distributed installations.
- Flyable Design — M10 bolt holes accept optional hanging hardware for suspended installations.
- Top and Side Pole Receptacles — Mount IS column speakers directly on the subwoofer for a portable PA system.
- Braced 12-Ply Birch Enclosure — Rigid construction minimizes resonance for clean, accurate bass reproduction.

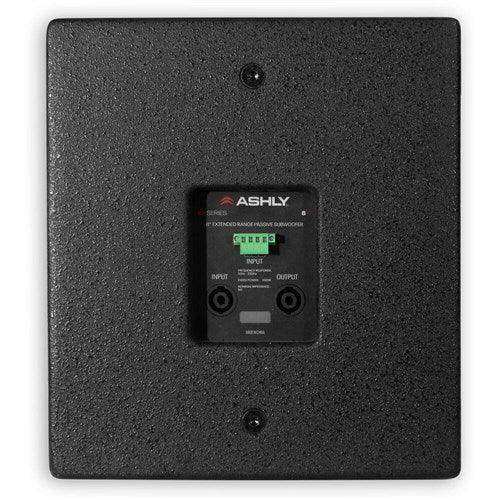

- Dual Euroblock + Speakon/NL4 Connectors — Versatile input connectivity for installed and portable use.
- DSP Voice Presets — Speaker Voice Presets for Ashly Protea and AquaControl processors available for download.
Typical Applications
- Conference room and training room low-frequency augmentation
- House of worship flyable subwoofer
- Portable PA-on-a-stick with IS column speakers
- Multipurpose room and auditorium bass reinforcement
- Restaurant and retail background music with extended bass
- Corporate meeting room and all-hands space audio
Technical Specifications
| Specification | Value |
|---|---|
| Woofer Driver Size | 8" ferrite |
| Power Handling (Continuous) | 150W @ 8 Ω |
| Impedance | 8 Ω |
| Frequency Response | 43 Hz – 180 Hz |
| Sensitivity | 95 dB |
| Connectors | 2x Euroblock, Speakon/NL4 |
| Pole Mount | Top and side threaded receptacles |
| Fly Points | M10 bolt holes for optional hanging hardware |
| Enclosure | Braced 12-ply birch plywood, perforated steel grille |
| Dimensions (H x W x D) | 13.25" x 12" x 15.63" |
| Color | Black |
Frequently Asked Questions
- How does the SP8.1P compare to the SP12.1P?
- The SP8.1P is smaller and lighter with a 150W / 43 Hz rating, suited for compact commercial spaces or portable use. The SP12.1P uses a 12" driver, handles 350W, and reaches 39 Hz, making it better suited to larger venues and higher-output requirements.
- Can the SP8.1P be flown or suspended?
- Yes. The SP8.1P has M10 bolt holes that accept optional hanging hardware for flyable deployment in auditoriums, houses of worship, and other venues where floor placement is not practical.
- Which IS column speakers work with the SP8.1P?
- Both the IS2.8P and IS3.8P column speakers are compatible. Use the ISPM1B (1-foot) or ISPM6B (6-foot) speaker pole to mount the column on the subwoofer's top pole receptacle.
- Does the SP8.1P require active crossover management?
- Yes. The SP8.1P is a passive loudspeaker requiring an external amplifier with DSP crossover capability. Ashly Protea and AquaControl DSP amplifiers provide Speaker Voice Presets for automated crossover and EQ configuration.
- Is the SP8.1P available in white?
- Yes. The SP8.1PW is the white-finish version with identical specifications.
