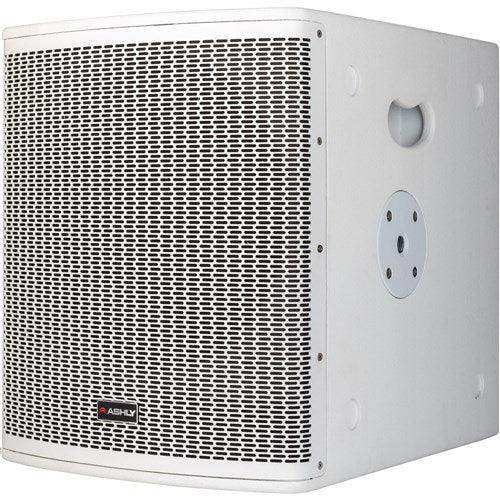

ASHLY SP12.1PW 12" Extended Dynamics Passive Subwoofer (White)

Product Overview

The Ashly SP12.1PW is the white-finish version of the SP12.1P Extended Dynamics passive subwoofer, delivering 350W continuous power handling at 8 Ω with low-frequency extension from 39 Hz. It pairs directly with Ashly IS column speakers and AW surface-mount speakers in commercial AV installations where white-finish hardware is specified. Top and side threaded pole mount receptacles allow IS column speakers to be mounted above the sub for a portable PA-on-a-stick or permanent venue system. Its 12-ply braced birch enclosure, steel mesh grille, and dual Euroblock/Speakon connectors make it equally suitable for floor-standing installation and event deployment.

Product Description

The SP12.1PW shares the same Extended Dynamics 12" ferrite woofer and braced 12-ply birch plywood enclosure as the black SP12.1P, finished in white for installations where aesthetic consistency with white-spec room components is required. Recessed side carry handles, top and side pole receptacles, and a steel mesh/foam grille are all retained in the white variant.

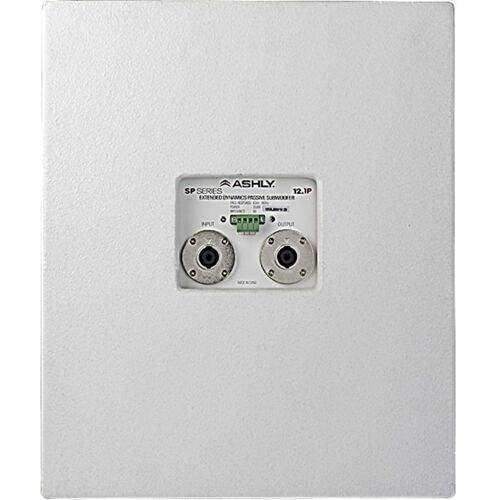

Input wiring uses dual Euroblock and Speakon/NL4 connectors for versatile connection in both installed and portable setups. The SP12.1PW is optimized for use with Ashly Protea and AquaControl DSP amplifiers, with downloadable Speaker Voice Presets that configure crossover and EQ settings for seamless integration with IS column speakers. Pair with the IS3.8PW white column speaker and an ISPM6B speaker pole for a complete white-finish commercial sound system.

Key Features

• 12" Extended Dynamics Woofer — Ferrite 12-inch driver handles 350W continuous at 8 Ω.
• 39 Hz Low-Frequency Extension — Covers bass-critical content for music playback, live events, and full-range commercial audio.
• 99 dB Sensitivity — High efficiency for low amplifier power demand in commercial systems.
• Top and Side Pole Receptacles — Mount IS column speakers directly atop the subwoofer in PA-on-a-stick or installed configurations.
• Recessed Side Carry Handles — Convenient transport for portable and multi-venue deployments.
• Braced 12-Ply Birch Enclosure — Rigid construction minimizes resonance for consistent acoustic performance.
• Dual Euroblock + Speakon/NL4 Connectors — Flexible wiring options for installation and live sound.
• White Finish — Matches white IS column speakers and architectural interiors.

Typical Applications

• House of worship with white-finish IS column speaker systems
• Corporate event and all-hands room low-frequency reinforcement
• Multipurpose room and auditorium sound systems
• Restaurant and retail background music with extended bass
• Portable white PA-on-a-stick configurations
• Commercial conference room full-range systems

Technical Specifications

Frequently Asked Questions

What is the difference between the SP12.1P and SP12.1PW?

The SP12.1PW and SP12.1P are technically identical. The only difference is the white polymer finish on the SP12.1PW vs. the black finish on the SP12.1P.

Which column speakers pair with the SP12.1PW?

The SP12.1PW pairs with the IS2.8PW and IS3.8PW white column speakers. Use the ISPM1B or ISPM6B speaker pole to mount the column on the top pole receptacle of the subwoofer.

Do I need an active crossover with the SP12.1PW?

Yes. The SP12.1PW is a passive subwoofer requiring an external amplifier with DSP crossover capability. Ashly Protea and AquaControl DSP amplifiers provide downloadable Speaker Voice Presets that configure crossover and EQ settings automatically.

Can the SP12.1PW be used as a floor-standing subwoofer without a pole-mounted speaker?

Yes. The SP12.1PW operates as a standalone passive subwoofer and can be used in a corner or under a cabinet to supplement the low-frequency response of Ashly AW wall-mount speakers in any BGM environment.
