ASHLY SP12.1P 12" Extended Dynamics Passive Subwoofer (Black)

Product Overview

The Ashly SP12.1P is a 12-inch Extended Dynamics passive subwoofer engineered to complement Ashly IS column speakers and AW surface-mount speakers in commercial AV installations. Rated at 350W continuous power handling at 8 Ω, it delivers low-frequency reinforcement from 39 Hz with a sensitivity of 99 dB, making it efficient to drive with standard Ashly commercial amplifiers. The SP12.1P features threaded top and side pole mount receptacles, enabling IS column speakers to be mounted directly on the sub for a complete PA-on-a-stick or system-in-a-venue configuration. Designed for both floor-standing and flyable deployments, it supports houses of worship, corporate event spaces, and multipurpose rooms requiring extended bass response.

Product Description

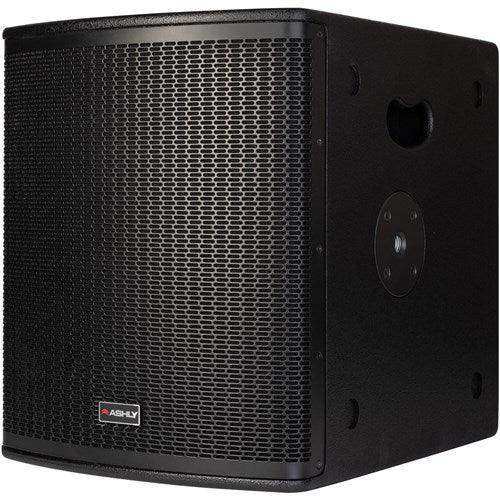

The SP12.1P houses a 12" ferrite Extended Dynamics woofer in a braced, 12-ply birch plywood enclosure with a steel mesh and foam grille. The braced birch construction resists resonance and adds structural rigidity for the rigors of both installed and portable deployment. Recessed side carry handles and threaded top and side pole-mount receptacles make positioning and transport straightforward. A 35mm pole cup on top accepts ISPM1B and ISPM6B speaker poles for mounting IS column speakers at ear level above the sub, while the side pole receptacle offers an alternative orientation for installations where top mounting is impractical.

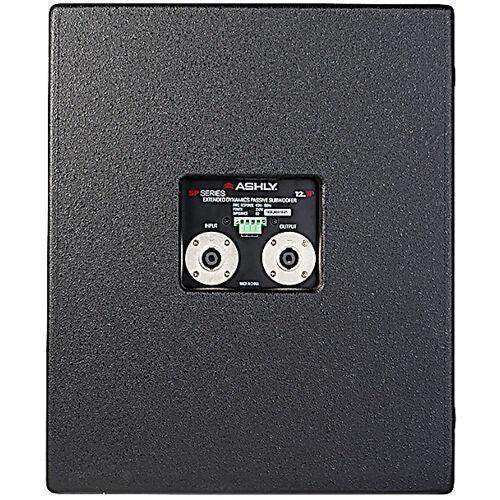

Input connectivity is handled via dual Euroblock and Speakon/NL4 connectors, supporting flexible wiring in both fixed installation and touring-style event deployments. Speaker Voice Presets for Ashly Protea and AquaControl DSP processors are available for download, enabling a calibrated, matched system response when paired with IS column speakers and Ashly amplification. The SP12.1P is available in black (SP12.1P) and white (SP12.1PW).

Key Features

• 12" Extended Dynamics Woofer — Ferrite 12-inch driver handles 350W continuous at 8 Ω for high-output commercial low-frequency reinforcement.
• 39 Hz Low-Frequency Extension — Delivers usable bass from 39 Hz, suitable for speech reinforcement, music playback, and live event support.
• 99 dB Sensitivity — High efficiency requires less amplifier power for the same output level, reducing system cost and heat.
• Top and Side Pole Receptacles — Mount IS column speakers directly on the subwoofer for a compact, portable PA system.
• Recessed Side Carry Handles — Ergonomic handles simplify transport between venues and events.
• Braced 12-Ply Birch Construction — Rigid, resonance-resistant enclosure for consistent acoustic performance.
• Dual Euroblock + Speakon/NL4 Connectors — Flexible wiring options for both installation and live sound applications.
• DSP Voice Presets — Compatible presets for Ashly Protea and AquaControl amplifiers available for download.

Typical Applications

• House of worship with IS column speaker system
• Corporate event and all-hands room low-frequency reinforcement
• Multipurpose room and auditorium sound systems
• Restaurant and retail background music with extended bass
• Portable PA-on-a-stick with IS2.8P or IS3.8P column speakers
• Conference room full-range system with Ashly DSP amplification

Technical Specifications

Frequently Asked Questions

Which IS column speakers pair with the SP12.1P?

The SP12.1P is designed to work with the IS2.8P and IS3.8P column speakers. Use the ISPM1B (1-foot) or ISPM6B (6-foot) speaker pole to mount the column on the sub's top pole receptacle.

Does the SP12.1P require an active crossover or built-in amplifier?

No. The SP12.1P is a passive loudspeaker that requires an external amplifier. A high-pass filter for the IS column speakers and a low-pass filter for the subwoofer should be applied via DSP. Ashly Protea and AquaControl DSP amplifiers provide Speaker Voice Presets that handle this automatically.

Can the SP12.1P be flown or suspended?

The SP12.1P supports floor-standing use and pole mounting. Ashly also offers optional hanging hardware for flyable deployments in venues such as auditoriums and houses of worship.

What amplifier power is recommended for the SP12.1P?

The SP12.1P handles 350W continuous at 8 Ω. Ashly recommends pairing it with a compatible Ashly Protea or AquaControl DSP-enabled amplifier with sufficient headroom. Speaker Voice Presets are available for download.

Is the SP12.1P available in white?

Yes. The SP12.1PW is the white-finish version of the same subwoofer with identical specifications, suitable for installations where black hardware is not preferred.
