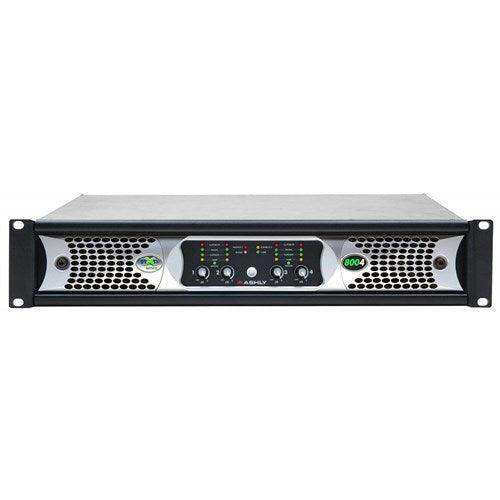

ASHLY NXP8004D Amplifier plus OPDante Option Card

Product Overview

The Ashly NXP8004D is a four-channel networkable power amplifier with integrated Protea DSP and a factory-installed Dante option card, delivering 800 watts per channel across all load configurations — 70V, 100V constant-voltage, and 2, 4, or 8 ohm low-impedance. This Dante-enabled commercial power amplifier is purpose-built for distributed audio installations in commercial facilities, houses of worship, convention centers, and corporate environments where network-based audio routing and onboard DSP are required in a single rack-mount unit. The consistent 800W/ch output rating across all impedances simplifies system design for multi-zone installations with mixed speaker loads. The NXP8004D pairs the full Protea DSP feature set with Ashly's Ethernet-based control platform, enabling remote configuration, monitoring, and preset management from any networked workstation.

Product Description

The Ashly NXP8004D networkable amplifier with DSP commercial install delivers a practical mid-power platform for system integrators requiring Dante audio networking, comprehensive DSP, and multi-mode output in a 4-channel rack-mount chassis. The factory-installed OPDante option card enables native Dante audio routing over standard Ethernet, eliminating dedicated analog audio runs between source equipment and the amplifier. Protea DSP provides full signal processing — dynamics, parametric EQ, crossover, matrix mixing, delay, and metering — all manageable via Ashly's Protea NE software or the free Ashly Remote iPad app over the same network. Each channel is independently configurable for 70V or 100V constant-voltage distribution or low-impedance operation at 2, 4, or 8 ohms, making the NXP8004D adaptable across diverse speaker inventories within a single installation. The 800W/ch rating at all load configurations makes capacity planning straightforward: designers can calculate zone coverage without accounting for impedance-based power variation. The Class-D switching amplifier topology with switch-mode power supply provides high efficiency in a lightweight chassis, well-suited for permanent rack-mount installations in commercial spaces. A built-in real-time clock with event scheduler automates preset recalls, standby transitions, and power-on delays based on programmed schedules — a significant operational benefit in corporate environments with predictable daily usage patterns. FIR filter support enables loading of speaker manufacturer tuning files for precision driver alignment. Aux preamp line outputs allow the NXP8004D to feed additional amplifiers downstream when system expansion is required. Fault condition logic outputs per channel integrate with building management systems for proactive fault notification. Neutrik Combo XLR/TRS inputs, speakON speaker outputs, and powerCON AC mains ensure secure, professional connections appropriate for permanent commercial installation.

Key Features

• Factory-Installed Dante Option Card — Native Dante audio networking over Ethernet; eliminates analog audio cable runs between sources and the amplifier rack.
• 800 W/Ch Across All Loads — Consistent output at 70V, 100V, 8 ohm, 4 ohm, and 2 ohm simplifies multi-zone system design with mixed speaker loads.
• 4-Channel Multi-Mode Output — Each channel independently configurable for constant-voltage (70V/100V) or low-impedance (2/4/8 ohm) operation via rear DIP switches.
• Integrated Protea DSP — 32-bit SHARC processing at 48kHz or 96kHz; includes dynamics, PEQ, matrix mixer, crossover, delay, metering, and FIR filter support.
• Protea NE Software Control — Full Ethernet-based remote control, monitoring, and preset management from any networked workstation.
• Ashly Remote iPad App — Wireless control of DSP parameters including gain, mute, matrix, A/B source select, PEQ, and metering over the network.
• Real-Time Clock with Event Scheduler — Automated execution of presets, standby, and power-on tasks on programmable daily schedules.
• FIR Filter Ready — Accepts .fir and .csv speaker tuning files for precision system alignment.
• Ashly EMS Energy Management — Automatic sleep mode draws less than 1 watt of idle power; defeatable.
• Fault Condition Logic Outputs — Per-channel outputs support integration with building management and monitoring systems.

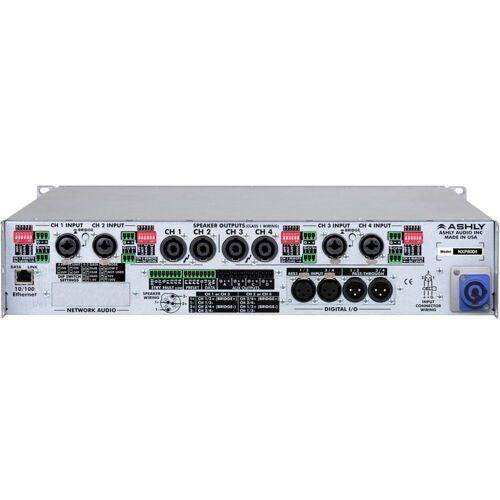

• Neutrik Connectors Throughout — Combo XLR/TRS inputs, speakON outputs, and powerCON AC mains for permanent installation reliability.
• 5-Year Limited Warranty — Manufactured in the United States; TAA compliant, RoHS and cTUVus certified.

Typical Applications

• Corporate boardroom and executive conference room AV
• House of worship distributed audio systems
• Convention center and ballroom multi-zone audio
• Commercial meeting space and all-hands room systems
• Government and institutional fixed installation
• Training room and multi-purpose room audio
• Auditorium and performing arts distributed audio

Technical Specifications

Frequently Asked Questions

What AV control systems is the NXP8004D compatible with?

The NXP8004D supports Ethernet control via Protea NE software, serial control via Ashly WR-5 and RD-8C remotes, and third-party RS-232 control using the optional INA-1 converter. A Q-SYS plugin for Protea is available for Q-SYS platform integration.

Does the NXP8004D support Dante audio networking?

Yes. The NXP8004D ships with a factory-installed OPDante option card for native Dante audio routing over standard Ethernet, configured using Audinate's Dante Controller alongside Ashly's Protea NE software.

Why does the NXP8004D show 800W/ch across all impedances?

The NXP8004D is designed with a consistent 800W/ch output regardless of load impedance (2, 4, 8 ohm, 70V, or 100V). This simplifies system design for multi-zone installations where different speaker loads are used across channels.

Can the NXP8004D be controlled wirelessly?

Yes. The free Ashly Remote iPad app provides wireless network control of DSP functions including gain, mute, matrix routing, A/B source select, PEQ adjustments, and metering over the same Ethernet network used for Dante audio.

What is the NXP8004D's warranty?

The NXP8004D carries a 5-year limited warranty and is manufactured by Ashly Audio in Webster, New York, USA. It is TAA compliant and certified RoHS and cTUVus.

Does the NXP8004D have an event scheduler?

Yes. A built-in real-time clock with event scheduler automates preset recalls, standby mode, and power-on delays on time-based schedules, programmed via PneS software and stored in the amplifier.
