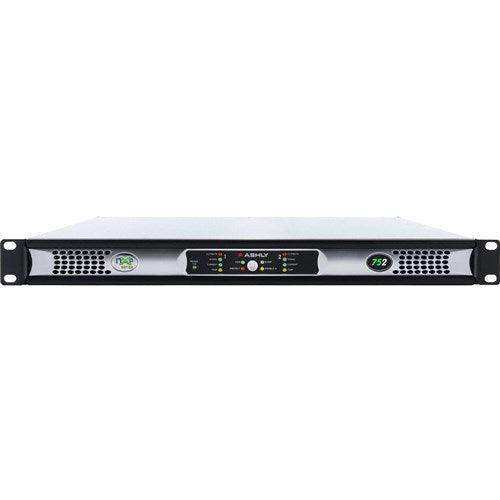

ASHLY NXP754D Amplifier plus OPDante Option Card

Product Overview

The Ashly NXP754D is a four-channel networkable power amplifier with integrated Protea DSP and a factory-installed Dante option card, delivering 75 watts per channel across all load configurations — 25V, 70V, 100V constant-voltage, and 2, 4, or 8 ohm low-impedance. This compact Dante-enabled commercial power amplifier is designed for distributed audio in smaller commercial spaces: conference rooms, boardrooms, training rooms, and light commercial installations where network audio transport, onboard DSP, and 25V speaker support are all required in a space-efficient 1U rack-mount chassis. The NXP754D delivers the complete Protea DSP feature set — event scheduling, FIR filter support, iPad wireless control — in the most compact multi-mode amplifier platform Ashly offers with Dante integration.

Product Description

The Ashly NXP754D networkable amplifier with DSP commercial install is built on Ashly's 1U nX 75 platform, integrating Dante audio networking, Protea DSP processing, and four-channel multi-mode amplification in a space-efficient chassis. The factory-installed OPDante option card provides native Dante audio routing over standard Ethernet, suitable for Dante-based AV systems in boardrooms, conference rooms, and small commercial facilities. A key differentiator of the NXP754D is its support for 25V constant-voltage operation across all four channels, making it deployable with 25V speaker systems common in smaller commercial spaces. Each channel is independently configurable for 25V, 70V, 100V, or low-impedance operation at 2, 4, or 8 ohms via rear DIP switches. Protea DSP delivers comprehensive signal processing — dynamics, PEQ, crossover, matrix mixing, delay, metering, and FIR filter support — all configurable remotely via Protea NE software over Ethernet. A built-in real-time clock with event scheduler automates preset recalls, standby transitions, and power-on delays on programmable daily schedules, removing the need for manual operation in facilities with regular usage patterns. The Ashly Remote iPad app provides wireless control of DSP parameters over the network. Aux preamp line outputs allow the NXP754D to feed additional downstream amplifiers if additional zones are needed. Fault condition logic outputs per channel support integration with building management systems for fault notification. The Ashly EMS provides automatic sleep mode drawing less than 1 watt during idle periods. The NXP754D is manufactured in the United States, TAA compliant, and carries a 5-year limited warranty.

Key Features

• Factory-Installed Dante Option Card — Native Dante audio networking over Ethernet, enabling lossless digital audio routing from Dante sources on the network.
• 25V Constant-Voltage Support — All four channels support 25V, 70V, and 100V constant-voltage operation, accommodating 25V speaker systems in compact commercial spaces.
• 75 W/Ch Across All Loads — Consistent 75W/ch at 25V, 70V, 100V, 8 ohm, 4 ohm, and 2 ohm for straightforward multi-zone capacity planning.

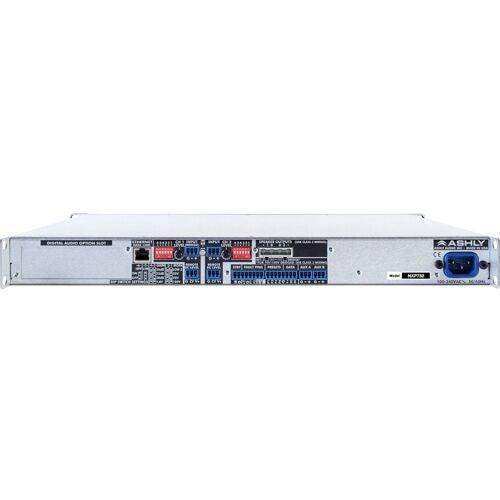

• 4-Channel Multi-Mode Output — Each channel independently configurable for constant-voltage (25V/70V/100V) or low-impedance (2/4/8 ohm) via rear DIP switches.
• Integrated Protea DSP — 32-bit SHARC processing; dynamics, PEQ, matrix mixing, crossover, delay, metering, and FIR filter support.
• Protea NE Software Control — Full Ethernet-based remote control, monitoring, and preset management from any networked workstation.
• Ashly Remote iPad App — Wireless DSP control including gain, mute, matrix, A/B source select, PEQ, and metering.
• Real-Time Clock with Event Scheduler — Automated preset recalls, standby, and power-on tasks on programmable daily schedules.
• FIR Filter Ready — Accepts .fir and .csv speaker tuning files for precision system alignment.
• Ashly EMS Energy Management — Automatic sleep mode draws less than 1 watt; defeatable.
• 5-Year Limited Warranty — Manufactured in the United States; TAA compliant, RoHS and cTUVus certified.

Typical Applications

• Boardroom and conference room Dante AV systems with 25V speakers
• Commercial meeting space and training room distributed audio
• Government space and institutional installations with 25V speaker systems
• Multi-zone commercial spaces requiring Dante networking and Protea DSP
• House of worship smaller zone or overflow room audio

Technical Specifications

Frequently Asked Questions

Does the NXP754D support 25V constant-voltage speakers?

Yes. The NXP754D supports 25V, 70V, and 100V constant-voltage operation on all four channels, making it suitable for installations using 25V speaker systems common in compact commercial spaces.

Does the NXP754D include both Dante and DSP?

Yes. The NXP754D ships with a factory-installed OPDante card for Dante audio networking and full Protea DSP processing (32-bit SHARC), making it a fully integrated network amplifier platform.

What AV control systems is the NXP754D compatible with?

The NXP754D supports Ethernet control via Protea NE software, serial control via Ashly WR-5 and RD-8C remotes, and third-party RS-232 control with the optional INA-1 converter. A Q-SYS plugin for Protea is available.

Can the NXP754D be controlled wirelessly?

Yes. The free Ashly Remote iPad app provides wireless network control of DSP functions including gain, mute, matrix routing, A/B source select, PEQ, and metering.

What is the NXP754D warranty?

The NXP754D carries a 5-year limited warranty and is manufactured in the United States. It is TAA compliant and certified RoHS and cTUVus.
