ASHLY NXP754 Network Power Amplifier 4x75 watts @ 2 Ohms with Protea DSP

Product Overview

The Ashly NXP754 is a four-channel networkable power amplifier with integrated Protea DSP, delivering 75 watts per channel across all load configurations — 25V, 70V, 100V constant-voltage, and 2, 4, or 8 ohm low-impedance. Designed for multi-zone distributed audio in commercial AV installations, the NXP754 provides full Protea DSP processing and Ethernet-based remote control across four independent zones, with 25V constant-voltage support for smaller speaker systems. Without a Dante option card, the NXP754 accepts analog audio inputs, making it a cost-effective four-zone DSP amplifier for installations where network audio transport is not required but onboard processing and network monitoring are. The NXP754 is the entry-level output tier in the four-channel NXP series lineup, well suited for small meeting rooms, retail locations, classrooms, and compact commercial installations with moderate per-zone power needs.

Product Description

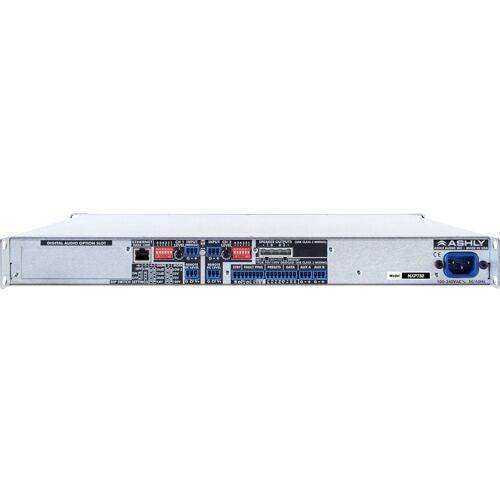

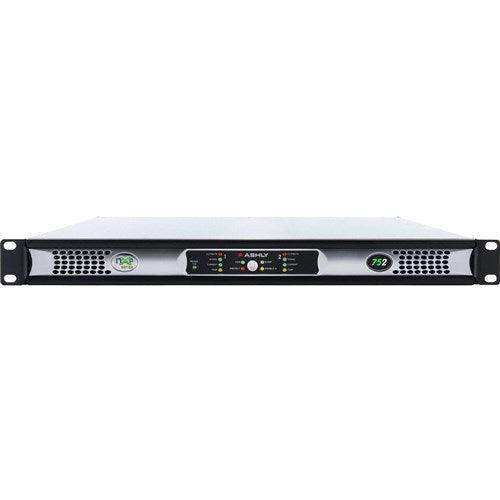

The Ashly NXP754 networkable amplifier with DSP delivers four-channel multi-mode amplification at 75W/ch with full Protea DSP and Ethernet-based network control in a 1U rack-mount chassis. Each of the four channels is independently configurable for 25V, 70V, or 100V constant-voltage or 2, 4, or 8 ohm low-impedance operation via rear panel DIP switches. The consistent 75W/ch output across all load types — including 25V — makes the NXP754 suitable for installations using compact 25V speaker systems in meeting rooms, classrooms, and retail spaces. Protea DSP provides comprehensive per-channel signal processing including dynamics, PEQ, crossover, matrix mixing, delay, metering, and FIR filter support, all accessible via Ashly's Protea NE software over Ethernet or the free Ashly Remote iPad app over Wi-Fi. The built-in real-time clock with event scheduler automates preset recalls, standby transitions, and power-on delays on programmable daily schedules. Aux preamp line outputs per channel allow the NXP754 to feed additional downstream amplifiers for system expansion in larger installations. Four individual front panel level controls and status indicators allow per-zone monitoring and adjustment. The Ashly EMS provides automatic sleep mode drawing less than 1 watt during idle periods. The NXP754 is manufactured in the United States, TAA compliant, and carries a 5-year limited warranty.

Key Features

• 4-Channel Multi-Mode Output — Each of the four channels independently configurable for constant-voltage (25V/70V/100V) or low-impedance (2/4/8 ohm) via rear DIP switches.
• 25V Constant-Voltage Support — All four channels support 25V, 70V, and 100V operation, covering compact commercial installations with 25V speaker systems.
• 75 W/Ch Across All Loads — Consistent 75W/ch at 25V, 70V, 100V, 8 ohm, 4 ohm, and 2 ohm for straightforward four-zone capacity planning.
• Integrated Protea DSP — 32-bit SHARC processing; dynamics, PEQ, matrix mixing, crossover, delay, metering, and FIR filter support per channel.
• No Dante — Accepts analog audio inputs. For Dante-enabled 75W four-channel operation, see the NXP754D.
• Protea NE Software Control — Full Ethernet-based remote control, monitoring, and preset management.
• Ashly Remote iPad App — Wireless DSP control including gain, mute, matrix, A/B source select, PEQ, and metering.
• Real-Time Clock with Event Scheduler — Automated preset recalls, standby, and power-on transitions on daily schedules.
• FIR Filter Ready — Accepts .fir and .csv speaker tuning files for precision alignment.
• Ashly EMS Energy Management — Automatic sleep mode draws less than 1 watt; defeatable.
• 5-Year Limited Warranty — Manufactured in the United States; TAA compliant, RoHS and cTUVus certified.

Typical Applications

• Small meeting room and conference room four-zone distributed audio
• Classroom and educational facility multi-zone audio with 25V speakers
• Retail space and commercial building four-zone background audio
• Government facility and institutional installations with 25V systems
• Small house of worship multi-zone overflow and distributed audio

Technical Specifications

Frequently Asked Questions

Does the NXP754 include Dante?

No. The NXP754 accepts analog audio inputs. For Dante-enabled 75W four-channel operation with DSP, see the NXP754D.

Does the NXP754 support 25V constant-voltage speakers?

Yes. All four channels support 25V, 70V, and 100V constant-voltage operation, covering compact commercial installations with 25V speaker systems.

What is the difference between the NXP754 and NXE754?

Both are four-channel 75W/ch networkable amplifiers with 25V support. The NXP754 adds full Protea DSP (32-bit SHARC) for per-channel processing. The NXE754 provides Ethernet control and monitoring without onboard DSP.

Can the NXP754 be controlled wirelessly?

Yes. The free Ashly Remote iPad app provides wireless network control of DSP functions including gain, mute, matrix, A/B source select, PEQ, and metering over Wi-Fi.

What is the NXP754 warranty?

The NXP754 carries a 5-year limited warranty and is manufactured in the United States. It is TAA compliant and certified RoHS and cTUVus.
