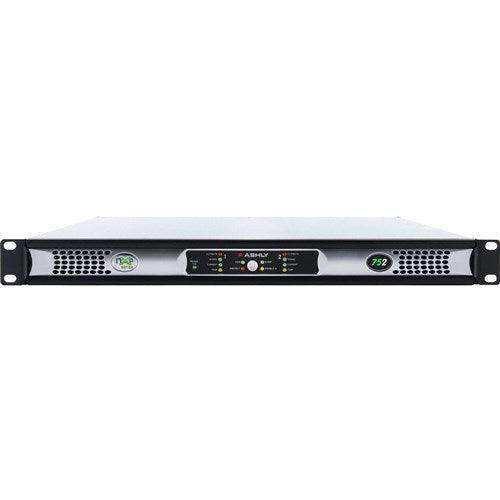

ASHLY NXP752D Multi-Mode Amplifier plus Dante Option Card

Product Overview

The Ashly NXP752D is a two-channel networkable power amplifier with integrated Protea DSP and a factory-installed Dante option card, delivering 75 watts per channel across all load configurations — 25V, 70V, 100V constant-voltage, and 2, 4, or 8 ohm low-impedance. This compact Dante-enabled networkable amplifier is designed for distributed audio in conference rooms, small classrooms, retail spaces, and compact commercial installations where two independent zones, 25V speaker support, network audio transport, and onboard signal processing are required in a single 1U rack-mount chassis. The NXP752D provides full Protea DSP capability with Dante audio networking in a low-power two-channel format, ideal for installations where per-zone power requirements are modest but integration and processing needs are full-featured.

Product Description

The Ashly NXP752D networkable amplifier with DSP integrates Dante audio networking, Protea DSP processing, and two-channel multi-mode amplification in a space-efficient 1U chassis. The factory-installed OPDante card provides native Dante audio routing over standard Ethernet, allowing audio sources on the Dante network to be routed to either output channel with no analog cabling between source equipment and the amplifier. Each of the two channels is independently configurable for 25V, 70V, or 100V constant-voltage or 2, 4, or 8 ohm low-impedance operation, making the NXP752D compatible with a wide range of commercial speaker systems. At 75W/ch across all load types and voltages, the NXP752D is sized for smaller commercial zones, meeting and training rooms, breakout areas, and installations where clarity and DSP flexibility matter more than high output power. Protea DSP delivers comprehensive signal processing on each channel — dynamics, PEQ, crossover, matrix mixing, delay, metering, and FIR filter support — all configurable via Ashly's Protea NE software over Ethernet or the Ashly Remote iPad app over Wi-Fi. The built-in real-time clock with event scheduler supports automated preset recalls, standby, and power-on transitions on programmable daily schedules. Aux preamp line outputs allow additional downstream amplifiers to be driven for system expansion in multi-zone commercial installations. The Ashly EMS provides automatic sleep mode drawing less than 1 watt during idle periods. The NXP752D is manufactured in the United States, TAA compliant, and carries a 5-year limited warranty.

Key Features

• Factory-Installed Dante Option Card — Native Dante audio over Ethernet, eliminating analog audio runs between network sources and the amplifier.
• 25V Constant-Voltage Support — Both channels support 25V, 70V, and 100V operation, covering 25V speaker systems in compact commercial installations.
• 75 W/Ch Across All Loads — Consistent 75W/ch at 25V, 70V, 100V, 8 ohm, 4 ohm, and 2 ohm for straightforward two-zone capacity planning.

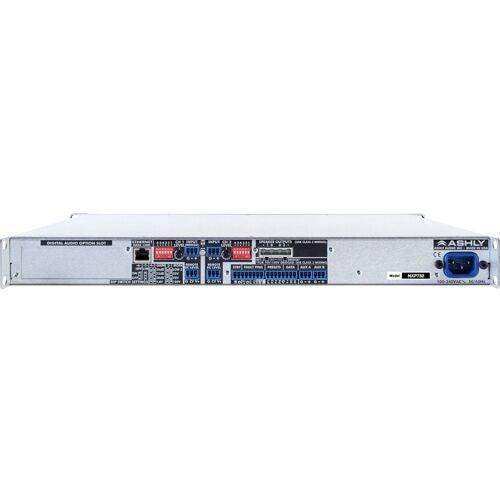

• 2-Channel Multi-Mode Output — Each channel independently configurable for constant-voltage (25V/70V/100V) or low-impedance (2/4/8 ohm) via rear DIP switches.
• Integrated Protea DSP — 32-bit SHARC processing; dynamics, PEQ, matrix mixing, crossover, delay, metering, and FIR filter support.
• Protea NE Software Control — Full Ethernet-based remote control, monitoring, and preset management.
• Ashly Remote iPad App — Wireless DSP control including gain, mute, matrix, A/B source select, PEQ, and metering.
• Real-Time Clock with Event Scheduler — Automated preset recalls, standby, and power-on transitions on daily schedules.
• FIR Filter Ready — Accepts .fir and .csv speaker tuning files for precision alignment.
• Ashly EMS Energy Management — Automatic sleep mode draws less than 1 watt; defeatable.
• 5-Year Limited Warranty — Manufactured in the United States; TAA compliant, RoHS and cTUVus certified.

Typical Applications

• Conference rooms and meeting rooms with 25V or 70V Dante speaker systems
• Small classroom and training room two-zone audio with Dante
• Retail space background audio with Dante and Protea DSP
• Compact commercial installations requiring Dante and onboard processing in 2 zones
• Government facility and institutional installations with 25V systems

Technical Specifications

Frequently Asked Questions

Does the NXP752D support 25V constant-voltage speakers?

Yes. Both channels support 25V, 70V, and 100V constant-voltage operation, making it compatible with 25V speaker systems used in smaller commercial spaces.

Does the NXP752D include Dante and DSP?

Yes. The NXP752D ships with a factory-installed OPDante card for Dante networking and full Protea DSP (32-bit SHARC). It is a complete two-channel Dante networkable amplifier with DSP.

What is the difference between the NXP752D and NXP1502D?

Both are two-channel Dante networkable amplifiers with Protea DSP. The NXP752D delivers 75W/ch and the NXP1502D delivers 150W/ch across all load types. Choose the NXP1502D for higher-output zones.

Can the NXP752D be controlled wirelessly?

Yes. The free Ashly Remote iPad app provides wireless network control of DSP functions including gain, mute, matrix, A/B source select, PEQ, and metering over the same Ethernet/Wi-Fi network.

What is the NXP752D warranty?

The NXP752D carries a 5-year limited warranty and is manufactured in the United States. It is TAA compliant and certified RoHS and cTUVus.
