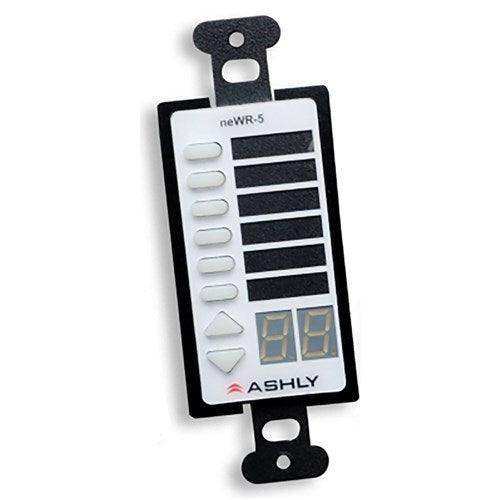

ASHLY NEWR-5 Wall Remote, Network Programmable Multi-Function, (Decora style)

Product Overview

The Ashly neWR-5 is a network-programmable Decora-style wall remote designed for use with Ashly NE (network-enabled) processors and amplifiers in commercial AV installations. Providing distributed control from any network-connected wall location, the neWR-5 enables building-wide preset recall, zone source selection, level control, and mute functions without requiring a dedicated control system. It is the correct network remote control solution for integrators deploying Ashly network-enabled audio in boardrooms, conference rooms, houses of worship, and multi-zone commercial facilities.

Product Description

The Ashly neWR-5 network programmable wall remote connects over a standard Cat5/Cat6 Ethernet network and interfaces directly with Ashly NE processors, NE amplifiers, nXe and nXp networked amplifiers, Pema amplifiers, and the ne24.24M matrix processor. All programming is accomplished using Ashly Protean software, giving integrators full control over button assignments and parameter ranges without on-site hardware changes. The neWR-5 features six programmable LED-backlit function buttons and a pair of Up/Down navigation buttons with an LED display for parameter adjustment. The six function buttons can be configured for preset recall, preset scroll, source selection, zone selection, or logic output control. The Up/Down cursor is typically mapped to volume control within a software-defined range. The Decora form factor integrates cleanly with standard commercial wall plates. Power is delivered over Ethernet using a standard PoE injector (the optional RPOE-1 is available separately). The neWR-5 ships with a 5-year limited warranty, consistent with Ashly’s commercial-grade product line, making it a suitable choice for permanent, high-availability installations where long-term reliability is required.

Key Features

• Six Programmable LED Function Buttons — Each button is software-configurable for preset recall, source select, zone select, mute, or logic output triggering.
• Up/Down Cursor with LED Display — Provides intuitive level control with a software-defined operating range, configurable per zone or per channel.
• Ethernet Network Interface — Connects via Cat5/Cat6 to any Ashly NE-compatible product, enabling building-wide distributed control from multiple wall locations.
• Protean Software Programming — All functions are configured using Ashly’s Protean control software; no hardware changes required for reprogramming.
• Broad NE Product Compatibility — Works with nXe, nXp, Pema, NE multi-channel and two-channel amplifiers, and the ne24.24M and NE8800/4800 processors.
• Decora Form Factor — Standard Decora-style dimensions fit commercially available wall plates for clean architectural integration.
• Power over Ethernet (PoE) — Powered via standard PoE injector; no separate power wiring required at the wall location.
• Channel Mute Control — Individual channel muting available from the remote, reducing the need for separate mute switches.
• 5-Year Limited Warranty — Commercial-grade reliability backed by Ashly’s standard warranty for installed AV products.

Typical Applications

• Boardroom
• Conference room
• House of worship
• Multi-purpose room
• Commercial meeting space
• Training room
• Government space

Technical Specifications

Frequently Asked Questions

What Ashly products is the neWR-5 compatible with?

The neWR-5 works with all Ashly NE (network-enabled) products, including nXe and nXp networked amplifiers, Pema amplifiers, NE multi-channel and two-channel amplifiers, the ne24.24M matrix processor, and NE8800/4800 network processors.

How is the neWR-5 programmed?

All programming is done using Ashly Protean software over the network. Button assignments, parameter ranges, and function types are configured in software; no hardware changes are required for reprogramming.

How does the neWR-5 receive power?

The neWR-5 is powered over Ethernet (PoE). Ashly offers the optional RPOE-1 PoE injector for installations where a PoE switch is not available.

Can multiple neWR-5 units be used in a single installation?

Yes. Multiple neWR-5 remotes can be deployed throughout a facility, each connected to the network and programmed independently to control specific zones, presets, or functions.

What cable type does the neWR-5 require?

The neWR-5 uses standard Cat5 or Cat6 Ethernet cable, which is standard infrastructure in commercial buildings and simplifies installation.

Is the neWR-5 suitable for permanent commercial installations?

Yes. The neWR-5 is backed by a 5-year limited warranty and is designed for permanent commercial AV installations where long-term reliability and field-reprogrammability are required.
