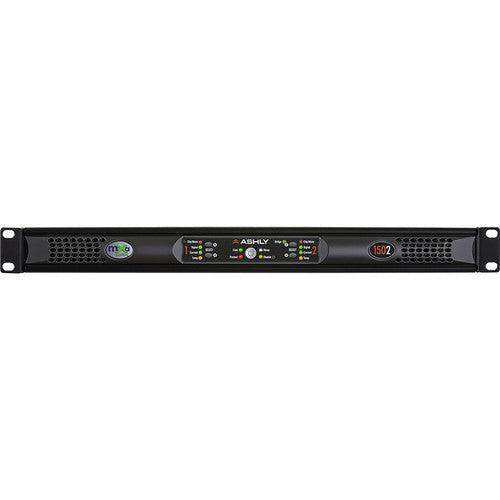

ASHLY MXA-1502 Network Digital Mixer/Amp 12-In x 4-Out, AquaControl 2x150W

Product Overview

The Ashly MXA-1502 is a network digital mixer/amplifier combining 12 audio inputs, 4-zone output routing, 2x150W Class D amplification, and full AquaControl DSP in a single 1RU rack-mount chassis. It processes up to 12 sources into four independent output zones, with two amplified outputs capable of driving 2, 4, and 8 ohm loads as well as 25V, 70V, and 100V constant-voltage systems. The MXA-1502 is designed for commercial AV installations in small to mid-size venues where a single device must handle mixing, DSP processing, amplification, and zone management for multiple areas.

Product Description

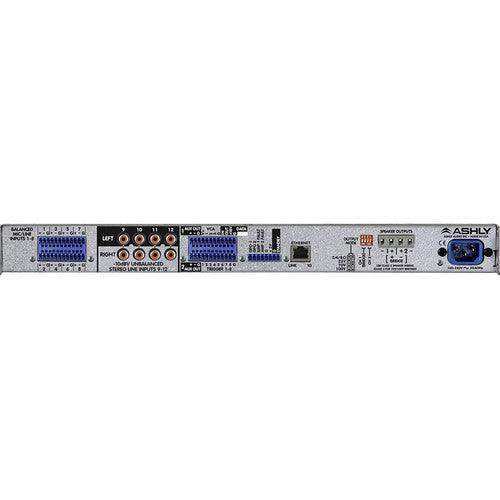

The MXA-1502 integrates all elements of a commercial audio zone system into one compact unit: eight balanced mic preamp inputs, four stereo RCA line inputs, comprehensive DSP processing, two 150W Class D amplifier channels, and two auxiliary line outputs for passive zones or additional amplification. Each of the four output zones can receive any combination of the 12 input sources, with per-input and per-output DSP including routing, EQ, compression, limiting, auto-mixing, and ducking. The AquaControl browser-based interface provides full system configuration and control from any Windows 10, Mac OS 10 or later, or Linux device with a web browser, without requiring dedicated software installation. Typical deployment scenarios include church sanctuary/balcony/crying room/foyer coverage, restaurant bar/dining/patio/waiting area music, office/conference/reception/warehouse zones, or a ballroom that partitions into smaller spaces. Each of these use cases benefits from the MXA-1502's ability to route any input to any zone output with independent level control and DSP settings per zone. Integration I/O includes GPIO, RS-232 serial, VCA control ports, and network interface for compatibility with building automation, third-party control systems, and Ashly WR-series wall remotes. The amplified outputs support both low-impedance speakers and constant-voltage 70V/25V distributed speaker systems, giving installers flexibility to mix speaker types across zones. The compact 1RU chassis minimizes rack space usage in installations where equipment room space is at a premium. On-sale pricing makes the MXA-1502 an economical choice for complete single-rack commercial audio zone solutions.

Key Features

• 12 Inputs: 8 Mic Preamps + 4 Stereo RCA — Eight balanced mic/line inputs with preamps plus four stereo RCA line inputs accommodate microphones, wireless systems, streaming audio, and consumer sources.
• 4-Zone Output Routing — Four independent output zones (2 amplified, 2 auxiliary) allow independent source assignment, level control, and DSP settings per zone.
• 2 x 150W Class D Multi-Mode Amplifier — Dual 150W amplified outputs drive 2, 4, or 8 ohm loads and 25V, 70V, or 100V constant-voltage speaker systems.
• AquaControl Browser-Based DSP Interface — Full system configuration and live control via any web browser on Windows, Mac, or Linux without software installation.
• Comprehensive Input and Output DSP — All channels include routing, EQ, compression, limiting, auto-mixing, ducking, and more via AquaControl.
• Auto-Mixing — Automatic microphone mixing manages live mic sources without requiring a dedicated mix operator, ideal for conference and presentation environments.
• Multi-Priority Ducking — Paging and priority sources automatically reduce background music across selected zones when active.
• Event Scheduling — Built-in event scheduler and trigger functionality automates routine timed operations without external control systems.
• Integration I/O — GPIO, RS-232, VCA control, and network interface for third-party control systems and wall-panel remotes.
• WR Remote Compatibility — Works with Ashly WR-1, WR-1.1, WR-1.5, and WR-2 wall-mount remotes for zone-level volume and preset control.
• 1RU Compact Design — Single rack unit form factor consolidates mixing, DSP, and amplification in minimal rack space.

Typical Applications

• House of worship sanctuary, balcony, crying room, and foyer zone coverage
• Restaurant and bar multi-area background music and paging
• Office, conference room, reception, and warehouse zone audio
• Hotel ballroom and partitioned event space audio
• Retail store multi-zone background music with microphone paging
• Training room and commercial meeting space audio systems
• School and educational facility multi-room audio distribution

Technical Specifications

Frequently Asked Questions

How many zones does the MXA-1502 support?

The MXA-1502 supports four output zones: two directly amplified outputs (2x150W) and two auxiliary line outputs for connecting additional external amplifiers or passive zones.

Can the MXA-1502 drive 70V distributed speaker systems?

Yes. Both amplified outputs support 70V and 100V constant-voltage operation in addition to 2, 4, and 8 ohm low-impedance loads, making the MXA-1502 compatible with transformer-tapped 70V distributed speaker installations.

Does the MXA-1502 require dedicated software to configure?

No. AquaControl is a browser-based interface accessible from any web browser on Windows 10, Mac OS 10 or later, or Linux. No dedicated application needs to be installed on the controlling computer or tablet.

What is auto-mixing and when is it useful?

Auto-mixing automatically adjusts levels across multiple open microphones to minimize background noise and feedback, reducing the gain of inactive microphones. It is useful in conference rooms, boardrooms, and presentation spaces where multiple mics are active simultaneously.

Can the MXA-1502 automatically reduce background music when someone uses the microphone?

Yes. The multi-priority ducking feature in AquaControl automatically reduces background music levels in selected zones when a paging microphone or priority input becomes active.

What wall remotes work with the MXA-1502?

The MXA-1502 is compatible with Ashly WR-1, WR-1.1, WR-1.5, and WR-2 wall-mount remotes for zone-level volume control and preset selection.
