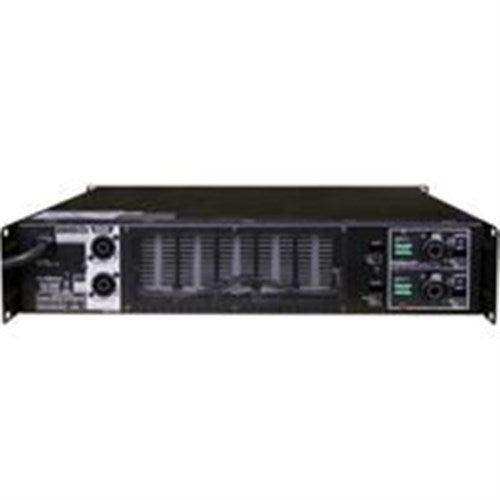

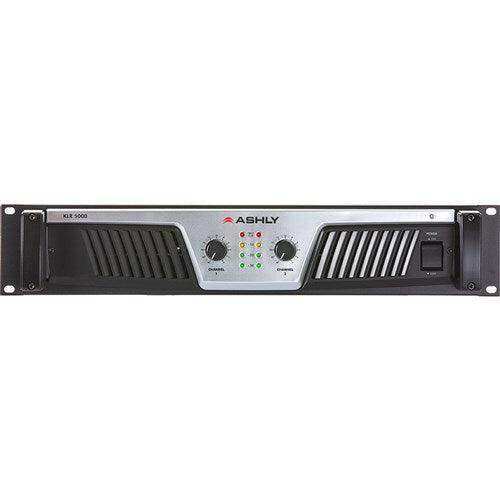

ASHLY KLR-5000 Power Amplifier 2 x (2, 500W @ 2) (1, 700W @ 4) (1, 000W @ 8) Ohms

Product Overview

The Ashly KLR-5000 is a high-power 2-channel Class-H commercial amplifier delivering 2,500W per channel at 2 ohms, 1,700W at 4 ohms, and 1,000W at 8 ohms, with a 5,000W bridged mono rating at 4 ohms. As the flagship model of the Ashly KLR high-performance amplifier series, the KLR-5000 is engineered for demanding installed sound and live sound applications including line arrays, high-output speaker systems, and dual 18-inch subwoofer configurations. The KLR-5000 combines high sustained output power with a signal-to-noise ratio exceeding 110 dB in a lightweight 2U rack-mount enclosure, making it a practical choice for commercial AV installations where performance-per-rack-unit matters.

Product Description

The Ashly KLR high-commercial amplifier series delivers high levels of sustained power in a 2U enclosure that is exceptionally lightweight for its output class. The KLR-5000 uses a 2-step Class-H output topology paired with a switch-mode power supply, enabling the amplifier to run efficiently even at continuous high-demand levels. Front-panel controls include per-channel attenuators, a 3-position gain switch, a 3-position mode switch for stereo, bridged mono, or parallel mono operation, and a 3-position 12 dB/octave high-pass filter switchable between 30 Hz, 50 Hz, and off. An on/off limiter switch provides additional output protection. Inputs are balanced via combo XLR/TRS connectors plus 3-pin Euroblock; outputs use Neutrik speakON connectors for secure load connections. Cooling is front-to-rear forced air with removable, cleanable dust filters, making the KLR-5000 suitable for both touring and permanent rack installations. Front handles are removable for clean permanent installs. Optional locking knobs (KLR-LK2) are available for secure installations requiring front-panel tamper resistance. The KLR-5000 is TAA compliant and carries cCSAus, CE, FCC, and RoHS certifications, meeting the compliance requirements for government and institutional procurement.

Key Features

• 2-Step Class-H Output Topology — Delivers high efficiency at the KLR-5000’s power levels, reducing heat and operating costs in permanent installations.
• 2,500W Per Channel at 2 Ohms — Handles demanding loads including line arrays and dual-18 subwoofer systems without thermal limiting.
• 5,000W Bridged Mono at 4 Ohms — Single-amplifier bridged mono deployment for high-output mono subwoofer or main speaker applications.
• SNR >110 dB — Exceptionally quiet background noise floor for installed sound applications where ambient noise levels are low.
• 3-Position Mode Switch — Selectable stereo, bridged mono, or parallel mono operation without rewiring.
• 3-Position 12 dB/Oct High-Pass Filter — Switchable 30 Hz, 50 Hz, or off to protect loudspeakers from sub-audible content.
• Combo XLR/TRS + Euroblock Inputs — Accommodates both professional XLR and installation Euroblock wiring standards.
• Neutrik speakON Output Connectors — Locking output connectors prevent accidental disconnection in touring and installed environments.
• Front-to-Rear Forced-Air Cooling — Removable dust filters extend service intervals in installed environments.
• Removable Front Handles — Handles remove for flush rack panel appearance in permanent installations.
• TAA Compliant — Meets Trade Agreements Act requirements for government and institutional purchasing.
• cCSAus, CE, FCC, RoHS Certified — Full compliance for North American and international commercial deployments.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• All-hands room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

What is the bridged mono power output of the KLR-5000?

The KLR-5000 delivers 5,000W bridged mono into a 4-ohm load, making it suitable for high-output single-channel applications such as dedicated subwoofer amplification.

Does the KLR-5000 support 70V constant-voltage distribution?

No. The KLR-5000 does not support 70V or 100V constant-voltage operation. For 70V distributed audio in the KLR series, the KLR-3200 is the appropriate model.

What output connectors does the KLR-5000 use?

The KLR-5000 uses Neutrik speakON locking output connectors, which prevent accidental disconnection in both touring and installed rack environments.

Is the KLR-5000 suitable for permanent installation?

Yes. Front handles are removable for a flush panel appearance, optional locking knobs (KLR-LK2) prevent unauthorized front-panel adjustments, and the amplifier is TAA compliant for institutional procurement.

What protection circuitry does the KLR-5000 include?

The KLR-5000 includes a switch-mode power supply with extensive protection circuitry, an on/off limiter switch, and thermal management via front-to-rear forced-air cooling with removable dust filters.

What input options are available?

The KLR-5000 accepts balanced inputs via combo XLR/TRS connectors and 3-pin Euroblock connectors, accommodating both touring-style XLR cabling and installation-style Euroblock terminations.
