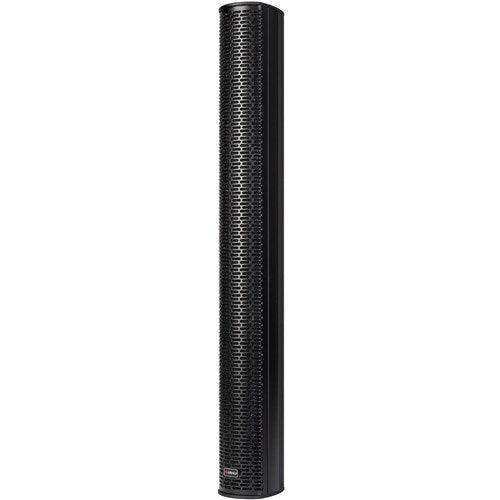

ASHLY IS2.8P 8 x 2" Passive Dual-Z Focused Directivity Column Speaker (Single, Black)

Product Overview

The Ashly IS2.8P is a passive Dual-Z Focused Directivity column speaker in the IS Series, featuring 8 x 2" neodymium drivers in an all-metal enclosure optimized for commercial AV installation. At just 24 inches tall, it delivers controlled vertical directivity and ultra-wide 190° horizontal dispersion, making it one of the most compact options available for achieving consistent speech intelligibility across an audience area. Its switchable 8 Ω / 32 Ω impedance supports distributed multi-speaker configurations without external transformers, and it works directly with Ashly DSP amplifiers using downloadable Voice Presets for a fast, calibrated commercial column speaker installation.

Product Description

The IS2.8P brings Ashly's Dual-Z column speaker technology to smaller rooms and budget-conscious commercial AV projects. The compact 24" column houses eight 2" neodymium transducers arranged in a linear array that produces a 190° horizontal pattern with tight 30° vertical control. This combination drives sound to seated audiences while rejecting ceiling and floor reflections, reducing the reverberation that degrades speech intelligibility in hard-surfaced rooms like conference rooms, training rooms, and government offices.

The all-metal enclosure with chip-resistant polymer coating handles permanent installation and portable event use equally well. The dual-impedance switch (8 Ω / 32 Ω) lets AV integrators run multiple IS2.8P columns per amplifier channel in distributed audio designs without the cost and complexity of line-matching transformers. Two IS2.8P units can be stacked vertically using the optional ISJP2B joining plate for increased output. The speaker ships with flush wall brackets included; optional accessories include wall mounts, speaker poles, and tripod stands from Ashly's IS accessory line. Add the SP8.1P or SP12.1P passive subwoofer for extended low-frequency response.

Key Features

• 8 x 2" Neodymium Drivers — Eight 2-inch full-range neodymium transducers handle 120W continuous at 8 Ω.
• Ultra-Wide Horizontal Dispersion — 190° horizontal / 30° vertical pattern delivers coverage across the widest seating areas.
• Switchable 8 Ω / 32 Ω Impedance — Distribute multiple speakers per amplifier channel with no external transformers required.
• Compact 24" Profile — Slim column fits beside flat-panel displays and in tight architectural spaces.
• All-Metal Enclosure — Durable, chip-resistant polymer coating for both permanent installation and portable deployment.
• Included Flush Wall Brackets — Wall-mount hardware ships in the box; additional mount accessories available separately.
• DSP Voice Presets — Downloadable presets for Ashly Protea and AquaControl amplifiers for optimized out-of-box performance.
• Stackable Design — Join two IS2.8P columns vertically with the optional ISJP2B plate for larger venue coverage.

Typical Applications

• Conference rooms and boardrooms
• Training rooms and multipurpose spaces
• Houses of worship
• Government and commercial meeting rooms
• Corporate all-hands and auditorium spaces
• Restaurant and retail background music

Technical Specifications

Frequently Asked Questions

How does the IS2.8P compare to the IS3.8P?

The IS2.8P uses 8 x 2" drivers and handles 120W at 8 Ω, while the IS3.8P uses 8 x 3" drivers and handles 240W at 8 Ω. The IS2.8P is shorter (24" vs 31.77"), lighter, and suited to smaller rooms; the IS3.8P delivers more output and extended throw for larger spaces.

Can I run multiple IS2.8P speakers per amplifier channel?

Yes. Set the impedance switch to 32 Ω and connect up to four IS2.8P speakers in parallel on a standard 8 Ω amplifier output without transformer matching.

Is the IS2.8P compatible with Ashly subwoofers?

Yes. The IS2.8P pairs with the Ashly SP8.1P or SP12.1P passive subwoofers. Use the ISPM1B (1-foot) or ISPM6B (6-foot) speaker pole to mount the column atop the subwoofer for a complete PA-on-a-stick system.

What mounting options are available?

Flush wall-mount brackets are included. Optional IS series accessories include the ISFWB2.8 fixed wall bracket, ISPM1B and ISPM6B speaker poles, ISTR7B 7-foot tripod stand, and ISTWMB tilt wall mount.

Does the IS2.8P support 70V distributed audio systems?

No. The IS2.8P is a low-impedance passive loudspeaker. For 70V constant-voltage distribution, use the Ashly AW series speakers with built-in transformers or add external line-matching transformers.
