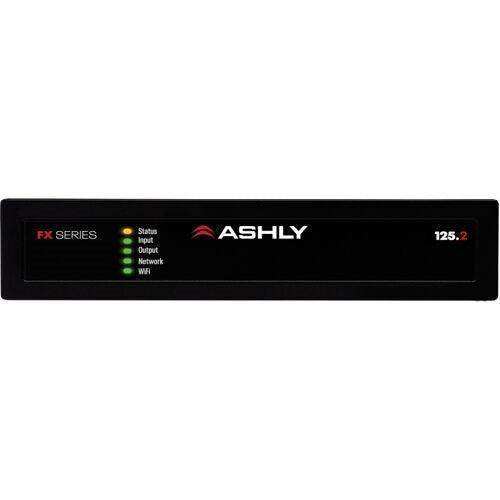

ASHLY FX125.2 1/2-Rack Compact 2-Chan Power Amp with DSP, 2 x 125W at 4/8 Ohms, 1 x 250W at 70V

Product Overview

The Ashly FX125.2 is a two-channel Class D power amplifier with integrated Protea DSP, delivering 125W per channel at 4 or 8 ohms in a half-rack chassis with built-in Wi-Fi and Ethernet. The 4-input by 2-output DSP engine provides complete signal processing including input mixing, zone routing, parametric EQ, crossover, FIR filtering, speaker presets, and limiters, making the FX125.2 a complete single-box amplification and processing solution for two-zone commercial audio installations. Its half-rack form factor supports non-rack hidden installations as well as standard 19-inch rack mounting with optional brackets.

Product Description

The FX125.2 delivers 125W per channel into 2 or 4 ohm loads and supports 70V/100V constant-voltage operation when the two channels are bridged. Advanced Dynamic Power Sharing allows the full 250W power budget to shift entirely to one channel when the other is unloaded, or to distribute asymmetrically to accommodate mismatched speaker loads within the same chassis. This makes the FX125.2 effective for subwoofer-plus-satellite configurations, or any two-zone system where speaker impedances or power requirements differ between zones.

The Protea DSP engine processes four inputs through two outputs with input processing (gain, sensitivity), zone processing (source select, mono/stereo, compressor, level metering), and output processing (delay up to 100ms, 10-band fully parametric EQ, crossover, polarity, limiter modes). Speaker preset management allows independent preset loading per output channel, supporting different speaker models on different zones with FIR filter import capability for advanced loudspeaker optimization. A browser-based interface accessible from any device on any OS eliminates software installation requirements. The built-in Wi-Fi access point provides direct wireless connection without a network router; Ethernet supports permanent LAN integration and remote system access. SPDIF digital I/O supports connection to compatible digital sources and digital system bridging. Addressable GPIO, standby/mute, and per-channel VC remote ports integrate with wall remotes, control systems, and building automation. 5-year Ashly limited warranty included.

Key Features

• 2 x 125W Class D Output (4/8 ohms) — Two independent channels at 125W each; up to 250W single-channel via Dynamic Power Sharing.
• 70V/100V Bridge Mode — One 250W constant-voltage channel when bridged for 70V/100V distributed speaker systems.
• 4-Input x 2-Output Protea DSP Engine — Complete input mixing, zone processing, output EQ/crossover, and speaker management in one box.
• 10-Band Parametric EQ Per Output — Fully parametric EQ with crossover, delay, polarity, and limiter per output channel.
• Speaker Preset System with FIR Filter Import — Per-output saveable speaker presets supporting multiple loudspeaker models in the same system.
• Built-in Wi-Fi Access Point — Direct wireless configuration from any browser-enabled device without a network router.
• Ethernet Networking — Wired LAN for permanent installation, remote access, and multi-unit management.
• Balanced Euroblock + RCA Inputs — Mic/line balanced inputs on all four DSP inputs, plus RCA for program sources.
• SPDIF Digital I/O — Digital connectivity and support for digital system bridging.
• Addressable GPIO, VC Remote Ports, Standby/Mute — Integration with wall remotes, control systems, and automation.
• Dynamic Power Sharing — Automatically distributes 250W total power between two channels based on load requirements.
• Half-Rack Form Factor — Fits inside casework, displays, furniture, or standard rack with optional brackets.
• 5-Year Ashly Warranty — Full coverage on all parts and labor.

Typical Applications

• Stereo ceiling speaker amplification for conference rooms and huddle spaces
• Two-zone background music and paging amplification in retail and hospitality
• Hotel lobby and guest area stereo or zoned audio amplification
• Classroom and educational space two-zone distributed audio
• Kiosk and retail display hidden amplification
• House of worship fill and overflow room speaker amplification
• Bar and restaurant stereo zone amplification

Technical Specifications

Frequently Asked Questions

What is the difference between the FX125.2 and FX125.4?

The FX125.2 has two amplifier output channels and a 4-input x 2-output DSP configuration, while the FX125.4 has four amplifier output channels and a 4-input x 4-output DSP configuration. The FX125.2 is suited for two-zone systems, and the FX125.4 is the right choice when four independent zones or speakers require amplification.

Can the FX125.2 power a 70V distributed speaker system?

Yes. Bridging the two channels enables a single 250W output at 70V or 100V for constant-voltage distributed speaker systems.

Does the FX125.2 include speaker crossover processing?

Yes. Each output includes a fully configurable crossover, 10-band parametric EQ, delay, polarity, and limiter. Speaker presets can be saved and loaded per output, and FIR filter files from compatible speaker manufacturers can be imported for advanced optimization.

How does the FX125.2 connect to a network or laptop for configuration?

The FX125.2 has a built-in Wi-Fi access point for direct wireless connection from any browser-enabled PC, tablet, or smartphone without a network router. Ethernet provides wired LAN integration for permanent systems. All configuration is done through a browser interface with no software to install.

What are the mounting options for the FX125.2?

The FX125.2 can be used free-standing in casework, behind displays, under furniture, or inside AV equipment. Ashly FA1.2RM (rack-mount), FA2.2RM (rear rail support), and FATWB (flush wall/surface mount) bracket kits are available as optional accessories.
