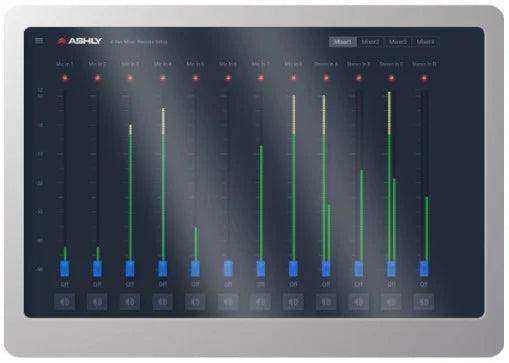

ASHLY AQUATOUCH7 7" Programmable AquaControl Touch Panel Remote

Product Overview

The Ashly AquaTouch7 is a 7-inch color touchscreen wall-panel remote designed for use with AquaControl-based devices including the AQM408, AQM-1208, and mXa-1502, providing a polished in-wall user interface for commercial AV systems that require hands-on local control of zone levels, source selection, and preset recall. Powered over Ethernet via PoE, the AquaTouch7 installs in standard single-gang, dual-gang, or 60mm Euro electrical boxes with a flush-mount bracket included.

Product Description

The AquaTouch7 connects to any AquaControl host device over standard wired Ethernet and displays the remote pages configured within the AquaControl software. Because the remote interface logic resides in the host AquaControl device, the AquaTouch7 does not require firmware updates when new AquaControl models are released — it functions as a browser-style viewer that is always compatible with the latest AquaControl version. This architecture also means the same AquaTouch7 can be used with any current or future AquaControl product without hardware changes.

Configurable remote pages include mixer fader views, DCA group controls, virtual WR-5 zone controller pages, and any other remote page served by the connected AquaControl device. Per-page access permissions are controlled from the AquaControl security settings, so each user or zone can be restricted to only the controls they are authorized to use. A programmable screen timeout with PIN-protected screen access login prevents unauthorized operation after periods of inactivity.

The 7-inch TFT display delivers 800x1280 resolution at 400 NITS brightness for clear viewing in ambient room lighting. The front panel uses clear E-glass for a durable, professional appearance, while the rear housing is ABS. The unit is 6.91 inches wide by 4.53 inches tall by 0.65 inches deep at the wall, with 0.75 inches of depth behind the wall surface. Weight is 1.2 lbs. A wall-mount bracket is included in the box. PoE 802.3af power eliminates the need for a separate power supply at the installation point. A DHCP server or router is required on the network; the AquaTouch7 does not support static IP addressing.

Key Features

• AquaControl Compatible — Works with all AquaControl-based Ashly devices including AQM408, AQM-1208, and mXa-1502; future-compatible as interface logic resides in the host device.
• 7" TFT Color Touchscreen — 800x1280 resolution, 400 NITS brightness, clear E-glass front panel for professional appearance.
• Wired Ethernet Connectivity — Secure RJ-45 connection eliminates wireless interference and access control concerns inherent in Wi-Fi remotes.
• PoE Powered (802.3af) — Single CAT cable carries both data and power; no separate power supply at the installation point.
• Flush Wall-Mount Design — Compatible with standard 1-gang, 2-gang, and 60mm Euro electrical boxes; wall-mount bracket included.
• Multi-Stage Security — Three independent security layers: AquaControl login, settings menu PIN, and screen access PIN after timeout.
• Role-Based Page Access — Each user role sees only the remote pages assigned in AquaControl, preventing unauthorized control access.
• Multiple AquaTouch7 Units Per System — Multiple AquaTouch7 remotes can be connected to a single AquaControl host device for multi-zone wall control.
• Easy Setup — Automatically discovers the AquaControl host device on the network; quick setup menu for brightness, screen timeout, and login settings.
• Compact In-Wall Profile — 0.65" depth in front of wall, 0.75" behind; elegant appearance in any room environment.

Typical Applications

• Conference room and boardroom zone volume and source control
• House of worship zone audio and preset recall at the room entry
• Hotel ballroom and meeting room distributed audio control station
• Retail store zone volume management at manager station
• Restaurant and hospitality zone control at reception or bar
• School classroom and auditorium local audio control
• Government and corporate campus zone audio management panel

Technical Specifications

Frequently Asked Questions

What AquaControl devices work with the AquaTouch7?

The AquaTouch7 is compatible with all Ashly AquaControl-based devices, including the AQM408, AQM-1208, and mXa-1502. Because the remote interface logic resides in the host AquaControl device rather than in the AquaTouch7 itself, it is forward-compatible with future AquaControl products without requiring hardware upgrades.

Does the AquaTouch7 require a separate power supply?

No. The AquaTouch7 is powered via PoE (802.3af) over the same Ethernet cable used for data. A PoE-capable switch or router, or a separate PoE injector, is required at the network connection point.

Can the AquaTouch7 be used with a wireless network?

No. The AquaTouch7 uses wired Ethernet only. This provides reliable, low-latency connectivity without the interference and security exposure associated with Wi-Fi remotes in commercial environments.

How is access to specific control pages restricted?

Access permissions are configured in the AquaControl software on the host device. Each user or role can be assigned specific remote pages (such as a zone volume control or preset selector) and will only see those pages after logging in. Three independent security stages protect against unauthorized use: the AquaControl login, a settings PIN, and a screen-access PIN after timeout.

How many AquaTouch7 units can connect to one AquaControl device?

Multiple AquaTouch7 remotes can be connected to a single AquaControl host device simultaneously, allowing different zones or rooms to each have their own dedicated touch panel while all controlling the same system.

What electrical box sizes does the AquaTouch7 fit?

The AquaTouch7 is compatible with standard North American single-gang and dual-gang electrical boxes, as well as 60mm Euro-style boxes. The included wall-mount bracket provides a flush, professional installation appearance in any of these configurations.
