ASHLY AQM408 4 Input by 8 Output Digital Zone Mixer
Product Overview

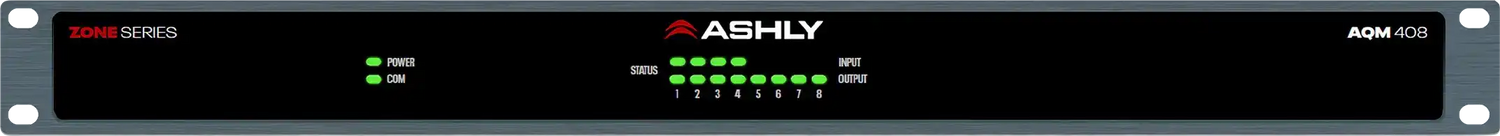

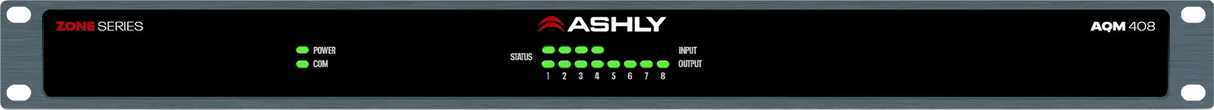

The Ashly AQM408 is a 4-input by 8-output AquaControl digital zone mixer designed for use with external amplification in commercial audio installations, providing a comprehensive DSP toolset in a standalone 1RU rack-mount processor. Powered by the AquaControl DSP engine, it is controlled via any web browser over LAN or internet without requiring software installation, making it remotely accessible from anywhere in the world. The AQM408 is suited for commercial AV installations in retail, hospitality, education, corporate, and live event environments where flexible 4-source, 8-zone audio routing and processing are required.
Product Description
The AQM408 combines the speaker processing capabilities of Ashly's legacy 4.8SP and 3.6SP processors with the full AquaControl DSP toolbox from the AQM1208, adding features not previously available on the SP series including feedback suppression, 31-band graphic EQ, and FIR filters. The 4 balanced XLR line inputs and 8 balanced XLR line outputs provide a flexible routing matrix that supports complex zone assignment scenarios, from small background music systems to full stadium PA processing. Eight matrix mixers within the system allow creation of eight independent mixes, each shareable across multiple outputs for sophisticated BGM distribution and paging zone assignments. The AquaControl browser-based interface requires no dedicated software installation and works with any PC, mobile device, or tablet on any operating system. Remote access over Ethernet or internet allows integrators to configure and troubleshoot systems from outside the building without a site visit, reducing service costs. The comprehensive DSP library covers gain, remote gain, DVCA gain, compressor, auto leveler, limiter, gate, multi-priority ducking matrix, 31-band graphic EQ, feedback suppression, 10-band parametric EQ, HPF/LPF, 2/3/4-way universal crossovers, FIR filters, delay, speaker delay, auto-mixing, ambient noise control, signal generator, and a comprehensive event scheduler with real-time clock. Control I/O includes 2 programmable GPI triggers and 3 remote VC ports for wall-panel volume control, plus full control via AquaControl from any browser-enabled device. The AQM408 is compatible with Ashly AquaTouch7, WR-1, WR-1.1, WR-1.5, and WR-2 wall remotes. Digital performance is rated at 32-bit, 48kHz with THD below 0.01% at 1kHz and S/N above 110dB. The 1RU chassis (19 x 1.75 x 8.5 inches, 6.2 lbs) fits efficiently alongside power amplifiers in commercial installation equipment racks.
Key Features

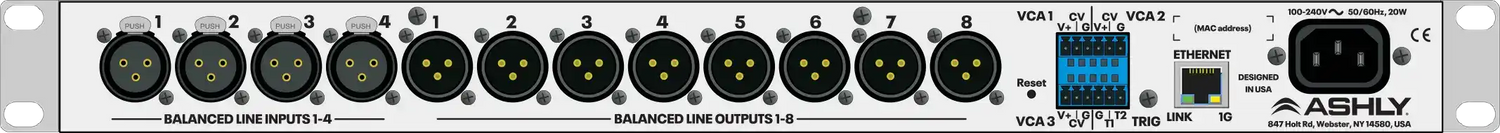

- 4 Balanced Line Inputs x 8 Balanced Line Outputs — Flexible 4x8 routing matrix with XLR connectors on all inputs and outputs.

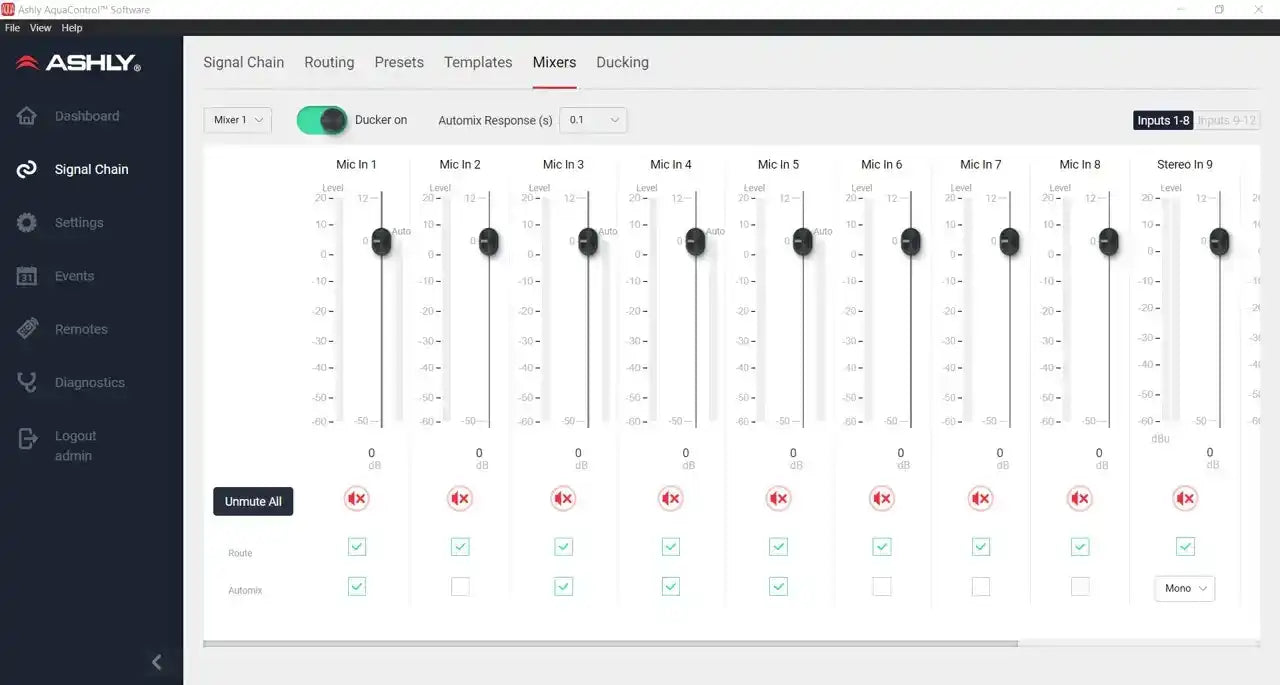

- 8 Independent Matrix Mixers — Eight internal matrix mixers enable complex zone routing for BGM distribution, paging, and multi-source zone assignments.
- AquaControl Browser-Based Interface — Accessible from any web browser on any OS without software installation; works on PC, tablet, or smartphone.
- Remote Access Worldwide — Connect over LAN or internet for remote configuration and troubleshooting from any location.

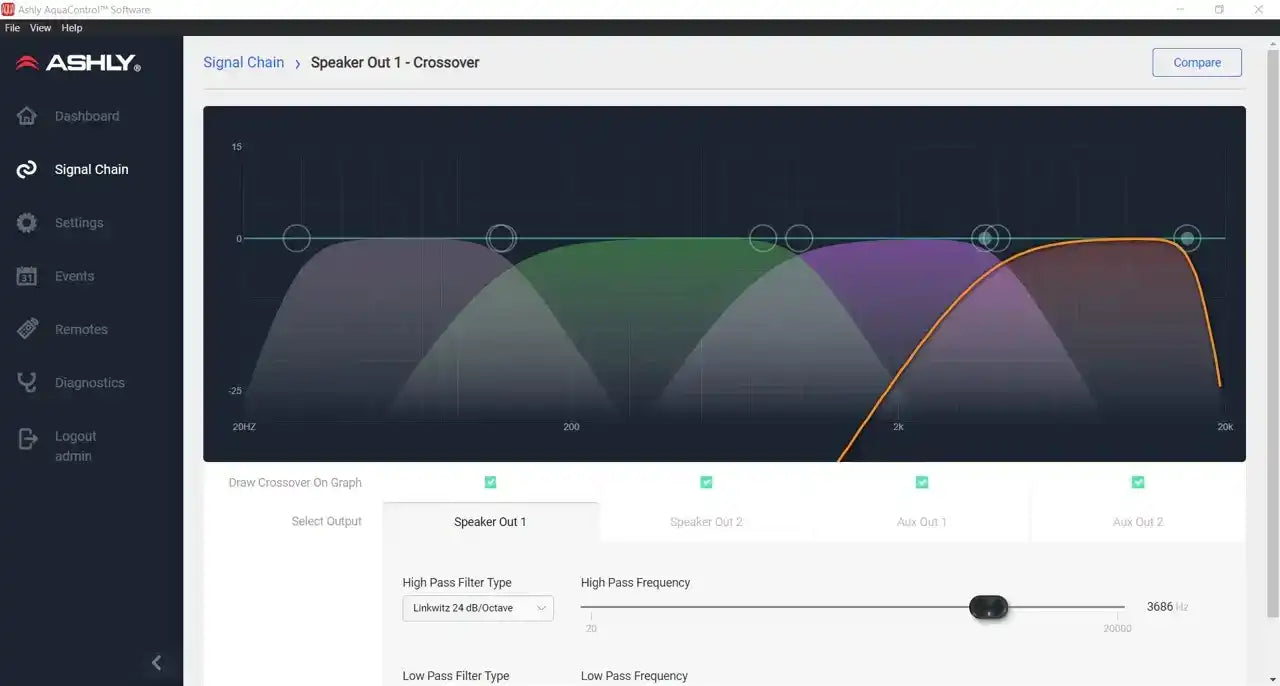

- Comprehensive DSP Library — Includes 31-band GEQ, 10-band PEQ, feedback suppressor, FIR filters, crossovers, compressor, leveler, limiter, gate, multi-priority ducking, delay, auto-mix, and ambient noise control.
- Multi-Priority Ducking Matrix — Automatic level reduction of background music when priority sources such as paging are active.
- Event Scheduler with Real-Time Clock — Automated timed operations for routine system tasks without external control processors.
- 2 GPI Triggers and 3 Remote VC Ports — Integration with external control systems and wall-panel volume controls.
- AquaTouch7 and WR Remote Compatibility — Works with Ashly touchscreen and wall-mount remotes for zone-level user control.
- 32-Bit / 48kHz Processing — High-resolution DSP with THD below 0.01% and S/N above 110dB.
- 1RU Compact Chassis — 19" x 1.75" x 8.5", 6.2 lbs; conserves rack space in commercial installation equipment rooms.
Typical Applications
- Retail store background music and paging across multiple zones
- Restaurant and bar multi-area audio zone management
- Hotel and hospitality zone audio processing and distribution
- School and educational facility multi-room audio routing
- Live venue PA system processing and speaker management
- Corporate campus and office building zone audio DSP
- Conference room and commercial meeting space audio systems
- Government and institutional facility audio distribution
Technical Specifications
| Specification | Value |
|---|---|
| Input Channels | 4 Balanced Line (XLR) |
| Output Channels | 8 Balanced Line (XLR) |
| THD+N (typical) | <0.01% @ 1kHz, 0dBu |
| Signal-to-Noise Ratio | >110dB (20Hz–20kHz, unweighted) |
| Frequency Response | 20Hz–20kHz, ±0.25dB |
| Input Impedance | 10kΩ |
| Line Output Maximum Level | +20.5 dBu |
| Propagation Delay | 1.08 ms |
| DSP Resolution | 32-bit |
| Sample Rate | 48kHz |
| Control Network | RJ-45, 1GB Ethernet |
| Integration I/O | 2x GPI, 3x Remote VC (Euroblock 3.5mm) |
| Compatible Remotes | AquaTouch7, WR-1, WR-1.1, WR-1.5, WR-2 |
| AC Mains Input | 90–240VAC, 50/60Hz (70–270V operating range) |
| Operating Temperature | 40–120°F (4–49°C) |
| Dimensions (W x H x D) | 19" x 1.75" x 8.5" (483 x 45 x 216mm) |
| Weight | 6.2 lbs (2.8 kg) |
| Form Factor | 1RU Rack Mount |
Frequently Asked Questions
- What is the AQM408 used for?
- The AQM408 is a standalone DSP zone mixer and speaker processor used with external power amplifiers. It handles all signal routing, zone mixing, and speaker management DSP tasks for commercial audio systems with up to 4 source inputs and 8 zone outputs.
- Does the AQM408 require software installation to configure?
- No. AquaControl is a browser-based interface that works on any web browser on any operating system, including Windows, Mac, iOS, and Android. No application needs to be installed on the controlling device.
- Can the AQM408 be controlled remotely from outside the building?
- Yes. The AQM408 can be accessed over the internet via its Ethernet connection, allowing integrators to configure, adjust, and troubleshoot systems remotely without a site visit.
- What is the difference between the AQM408 and the AQM-1208?
- The AQM408 provides 4 inputs and 8 outputs, while the AQM-1208 provides 12 inputs and 8 outputs. The AQM408 is the right choice for installations with fewer source inputs; the AQM-1208 is better suited for larger systems requiring more source channels.
- Does the AQM408 support automatic paging ducking?
- Yes. The multi-priority ducking matrix automatically reduces background music levels in selected zones when a priority paging source becomes active, without requiring manual level adjustment.
- What wall remotes work with the AQM408?
- The AQM408 is compatible with Ashly AquaTouch7 touchscreen panels and WR-1, WR-1.1, WR-1.5, and WR-2 wall-mount volume and preset remotes.
