APC SMX3000RMLV2UNC Smart-UPS X 3000VA Rack/Tower LCD 100-127V with Network Card

Product Overview

The APC Smart-UPS X SMX3000RMLV2UNC is a 3kVA-class line-interactive UPS that provides conditioned backup power for 120V rack and tower deployments. As a 120V line-interactive UPS, it combines automatic voltage regulation, pure sine wave output, and a factory-installed network card for remote AV and IT management. This APC Smart-UPS X model fits equipment rooms and AV racks running North American 100V to 127V power that need extended runtime and remote visibility. The compact 2U rack/tower convertible chassis adapts to a range of installations.

Product Description

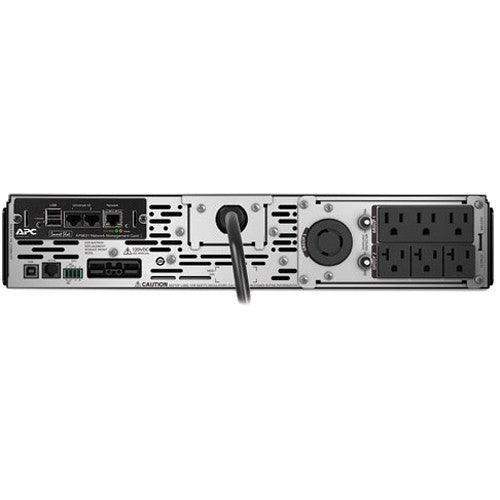

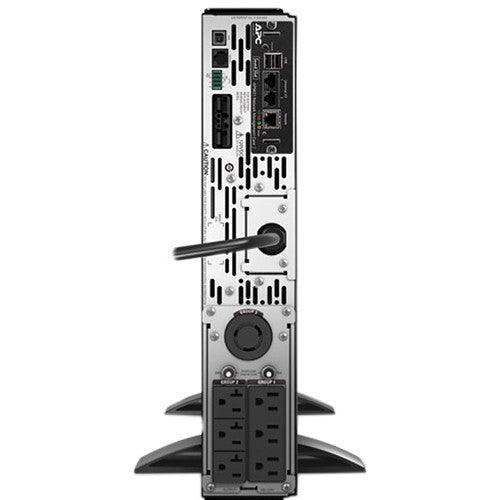

The SMX3000RMLV2UNC provides 2880VA of output through a line-interactive design with automatic voltage regulation (AVR), correcting input sags and surges without drawing on the battery and conserving runtime for genuine outages. Output is pure sine wave, suited to the switch-mode power supplies in servers, AV processors, and networking equipment. The chassis is rack/tower convertible in a compact 2U format, mounting in standard 19-inch racks or operating freestanding. It runs at 100V to 127V and distributes power through 3x NEMA 5-15R, 3x NEMA 5-20R, and 1x NEMA L5-30R outlets, covering standard and higher-current 120V devices. A factory-installed Network Management Card enables remote monitoring, control, and integration with management platforms, while PowerChute software coordinates graceful shutdown of connected systems. A front LCD shows status and configuration data for commissioning and service, and a rail kit is included for rack installation. Extended runtime is supported through compatible external battery packs.

Key Features

• 3kVA-class line-interactive design — Delivers conditioned 2880VA backup power with efficient operation for 120V rack and tower loads.
• Automatic voltage regulation (AVR) — Corrects sags and surges without using the battery, preserving runtime for real outages.
• Pure sine wave output — Supplies clean waveform for sensitive switch-mode power supplies in AV and IT gear.

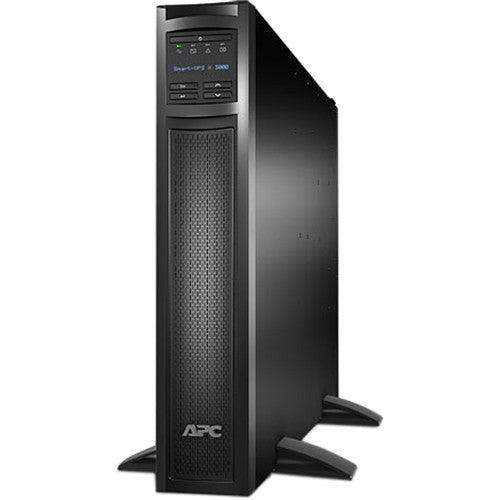

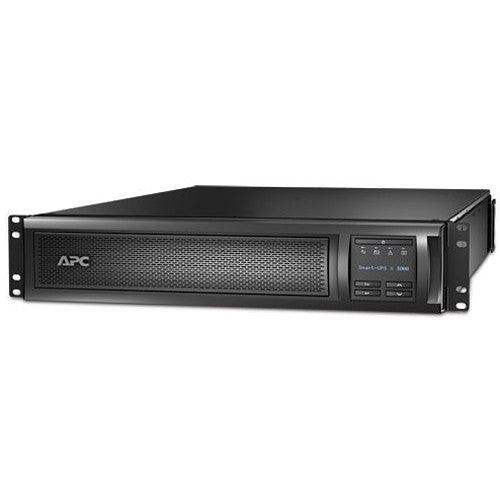

• Compact 2U rack/tower convertible chassis — Installs in 19-inch racks with a small footprint or stands alone.
• 100V to 127V operation — Matches North American equipment-room and AV-rack power.
• Mixed NEMA outlets — Provides 3x 5-15R, 3x 5-20R, and 1x L5-30R outlets for standard and higher-current devices.
• Factory-installed Network Management Card — Enables remote monitoring, control, and management integration out of the box.
• Included rail kit and extended runtime support — Eases rack mounting and accepts external battery packs for longer backup.

Typical Applications

• Conference room — Keeps AV racks, codecs, and control systems powered through utility events.
• Training room — Protects presentation and recording equipment from disruptive dropouts.
• Commercial meeting space — Supports distributed 120V AV and IT hardware across connected rooms.
• House of worship — Maintains audio, video, and control systems during services through brief outages.

Technical Specifications

Specifications sourced from Schneider Electric (APC) product data.

Frequently Asked Questions

What loads is the SMX3000RMLV2UNC designed for?
It is built for 120V racks running servers, networking equipment, and AV systems that need conditioned backup power in the 3kVA class.

Is it rack-mountable?
Yes. The compact 2U chassis is rack/tower convertible and ships with a rail kit for standard 19-inch racks; it can also operate as a tower.

How does it integrate with management software?
A factory-installed Network Management Card enables remote monitoring and control, and PowerChute software coordinates graceful shutdown of connected systems.

What outlets does it provide?
It offers 3x NEMA 5-15R, 3x NEMA 5-20R, and 1x NEMA L5-30R outlets to power standard and higher-current 120V devices.

Can the runtime be extended?
Yes. The unit supports extended runtime through compatible APC external battery packs.

What warranty and support are available?
The UPS is covered under Schneider Electric's standard warranty and support program; refer to current Schneider Electric documentation for specific terms.
