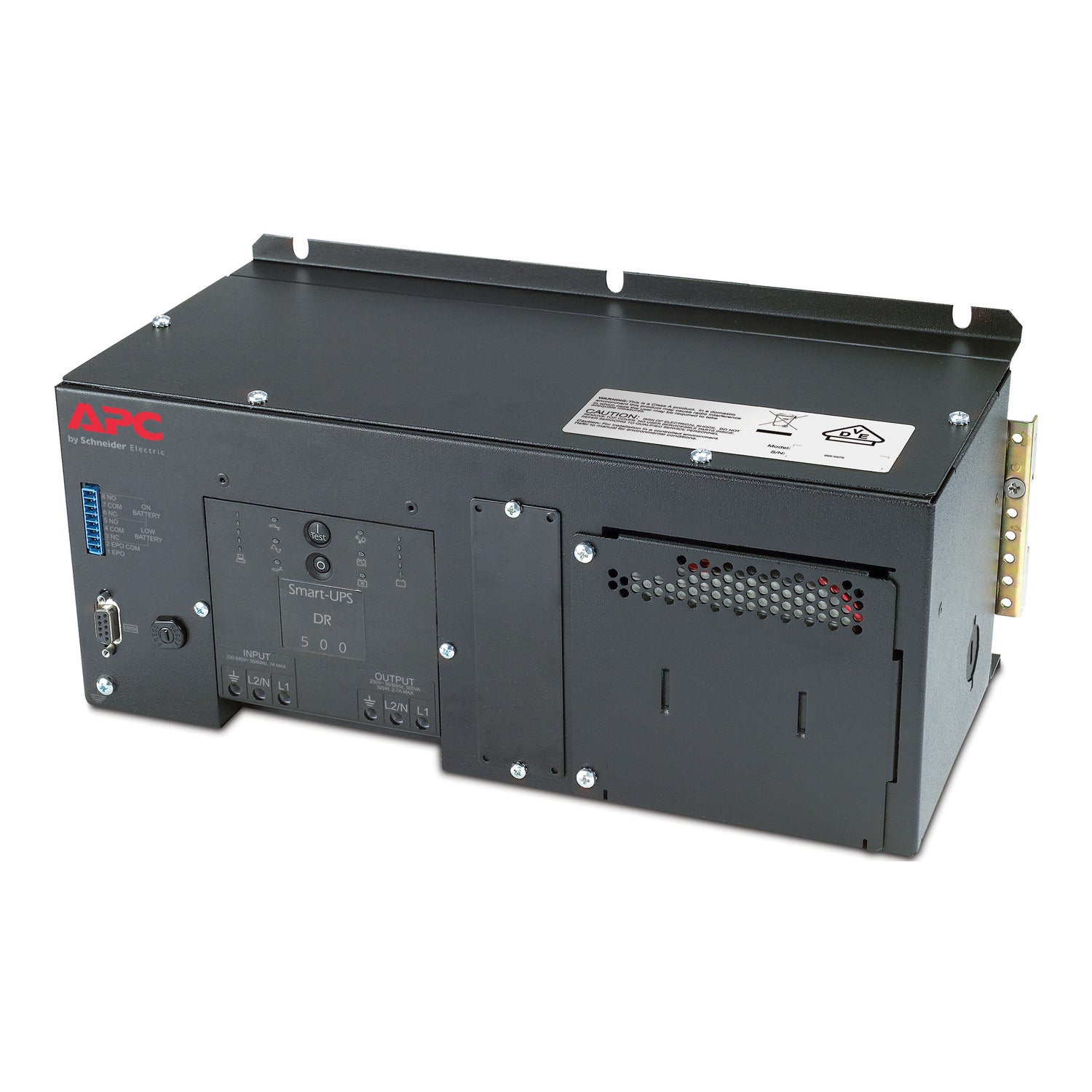

APC Smart-UPS SUA500PDRI 500VA 230V DIN Rail
APC Smart-UPS SUA500PDRI 500VA 230V DIN Rail is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
APC Smart-UPS SUA500PDRI 500VA 230V DIN Rail
Product Overview
The APC Smart-UPS SUA500PDRI is a 500VA DIN rail-mount UPS for 230V industrial and commercial automation installations, providing battery backup and voltage regulation for programmable logic controllers, industrial automation equipment, and building management system components mounted in DIN rail enclosures. Designed for light industrial, commercial automation, and building controls applications, this unit installs directly on standard 35mm DIN rails within control panels and equipment enclosures where traditional rack or tower UPS units are not practical.
Product Description
The SUA500PDRI addresses the power protection gap in commercial building automation, industrial control, and light manufacturing environments where critical control components are housed in DIN rail enclosures rather than equipment racks. AV integrators designing systems with building automation integration — particularly Crestron, AMX, or Extron control systems interfaced with BMS, HVAC, or lighting control hardware — may find the SUA500PDRI appropriate for protecting control panel components that interface with AV systems. At 500VA with 230V output, this unit is sized for individual control components or small panels of control electronics. The DIN rail mount design requires no additional mounting hardware beyond what is already present in a standard control panel. Automatic voltage regulation maintains stable output voltage during utility fluctuations common in light industrial environments. Battery backup provides protection time for safe equipment shutdown or brief utility interruptions.
Key Features
- DIN Rail Mounting — Direct installation on standard 35mm DIN rails in control panels and enclosures.
- 500VA Capacity — Appropriate for individual control components and small automation panels.
- 230V Output — Designed for 230V commercial and light industrial power systems.
- Automatic Voltage Regulation — Stable output during input voltage fluctuations.
- Compact Design — Minimal control panel space consumption.
- Battery Backup — Protection against brief utility interruptions for safe shutdown.
Typical Applications
- Building automation and BMS control panel power protection
- Industrial control system panel UPS for 230V systems
- Light manufacturing PLC and control component backup
- Commercial HVAC and lighting control system protection
Technical Specifications
| Specification | Value |
|---|---|
| Model | SUA500PDRI |
| Capacity | 500VA |
| Input Voltage | 230V |
| Output Voltage | 230V |
| Form Factor | DIN Rail Mount (35mm) |
| Topology | Line-Interactive |
| Warranty | 2 Years |
Frequently Asked Questions
- Is the SUA500PDRI suitable for protecting a Crestron or AMX control processor in a building automation panel?
- Yes. The DIN rail form factor and 500VA capacity make the SUA500PDRI appropriate for protecting low-power control processors, communication gateways, and interface modules in commercial building automation and AV control panels operating on 230V.
- Does this UPS require any additional mounting hardware?
- No. The SUA500PDRI snaps directly onto a standard 35mm DIN rail without additional brackets or hardware.
- Is this suitable for 120V North American systems?
- No. The SUA500PDRI is a 230V unit. For DIN rail UPS protection on 120V North American systems, see the SUA750DR1 or SUA1000DR1.
