APC Smart-UPS SRT6KRMXLT 6000VA RM 208V
Product Overview
The APC Smart-UPS SRT6KRMXLT is a 6000VA / 5400W double-conversion on-line UPS in a 4U rackmount chassis with 208V input and output, designed for high-capacity commercial AV, broadcast, and data center rack deployments requiring on-line power protection at the 208V distribution level. This unit provides zero-transfer-time power protection with scalable runtime through external APC SRT battery packs, and accepts an optional NMC for enterprise SNMP and EcoStruxure IT monitoring. The 208V design serves dedicated commercial power circuits found in broadcast facilities, command centers, and enterprise AV rooms.
Product Description
At 6000VA / 5400W, the SRT6KRMXLT is engineered for high-density 208V commercial AV racks where a single UPS must protect multiple high-draw devices including broadcast-grade routing switchers, video processing systems, rack servers, and large AV distribution systems. Double-conversion on-line topology ensures complete galvanic isolation from utility power, delivering consistently clean 208V output regardless of input power quality — a critical requirement for broadcast-grade AV equipment where power disturbances cause visible artifacts or system crashes. The 4U chassis installs in standard 19-inch racks. External APC SRT 192V battery packs extend runtime, and the SmartSlot accepts optional APC NMC for enterprise monitoring. Multiple 208V NEMA output receptacles serve the full range of L6-configured equipment connectors common in commercial AV and data center hardware.
Key Features
- 6000VA / 5400W Capacity — High-density 208V on-line protection for broadcast and enterprise AV racks.
- Double-Conversion On-Line Topology — Zero transfer time; complete 208V isolation from input power.
- 208V Input/Output — Dedicated commercial 208V circuit compatibility.

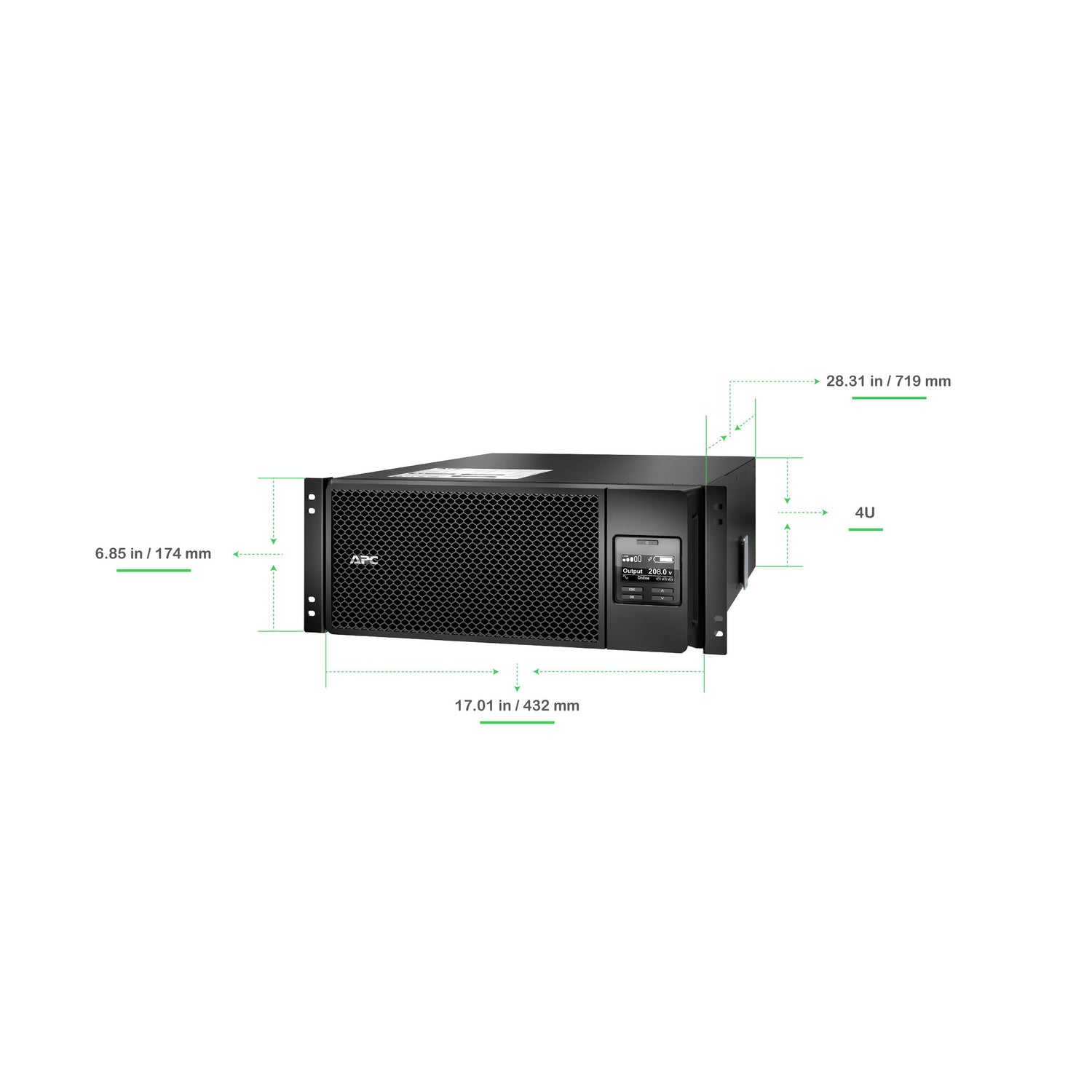

- 4U Rackmount — Standard 19-inch installation with rail kit.
- Scalable Runtime — External APC SRT 192V battery packs for extended protection.
- SmartSlot — Optional NMC for enterprise SNMP and EcoStruxure IT monitoring.
- Pure Sine Wave Output — Broadcast-grade clean power output.
Typical Applications
- Broadcast studio router and switching system power protection
- Command and control center high-capacity 208V power
- Enterprise data center 208V rack UPS
- Large commercial AV installations on 208V distribution
- Video production facility power infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Model | SRT6KRMXLT |
| Capacity | 6000VA / 5400W |
| Topology | Double-Conversion On-Line |
| Input Voltage | 208V |
| Output Voltage | 208V |
| Output Waveform | Pure Sine Wave |
| Form Factor | 4U Rackmount |
| SmartSlot | Yes (optional NMC) |
| External Battery | Compatible with APC SRT 192V battery packs |
| Warranty | 2 Years |
Frequently Asked Questions
- Is the SRT6KRMXLT appropriate for a broadcast master control room?
- Yes. At 6000VA / 5400W with double-conversion on-line topology, the SRT6KRMXLT is suitable for broadcast master control room power protection including routing switchers, video processing systems, and associated infrastructure on 208V circuits.
- What is the difference between the SRT5KRMXLT and SRT6KRMXLT?
- The SRT6KRMXLT provides 1000VA more capacity than the SRT5KRMXLT and occupies 4U vs 3U in the rack. Specify the SRT6KRMXLT for racks where the combined load exceeds 4500W.
- Are extended runtime battery packs available?
- Yes. APC SRT 192V battery packs are compatible with the SRT6KRMXLT. Contact Creation Networks for battery pack availability and runtime calculations for your specific load.
