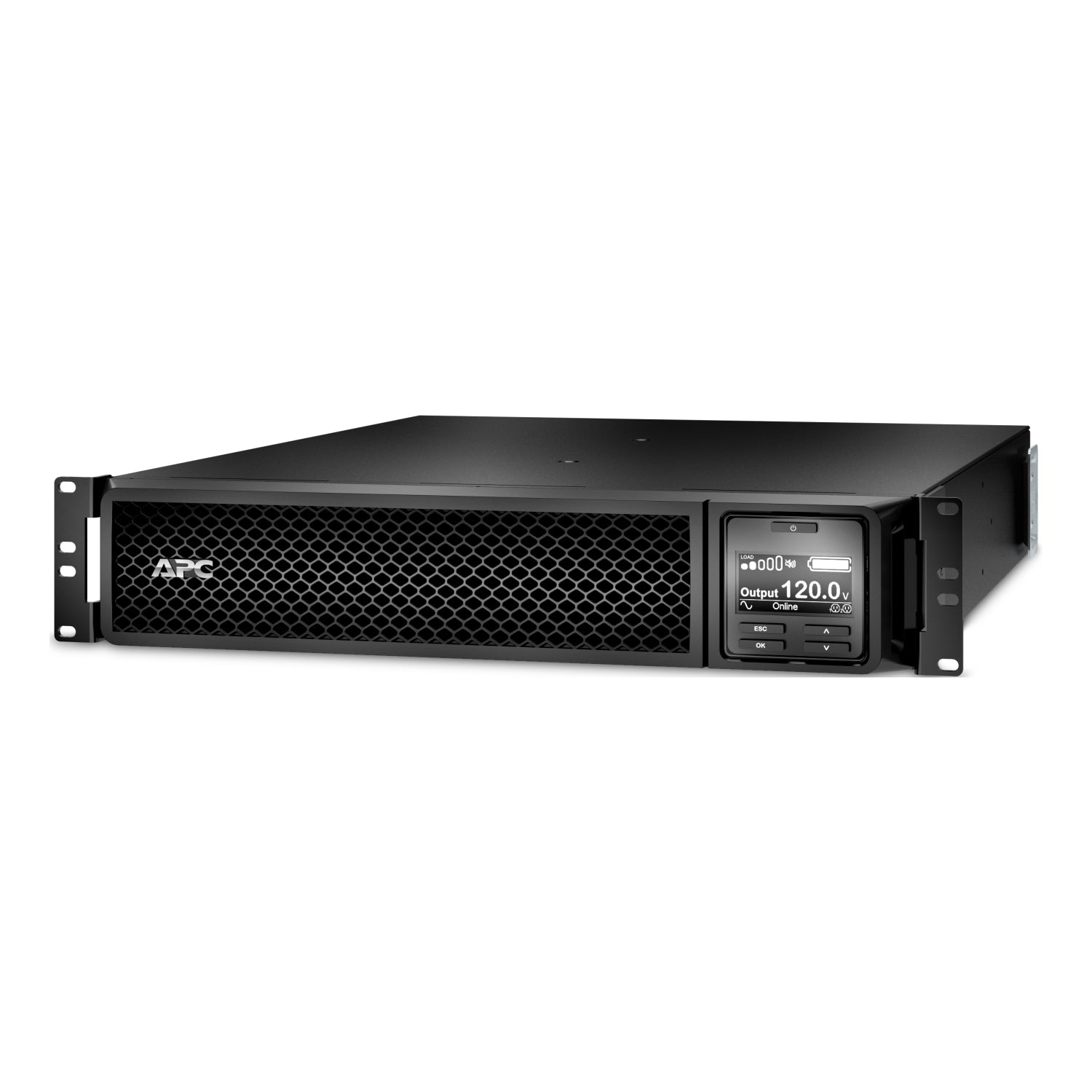

APC Smart-UPS SRT3000RMXLA 3000VA Sinewave RM 2U 120V

Product Overview

The APC Smart-UPS SRT3000RMXLA is a 3000VA / 2700W double-conversion on-line UPS in a 2U rackmount chassis, providing the highest capacity in the 120V SRT rackmount line with zero-transfer-time power protection and scalable runtime for mission-critical commercial AV and IT deployments. This unit continuously delivers clean, regulated power independent of input conditions, making it appropriate for broadcast infrastructure, command centers, and high-density AV racks where power quality issues or transfer time cannot be tolerated. SmartSlot accepts optional NMC for enterprise SNMP monitoring, and multiple external SRT battery packs extend runtime.

Product Description

The SRT3000RMXLA delivers 2700W of double-conversion on-line protection in a standard 2U rack footprint — a high power density that accommodates video wall controllers, AV-over-IP switching systems, rack servers, and broadcast distribution equipment in commercial AV environments with demanding runtime requirements. Double-conversion topology provides complete galvanic isolation between input and output, eliminating the full spectrum of power quality issues including switching transients, frequency variations, and harmonic distortion that affect sensitive AV processing equipment. The 2U chassis installs in standard 19-inch racks with the included rail kit. External APC SRT battery packs scale runtime linearly to meet the requirements of 24/7 commercial operations or extended outage scenarios. High-efficiency mode reduces operational energy cost while maintaining full protection. SmartSlot supports optional APC network management cards for SNMP and EcoStruxure IT integration in enterprise environments.

Key Features

• 3000VA / 2700W Capacity — Maximum 120V 2U rackmount on-line capacity for high-density AV and IT racks.
• Double-Conversion On-Line Topology — Zero transfer time; complete input/output isolation.
• Scalable Runtime — Supports up to 10 external APC SRT battery packs.

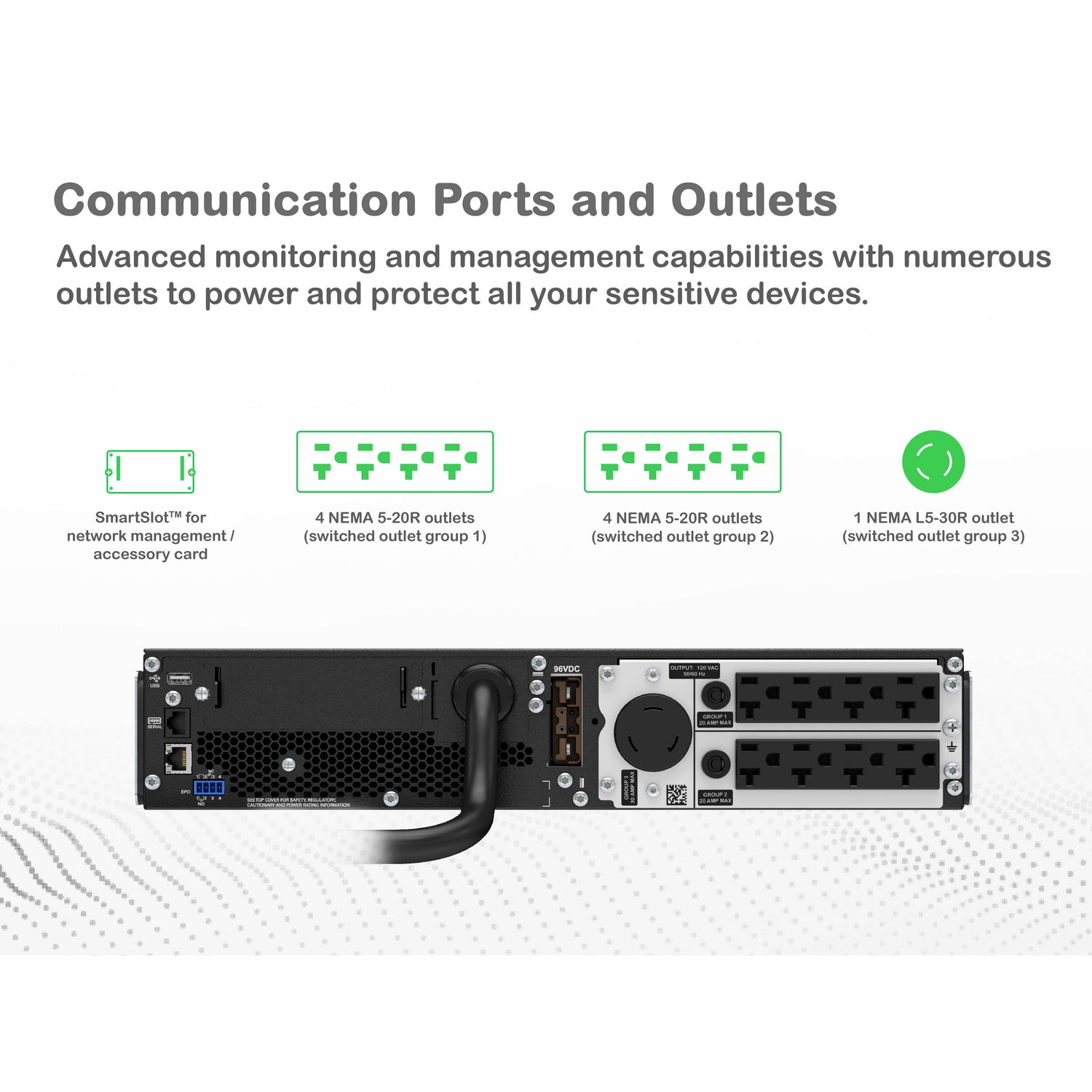

• SmartSlot — Optional NMC for enterprise SNMP and EcoStruxure IT monitoring.

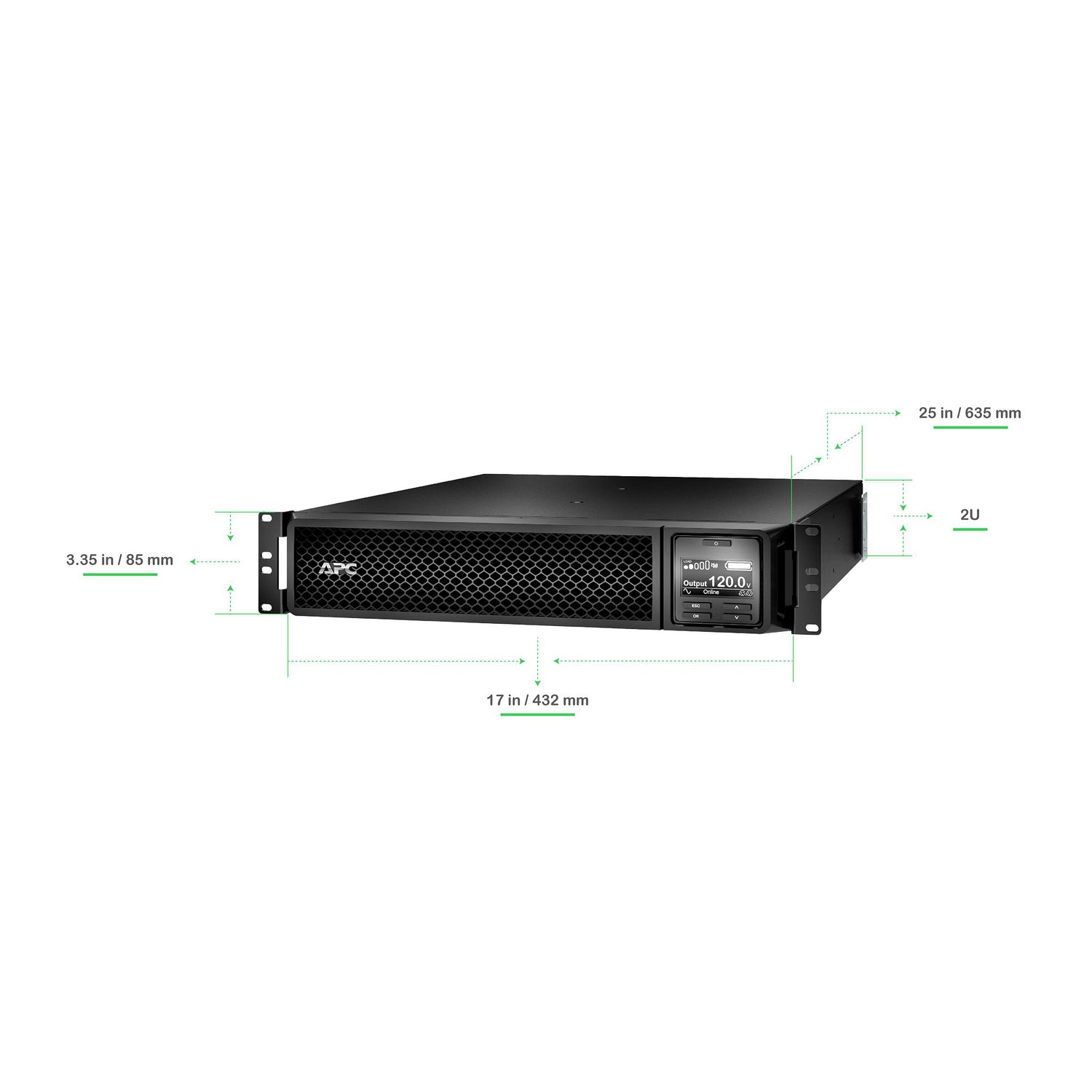

• 2U Rackmount — Standard 19-inch installation with included rail kit.
• High-Efficiency Mode — Reduces operational energy consumption.
• Pure Sine Wave Output — Clean power for all connected AV and IT equipment.
• Wide Input Voltage Window — Minimizes battery engagement during input fluctuations.

Typical Applications

• Mission-critical broadcast studio and production AV racks
• Command and control center power infrastructure
• High-density video wall and AV-over-IP deployments
• Enterprise data closet with zero-transfer-time requirements
• Healthcare and government AV systems requiring on-line UPS topology

Technical Specifications

Frequently Asked Questions

When should I specify the SRT3000RMXLA instead of the SMT3000RM2UC?

Specify the SRT3000RMXLA when the application requires zero transfer time, complete input/output isolation, or protection from frequency variations — typical requirements for broadcast, medical, and mission-critical commercial AV environments. The SMT3000RM2UC is appropriate for standard commercial AV deployments with good utility power.

Is the SRT3000RMXLA available with an NMC pre-installed?

Yes. The SRT3000RMXLA-NC includes a factory-installed network management card. An NMC can also be purchased separately and installed in the SmartSlot of the SRT3000RMXLA.

What external battery packs are compatible?

APC SRT external battery packs including the SRT72BP, SRT96BP, and SRT192RMBP are compatible with the SRT3000RMXLA. Visit creationnetworks.net or contact our team for current battery pack availability and runtime calculations.
