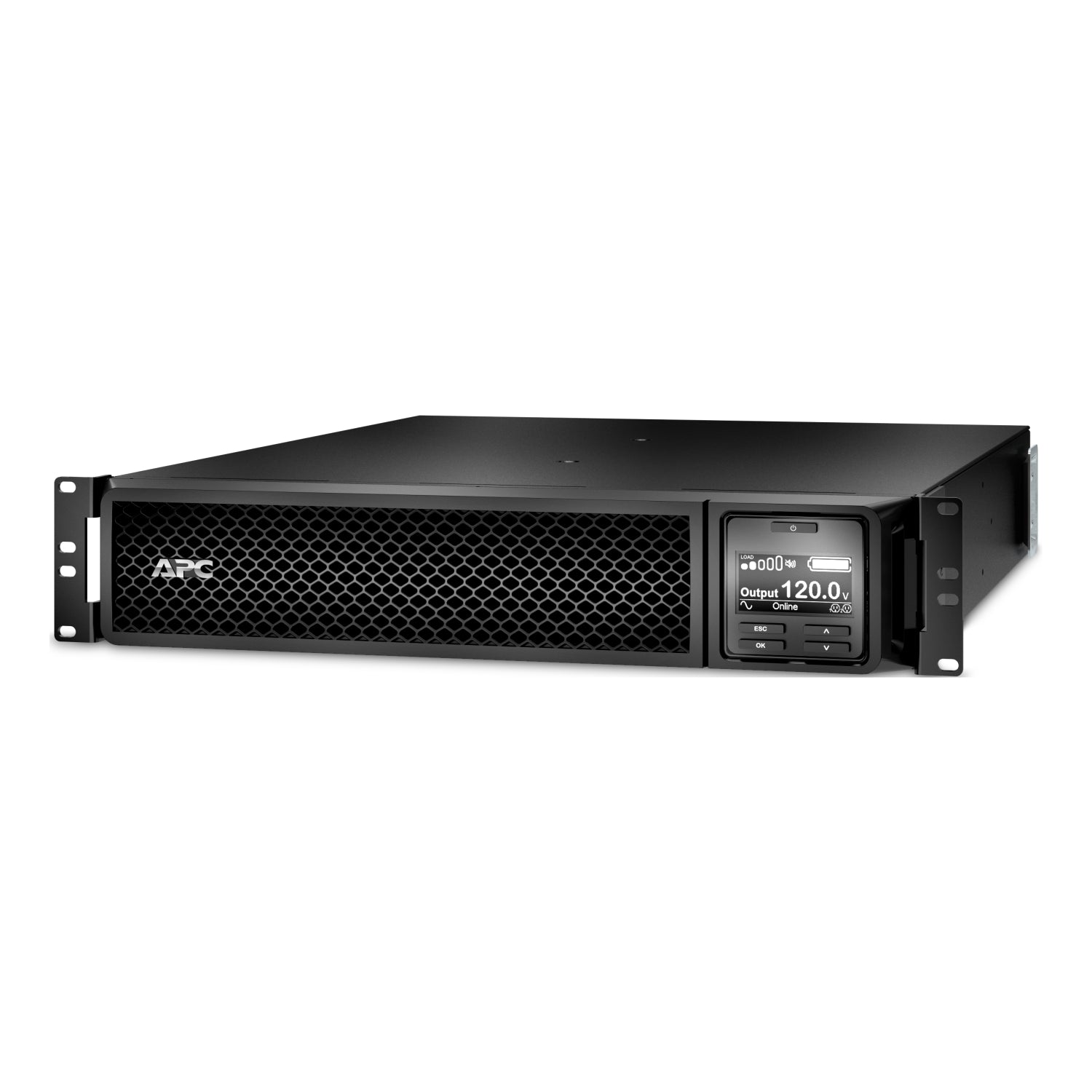

APC Smart-UPS SRT2200RMXLA 2200VA Sinewave RM 2U 120V

Product Overview

The APC Smart-UPS SRT2200RMXLA is a 2200VA / 1980W double-conversion on-line UPS in a 2U rackmount chassis, delivering zero-transfer-time power protection with scalable runtime for high-capacity commercial AV and IT rack deployments where on-line topology is required. The SRT2200RMXLA continuously regenerates clean power output independent of input conditions, eliminating transfer time and ensuring uninterrupted operation for AV over IP systems, broadcast equipment, and sensitive servers. SmartSlot accepts optional APC network management cards for enterprise monitoring, and compatible external battery packs extend runtime for critical loads.

Product Description

At 2200VA / 1980W, the SRT2200RMXLA handles high-draw AV rack configurations — video wall processors, AV-over-IP encoding systems, managed core switches, and rack servers — with the power quality assurance of double-conversion on-line topology. The continuous double-conversion process isolates connected equipment from input power, eliminating voltage fluctuations, frequency variations, and switching transients that can disrupt sensitive AV and IT equipment in commercial environments with poor power quality. The 2U rackmount chassis installs in standard 19-inch racks with included rail kit hardware. External APC SRT battery packs scale runtime to meet extended outage requirements in commercial AV deployments where 24/7 operation is expected. A high-efficiency operating mode reduces energy consumption during normal operation, which is relevant for commercial installations with energy management requirements. SmartSlot accepts optional NMC for SNMP and EcoStruxure IT integration.

Key Features

• 2200VA / 1980W Capacity — High-capacity on-line protection for demanding AV and IT rack configurations.
• Double-Conversion On-Line Topology — Zero transfer time; complete input/output isolation for sensitive equipment.
• Scalable Runtime — External APC SRT battery packs extend runtime for critical AV loads.

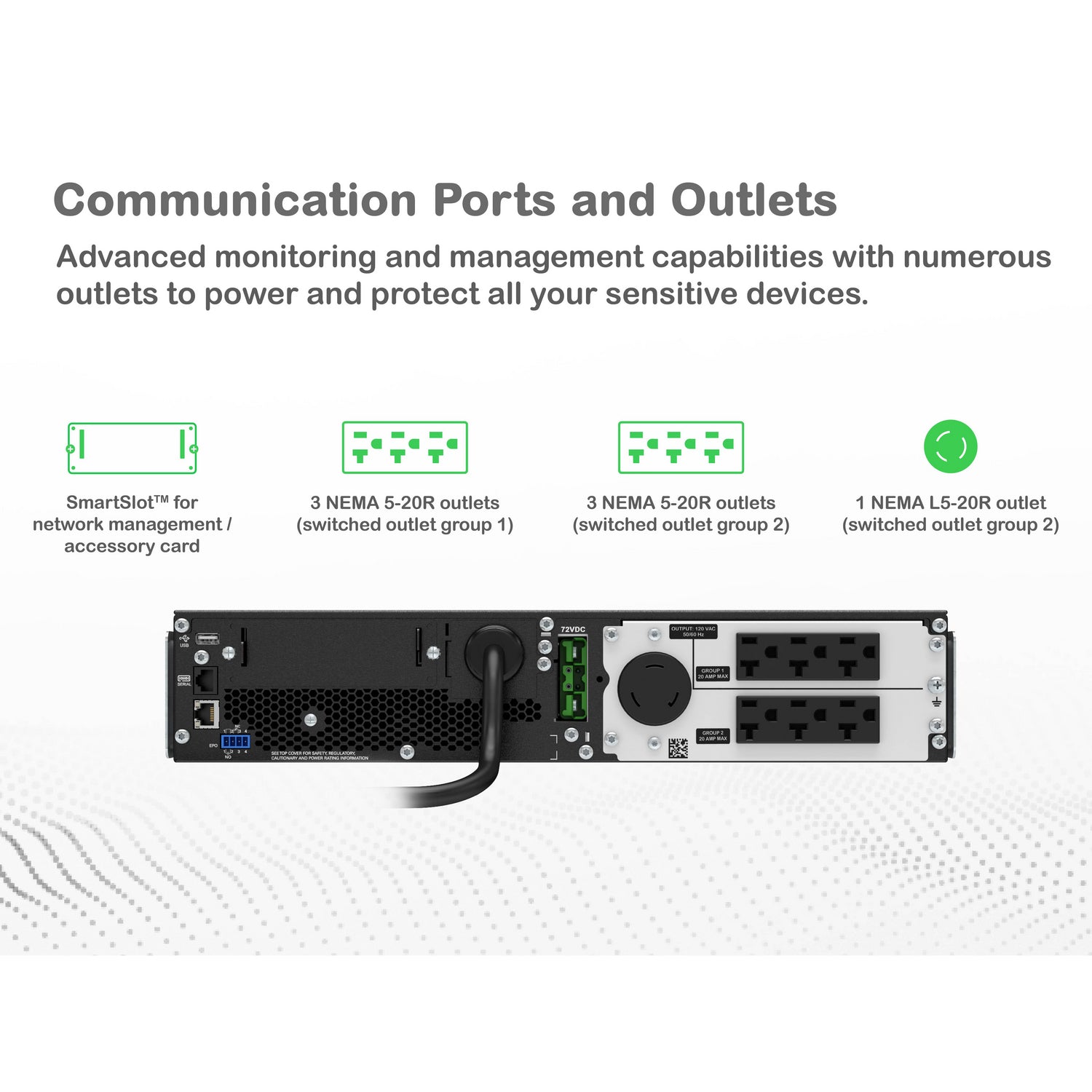

• SmartSlot — Accepts optional NMC for SNMP and enterprise monitoring.

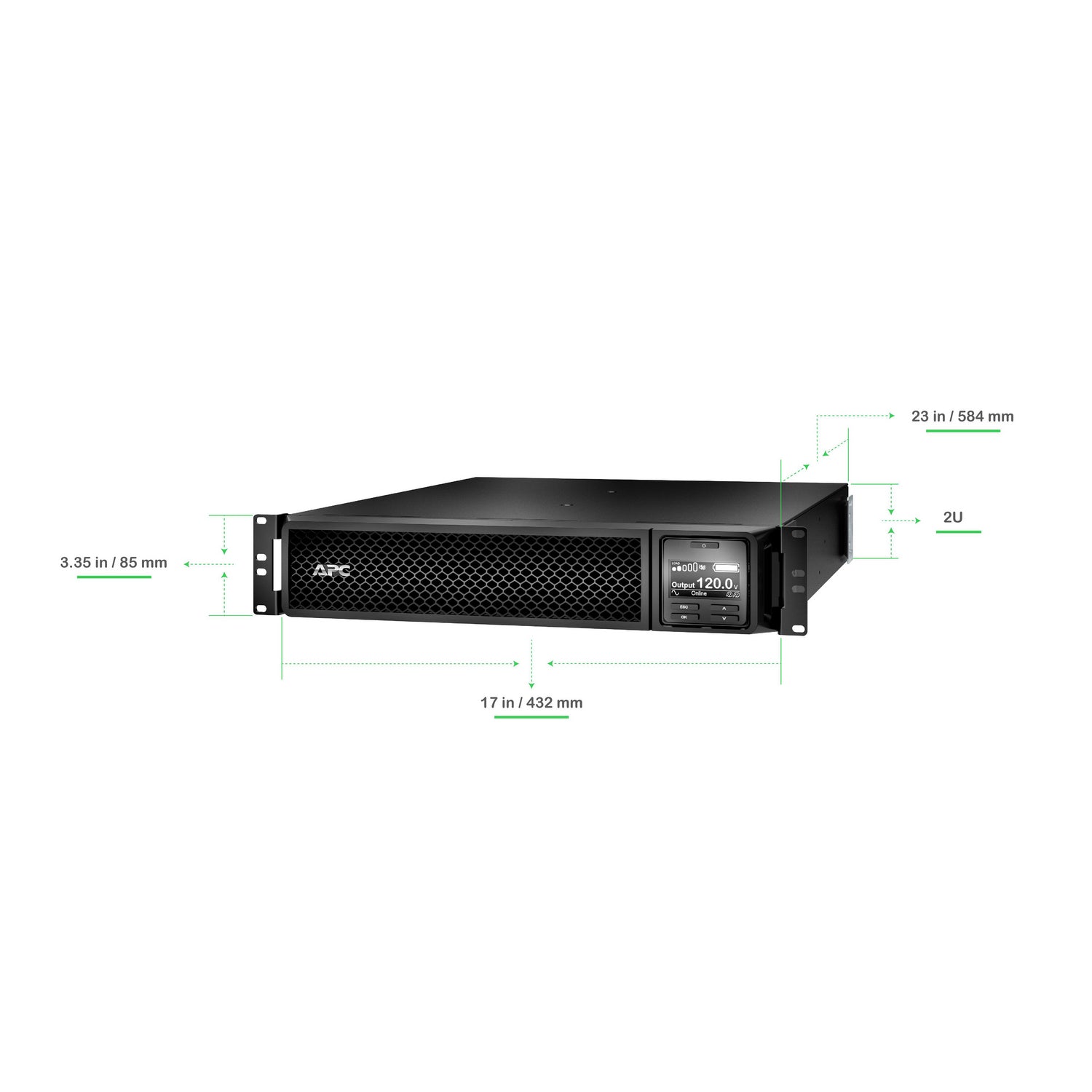

• 2U Rackmount — Standard 19-inch rack installation with rail kit.
• High-Efficiency Mode — Reduces operational energy cost for commercial deployments.
• Wide Input Voltage Window — Tolerates a broad range of input conditions without switching to battery.
• Pure Sine Wave Output — Clean power for all active PFC and sensitive electronics.

Typical Applications

• Video wall processor and AV-over-IP rack protection
• Broadcast studio and production infrastructure
• Command and control center AV power management
• Data center and server room with sensitive load requirements
• Government and healthcare enterprise AV deployments

Technical Specifications

Frequently Asked Questions

Should I specify the SRT2200RMXLA or SMT2200RM2UC for a boardroom AV rack?

For environments with good power quality and a short (2–4ms) transfer time tolerance, the line-interactive SMT2200RM2UC is cost-effective. For environments with poor power quality, sensitive AV processing equipment, or zero-tolerance for transfer time, the double-conversion SRT2200RMXLA is the correct specification.

Can I add an NMC after purchase?

Yes. An APC network management card can be installed in the SmartSlot at any time. The SRT2200RMXLA does not include an NMC. For a pre-installed NMC configuration, see the SRT2200RMXLA-NC.

How many external battery packs can be connected?

The SRT2200RMXLA supports up to 10 external APC SRT battery packs for maximum extended runtime. Contact Creation Networks for runtime curve data based on your specific connected load.
