APC Smart-UPS SRT10KRMXLT 10kVA RM 208V

Product Overview

The APC Smart-UPS SRT10KRMXLT is a 10000VA / 9000W double-conversion on-line UPS in a 6U rackmount chassis with 208V input and output, providing the highest capacity in the 208V SRT rackmount line for enterprise data centers, broadcast facilities, and mission-critical commercial AV infrastructure requiring maximum on-line protection. This unit delivers zero-transfer-time power protection at 10kVA, supports scalable runtime through external APC SRT 192V battery packs, and accepts optional NMC for enterprise SNMP and EcoStruxure IT integration. Designed for the largest and most demanding commercial AV and IT power protection requirements at 208V.

Product Description

At 10000VA / 9000W, the SRT10KRMXLT is specified for the largest commercial AV and IT rack deployments operating on 208V distribution — broadcast operations centers, large-scale command and control installations, video production facilities with multiple high-draw server and processing systems, and enterprise data closets where a single UPS must carry the full rack load. Double-conversion on-line topology provides complete galvanic isolation from utility power, regenerating clean 208V output continuously regardless of input power quality. The 6U rackmount chassis fits standard 19-inch racks. External APC SRT 192V battery packs scale runtime for 24/7 commercial operations. Internal bypass maintains power during UPS maintenance or servicing without interrupting connected equipment. SmartSlot accepts optional APC NMC for SNMP, web, and EcoStruxure IT management from the enterprise level.

Key Features

• 10000VA / 9000W Capacity — Maximum 208V rackmount on-line capacity for the largest commercial AV racks.
• Double-Conversion On-Line Topology — Zero transfer time; complete 208V galvanic isolation.
• 208V Input/Output — Commercial 208V distribution circuit compatibility.

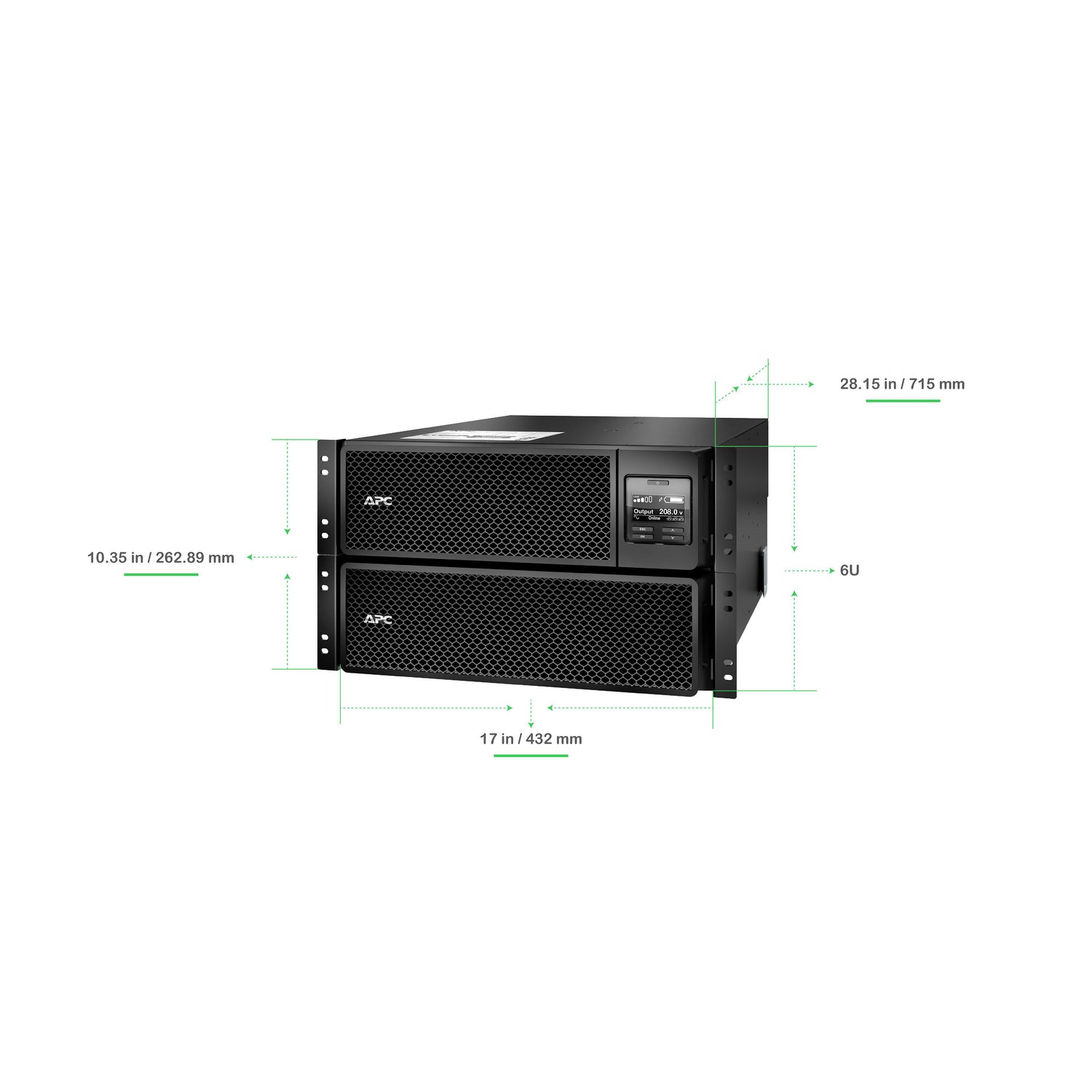

• 6U Rackmount — Standard 19-inch installation for maximum capacity deployments.
• Scalable Runtime — Multiple external APC SRT 192V battery packs.
• Internal Bypass — Continuous power during UPS maintenance.
• SmartSlot — Optional NMC for enterprise SNMP and EcoStruxure IT.
• Pure Sine Wave Output — Broadcast-grade clean 208V power output.

Typical Applications

• Broadcast operations centers and production facility power
• Large-scale command and control center AV infrastructure
• Enterprise data center maximum-capacity 208V UPS
• Video production facility with multiple high-draw processing systems
• Mission-critical government and military AV and IT installations

Technical Specifications

Frequently Asked Questions

Is the SRT10KRMXLT the highest capacity SRT rackmount model?

Yes. At 10000VA / 9000W, the SRT10KRMXLT is the highest capacity model in the APC Smart-UPS SRT 208V rackmount line.

What electrical infrastructure is required?

A dedicated 208V circuit rated for the unit's input current draw is required. Consult APC's datasheet for input current specifications and work with your electrical contractor to verify circuit capacity before installation.

Can this UPS be paralleled with another SRT10KRMXLT for redundancy?

The SRT series does not support native paralleling for redundancy. For N+1 UPS redundancy in large commercial AV deployments, consult Creation Networks for appropriate APC Symmetra or Modular Ultra solutions.

What service and support options are available?

APC offers extended warranty and on-site service plans for the SRT series. Contact Creation Networks for current service contract pricing for commercial AV and data center deployments.
