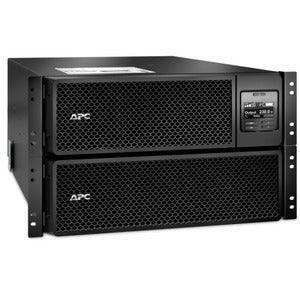

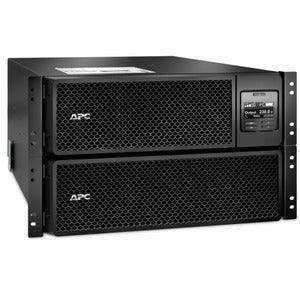

APC SRT10KRMXLI Smart-UPS SRT 10000VA RM - UPS - 10 kW - 10000 VA

Product Overview

The APC Smart-UPS On-Line SRT10KRMXLI is a 10kVA/10kW double-conversion online UPS built for high-density rack and tower deployments that demand continuous, conditioned power. As a 10kVA online UPS, it delivers pure sine wave output and true double-conversion topology to protect critical AV signal chains, servers, and networking gear. This APC Smart-UPS SRT model suits environments where a single power disturbance would interrupt live production or mission-critical workloads. It pairs full-time power conditioning with scalable runtime through external battery packs.

Product Description

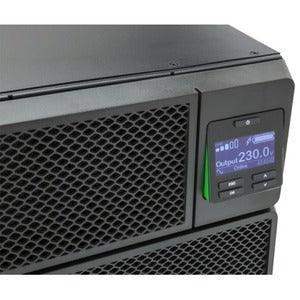

The SRT10KRMXLI uses online double-conversion to isolate connected equipment from the utility feed, regenerating a clean 230V/400V output regardless of input sags, surges, or frequency drift. The 6U rack/tower convertible chassis adapts to standard 19-inch racks or freestanding installations, giving integrators flexibility in equipment rooms and AV head-end closets. Output is delivered through 6x IEC 320 C13 and 4x IEC 60320 C19 outlets, with three IEC jumper cables included. An embedded Network Management Card provides out-of-band monitoring and control over the network, while an additional SmartSlot accepts further accessory cards. The unit supports PowerChute Network Shutdown for graceful, unattended shutdown of connected systems during extended outages. Hardwire input accommodates the higher current draw of a 10kW load. Runtime scales by adding compatible external battery packs, so a deployment can be sized to ride through brief blackouts or sustained events. The rackmount design and front-access LCD make status checks and configuration straightforward during commissioning and service.

Key Features

• 10kVA/10kW double-conversion topology — Continuously regenerates output power, isolating AV and IT loads from utility noise and disturbances.
• Pure sine wave output — Delivers clean waveform suited to sensitive switch-mode power supplies in servers, amplifiers, and signal processors.
• 6U rack/tower convertible chassis — Installs in 19-inch racks or stands alone, fitting equipment rooms and AV closets.
• 230V/400V operation — Supports single-phase and three-phase input scenarios for international and high-power deployments.

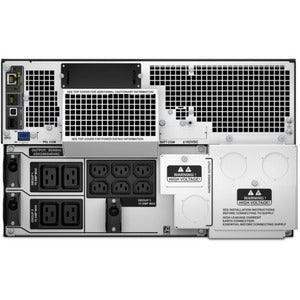

• 6x C13 and 4x C19 IEC outlets — Powers a mix of standard and higher-draw rack devices from one unit.
• Embedded Network Management Card plus SmartSlot — Enables network monitoring out of the box and adds room for an additional accessory card.
• PowerChute Network Shutdown support — Coordinates graceful shutdown of connected systems during prolonged outages.
• Scalable runtime via external battery packs — Extends backup time to match the criticality of the protected load.

Typical Applications

• Broadcast studio — Maintains uninterrupted power to production switchers, encoders, and routing infrastructure during utility events.
• Auditorium — Protects large-format projection, audio amplification, and control systems against dropouts mid-event.
• Commercial meeting space — Keeps distributed AV racks and networking online across multiple connected rooms.
• Government space — Supports continuity requirements for secure conferencing and command-and-control AV systems.

Technical Specifications

Specifications sourced from Schneider Electric (APC) product data.

Frequently Asked Questions

What equipment is the SRT10KRMXLI suited for?
It is designed for high-density racks running servers, networking gear, and AV production infrastructure that require continuous double-conversion protection at up to 10kW.

Can it be rack-mounted?
Yes. The 6U chassis is rack/tower convertible and installs in standard 19-inch racks, or stands alone as a tower in equipment rooms.

How does it integrate with AV and IT management systems?
An embedded Network Management Card provides network monitoring and control, an additional SmartSlot accepts accessory cards, and PowerChute Network Shutdown coordinates graceful shutdown of connected systems.

Can runtime be extended?
Yes. Runtime is scalable by adding compatible APC external battery packs sized to the criticality of the load.

What about replacement batteries?
APC offers replacement battery modules and external battery packs for the Smart-UPS On-Line SRT family; refer to Schneider Electric product documentation for the correct modules for this unit.

What warranty and support are available?
This UPS is covered under Schneider Electric's standard warranty and support program; consult current Schneider Electric documentation for specific terms.
