APC Smart-UPS SMT2200RM2UNC 2200VA LCD RM 2U 120V with Network Card

Product Overview

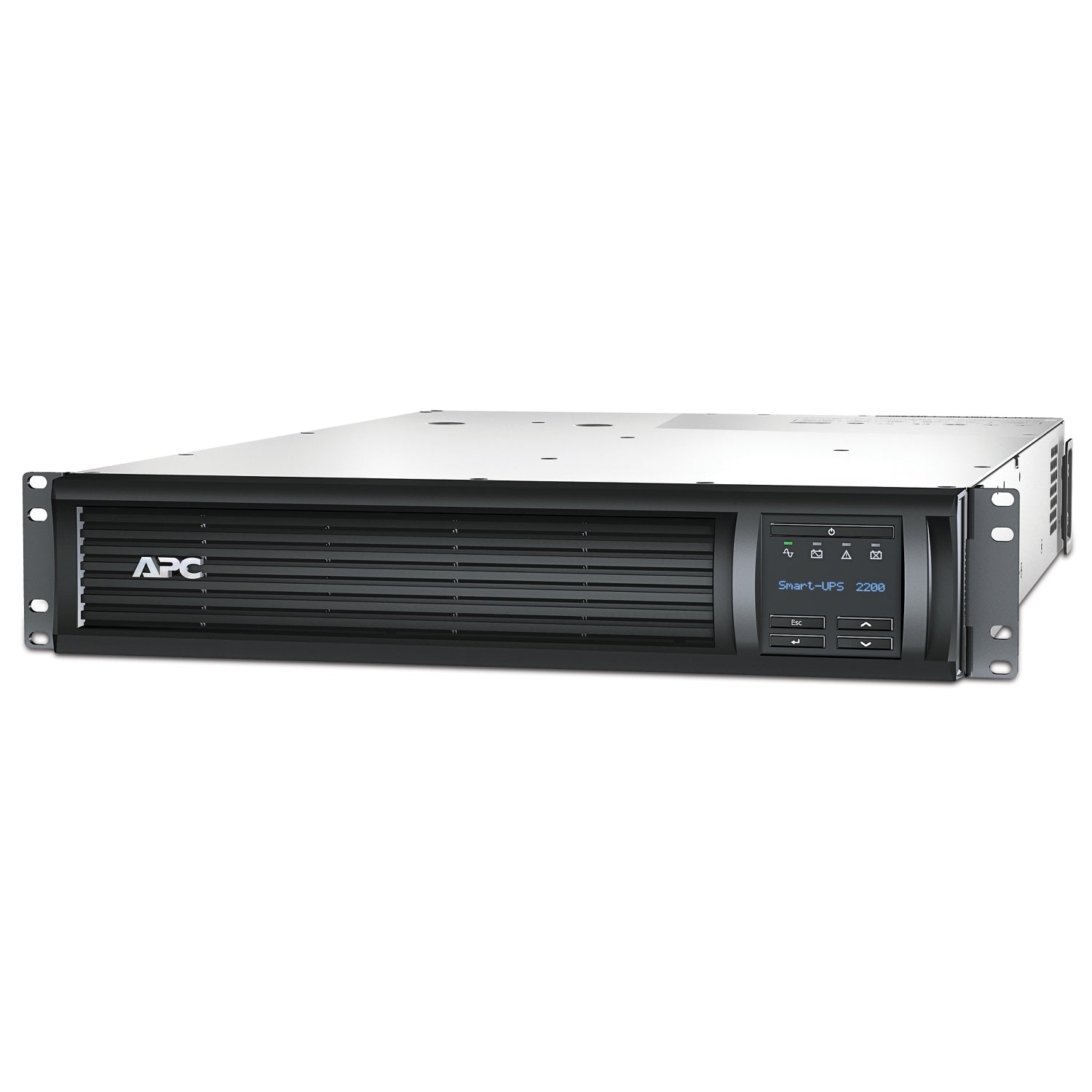

The APC Smart-UPS SMT2200RM2UNC is a 2200VA / 1980W line-interactive rackmount UPS with a pre-installed network management card, providing enterprise SNMP monitoring, web management, and EcoStruxure IT integration for high-capacity commercial AV and IT rack deployments. This unit eliminates the need for a separate NMC purchase in enterprise environments requiring full network visibility, making it the preferred specification for large boardrooms, command centers, and data closet installations. Pure sine wave output and automatic voltage regulation protect the full range of professional AV and IT equipment.

Product Description

At 2200VA with an integrated network management card, the SMT2200RM2UNC is engineered for AV and IT environments where both high capacity and enterprise monitoring are non-negotiable requirements. The pre-installed NMC enables SNMP integration with IT monitoring platforms and building management systems from day one, without field card installation. AV integrators deploying managed service contracts can remotely monitor UPS health, configure alerts, and generate runtime reports across multiple sites through APC's EcoStruxure IT platform. The 2U rackmount chassis installs in standard 19-inch racks with included hardware. Automatic voltage regulation manages brownouts and overvoltages continuously without battery draw. Eight NEMA 5-20R output receptacles support the higher-draw equipment in a 2200VA installation. Hot-swappable batteries support planned maintenance in 24/7 commercial environments without system shutdown.

Key Features

• 2200VA / 1980W Capacity — High-capacity protection for demanding AV and IT rack configurations.
• Pre-Installed Network Management Card — SNMP, web, and EcoStruxure IT monitoring without additional hardware.
• Pure Sine Wave Output — Full active PFC power supply compatibility.
• Enterprise SNMP Integration — Compatible with IT monitoring platforms and building management systems.
• Automatic Voltage Regulation — Continuous power quality management without battery use.

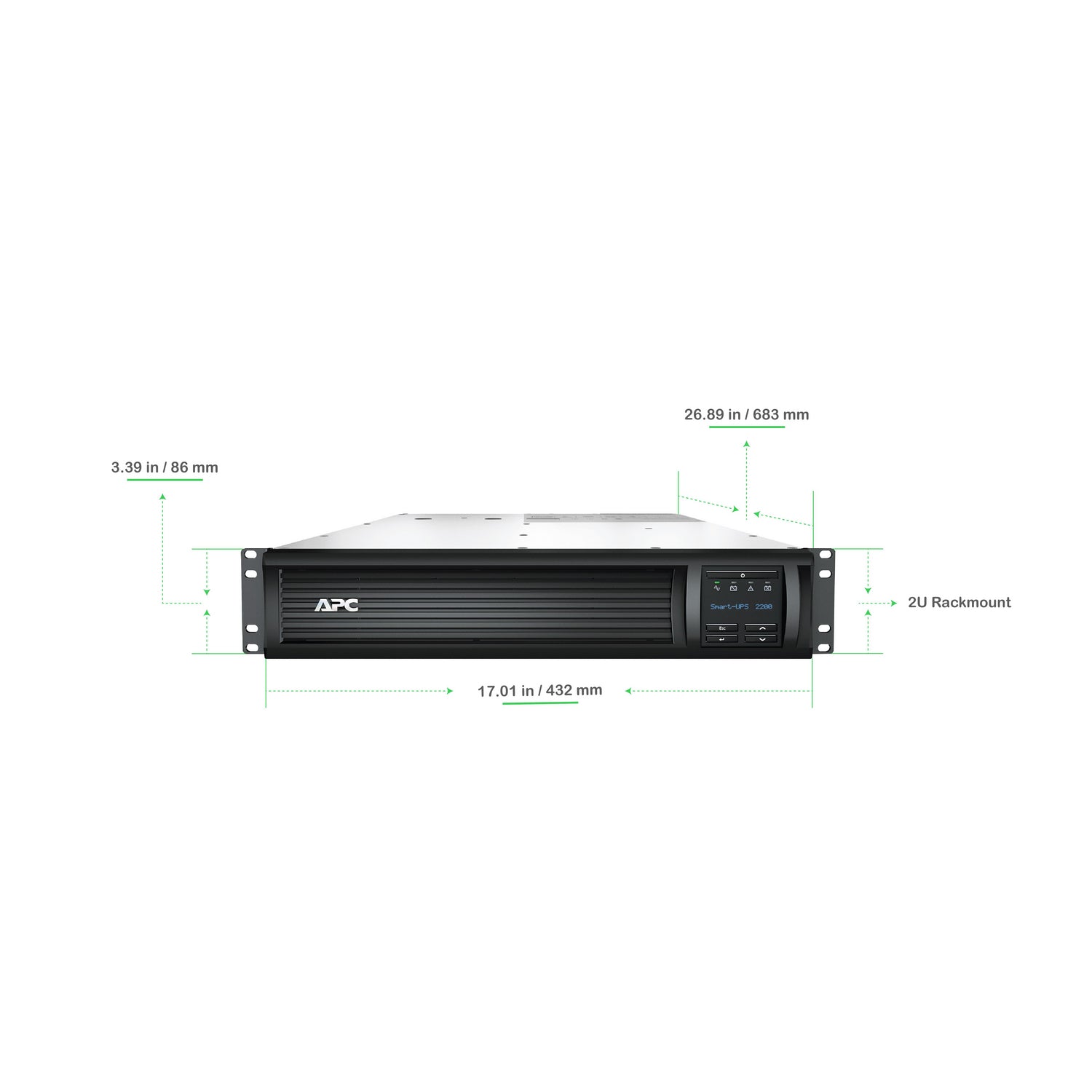

• 2U Rackmount — Standard 19-inch rack installation.
• Hot-Swappable Battery — Maintenance without system downtime.
• EcoStruxure IT Compatible — Cloud-based DCIM monitoring and management.

Typical Applications

• Enterprise boardroom and all-hands room AV infrastructure
• Command and control center power management
• Data center and server room with SNMP requirements
• Healthcare and government AV deployments
• Managed AV service contracts with remote monitoring SLAs

Technical Specifications

Frequently Asked Questions

What is the difference between SMT2200RM2UNC and SMT2200RM2UC?

The SMT2200RM2UNC includes a pre-installed network management card for SNMP and enterprise monitoring. The SMT2200RM2UC uses SmartConnect cloud monitoring via USB and does not include an NMC.

Can this UPS send SNMP traps to a monitoring platform?

Yes. The pre-installed NMC supports SNMP v1/v2c/v3 traps, enabling integration with Nagios, SolarWinds, PRTG, and other enterprise monitoring platforms used in AV and IT environments.

Is there an extended runtime option?

Yes. APC external battery packs compatible with the SMT2200RM2UNC are available to extend runtime for critical AV loads. Contact Creation Networks for compatible battery pack options.
