APC Smart-UPS On-Line SRT8KXLT-IEC 8000VA Tower 208V IEC
Product Overview

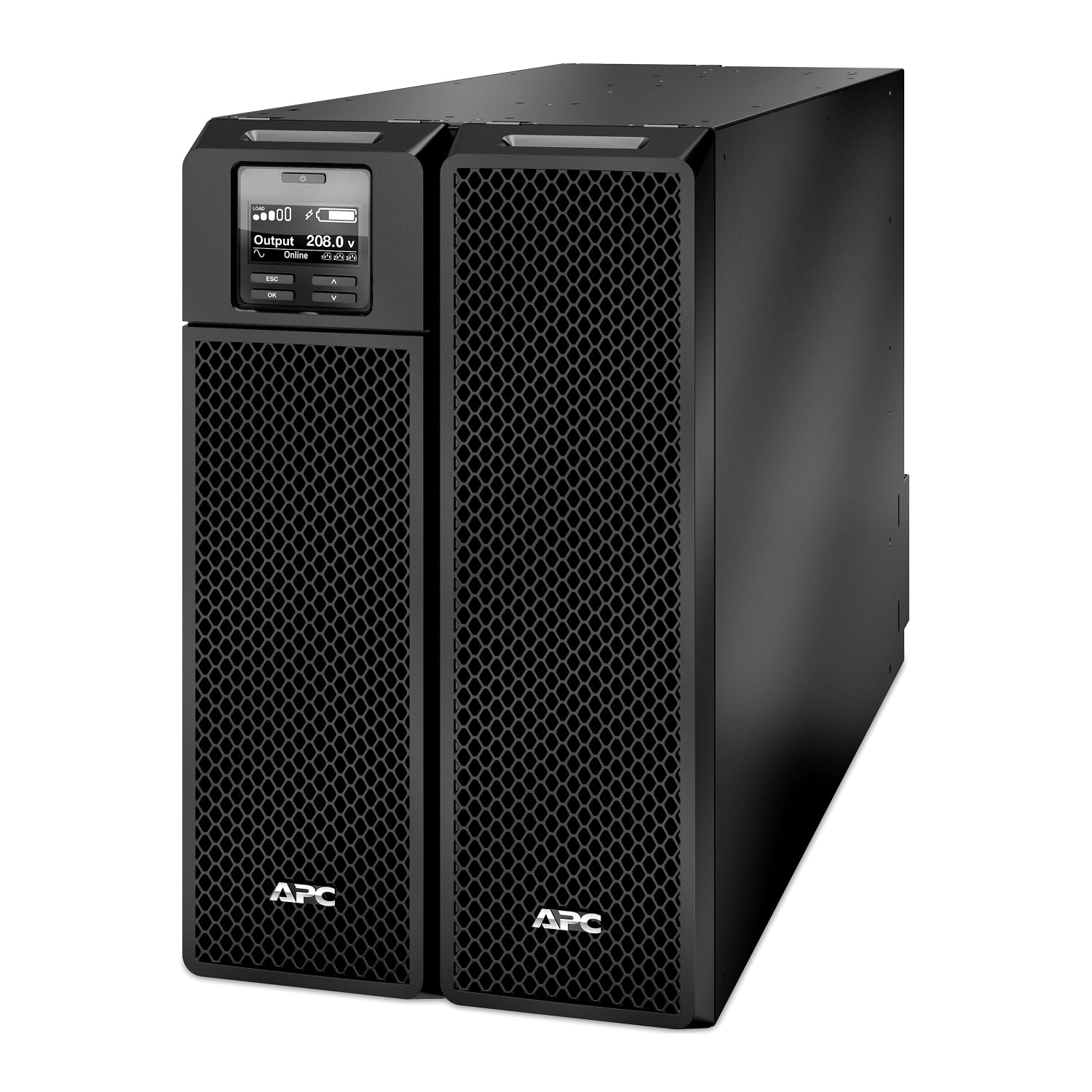

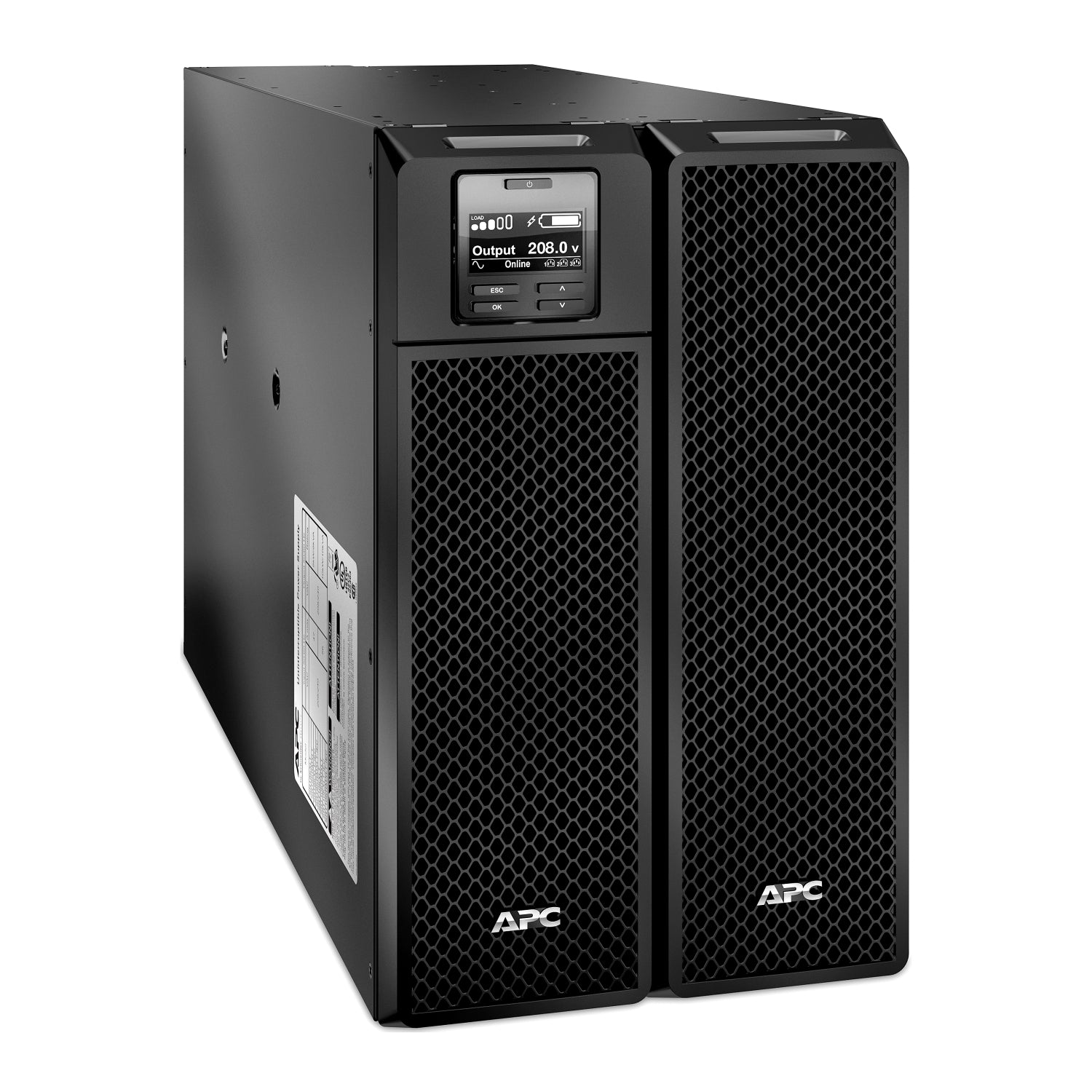

The APC Smart-UPS On-Line SRT8KXLT-IEC is an 8000VA / 7200W double-conversion on-line UPS in a tower chassis with 208V input and IEC 309 output receptacles, providing ultra-high-capacity zero-transfer-time power protection for broadcast production facilities, command centers, and enterprise AV systems using IEC-configured equipment in non-rack 208V environments. The continuously regenerated pure sine wave output delivers complete isolation from utility power quality events, appropriate for broadcast-grade and mission-critical commercial AV with IEC power inlet equipment. SmartSlot accepts optional NMC, and external SRT 192V battery packs scale runtime.
Product Description
The SRT8KXLT-IEC at 8000VA / 7200W is the IEC output version of the SRT8KXLT, specified when connected equipment uses IEC 309 power connectors — common in broadcast routing matrices, production servers, and international commercial AV hardware. Non-rack broadcast production rooms, command center equipment spaces, and large-scale AV production facilities are the primary deployment environments. Double-conversion topology regenerates clean 208V power continuously, eliminating the full spectrum of power quality disturbances that affect broadcast-grade electronics. Internal bypass maintains power during UPS maintenance. External APC SRT 192V battery packs extend runtime for 24/7 commercial operations. SmartSlot supports optional NMC for SNMP and enterprise monitoring.
Key Features
- 8000VA / 7200W Capacity — Ultra-high 208V tower on-line capacity with IEC output.
- Double-Conversion On-Line Topology — Zero transfer time and complete 208V isolation.

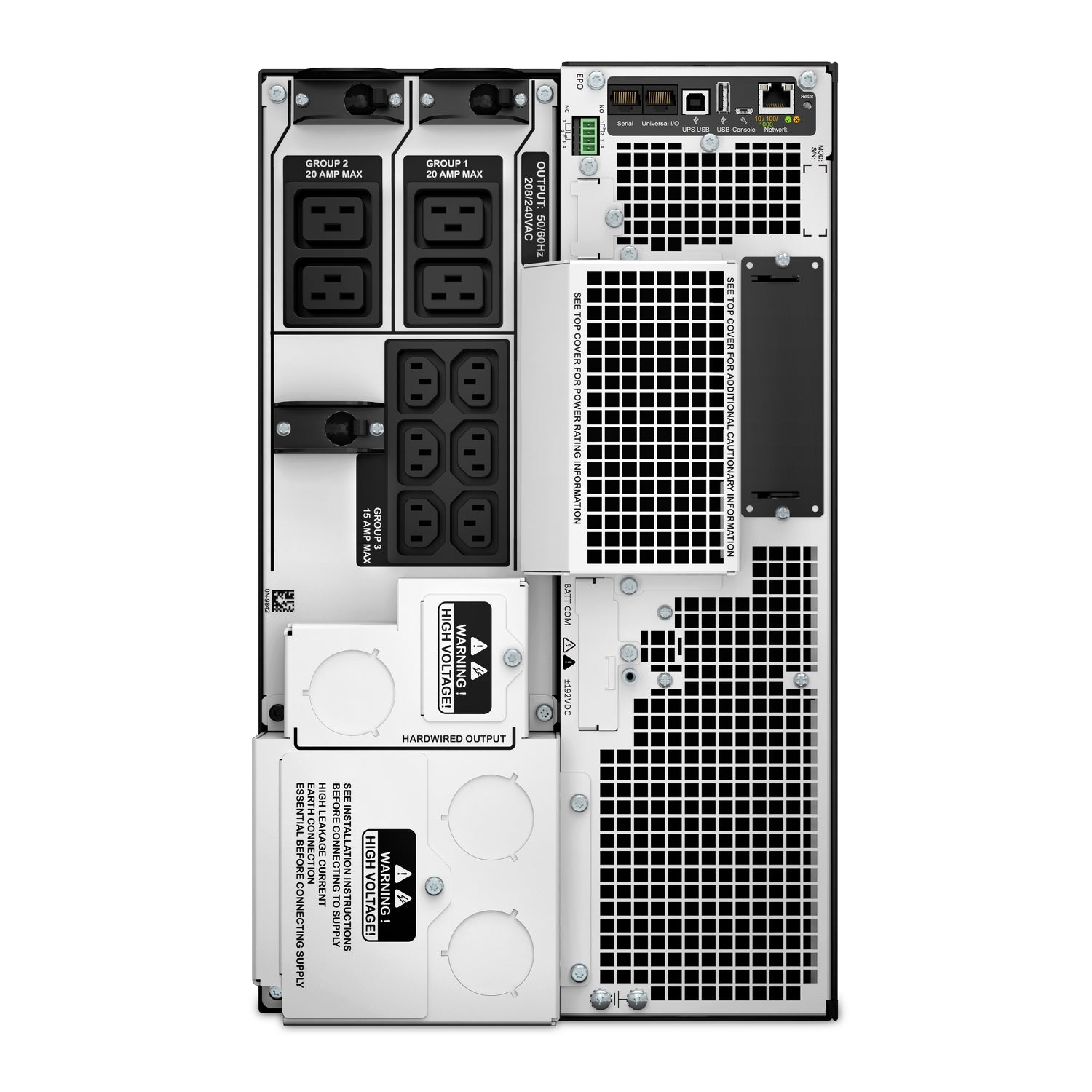

- IEC 309 Output Receptacles — For IEC-equipped broadcast and enterprise AV hardware.
- Tower Form Factor — Non-rack equipment room installation.
- Internal Bypass — Continuous power during UPS servicing.

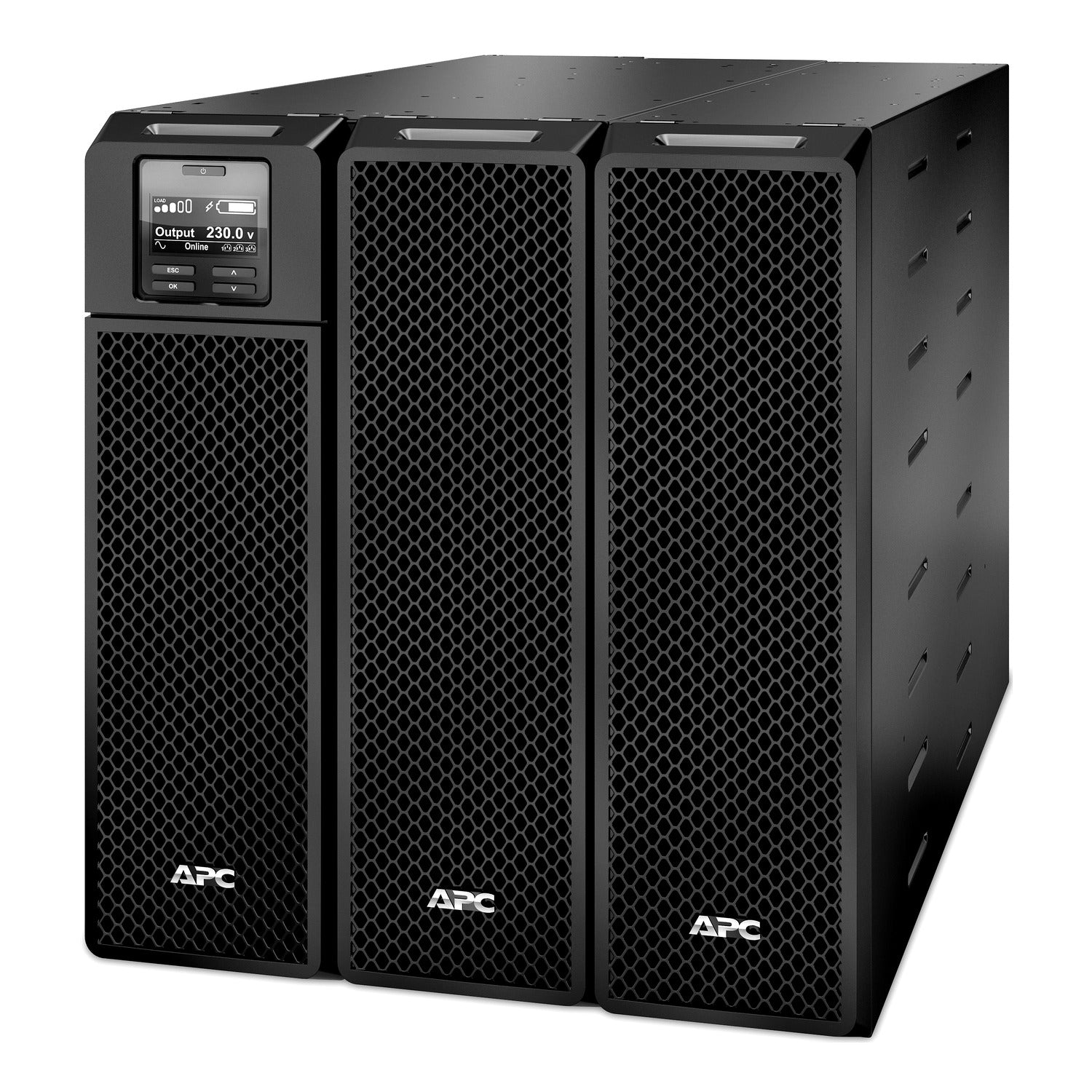

- Scalable Runtime — External APC SRT 192V battery packs.
- SmartSlot — Optional NMC for enterprise SNMP and EcoStruxure IT.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SRT8KXLT-IEC |
| Capacity | 8000VA / 7200W |
| Topology | Double-Conversion On-Line |
| Input Voltage | 208V |
| Output Voltage | 208V |
| Form Factor | Tower |
| Receptacles | IEC 309 |
| Internal Bypass | Yes |
| SmartSlot | Yes (optional NMC) |
| External Battery | Compatible with APC SRT 192V battery packs |
| Warranty | 2 Years |
Frequently Asked Questions
- When should I specify the SRT8KXLT-IEC vs the SRT8KXLT?
- Specify the SRT8KXLT-IEC when connected broadcast or commercial AV equipment uses IEC 309 power inlets. For North American equipment with NEMA L6 plugs, specify the SRT8KXLT with NEMA receptacles.
