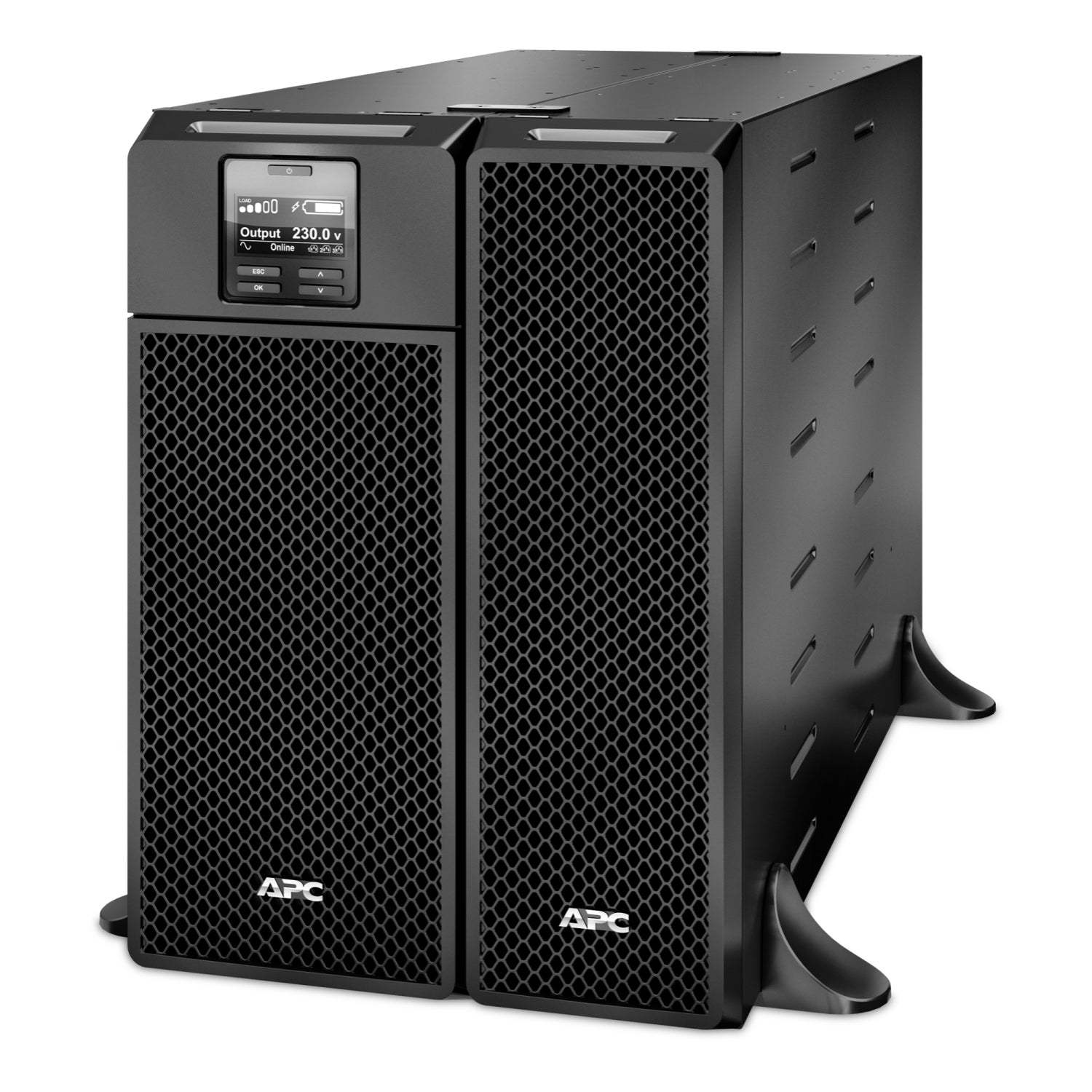

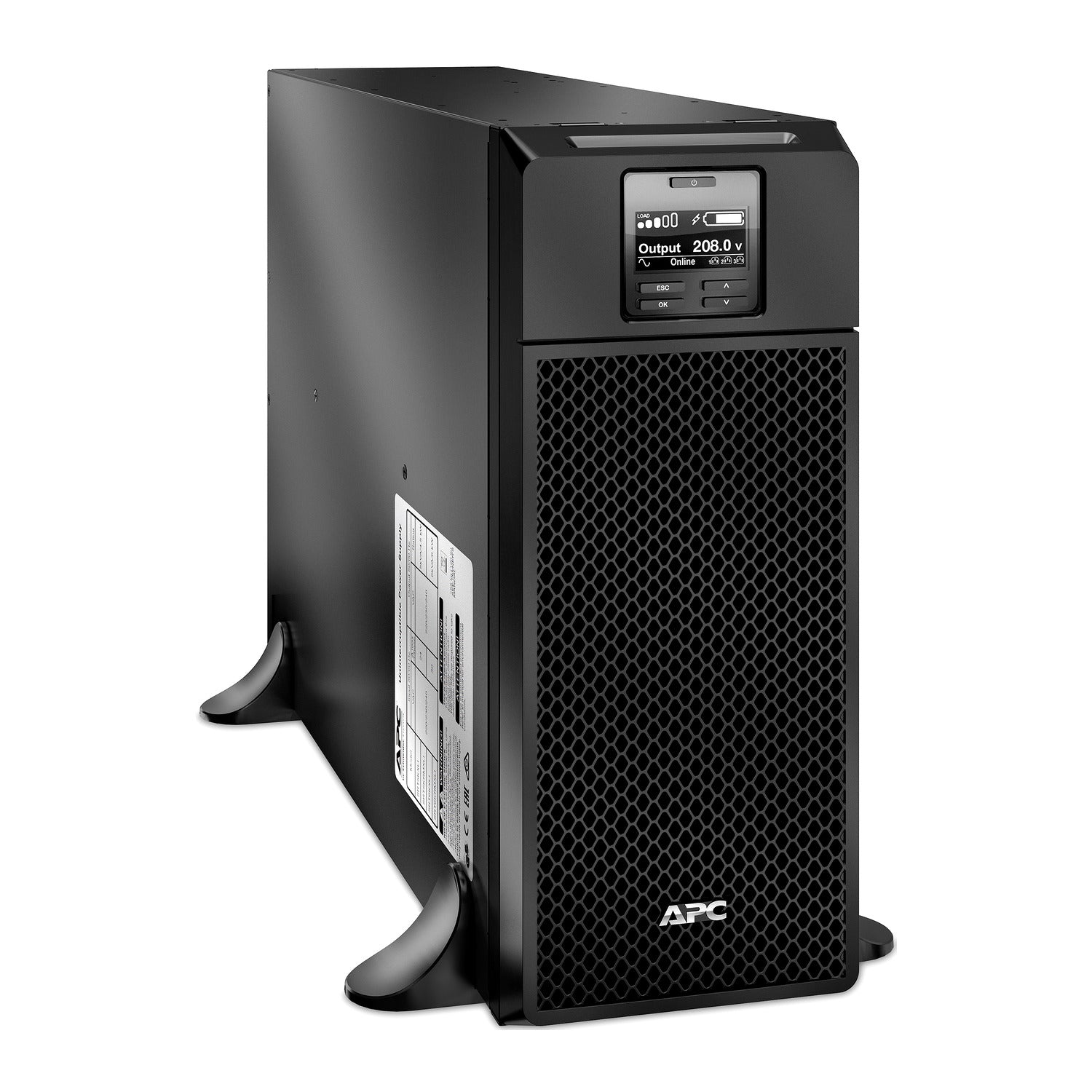

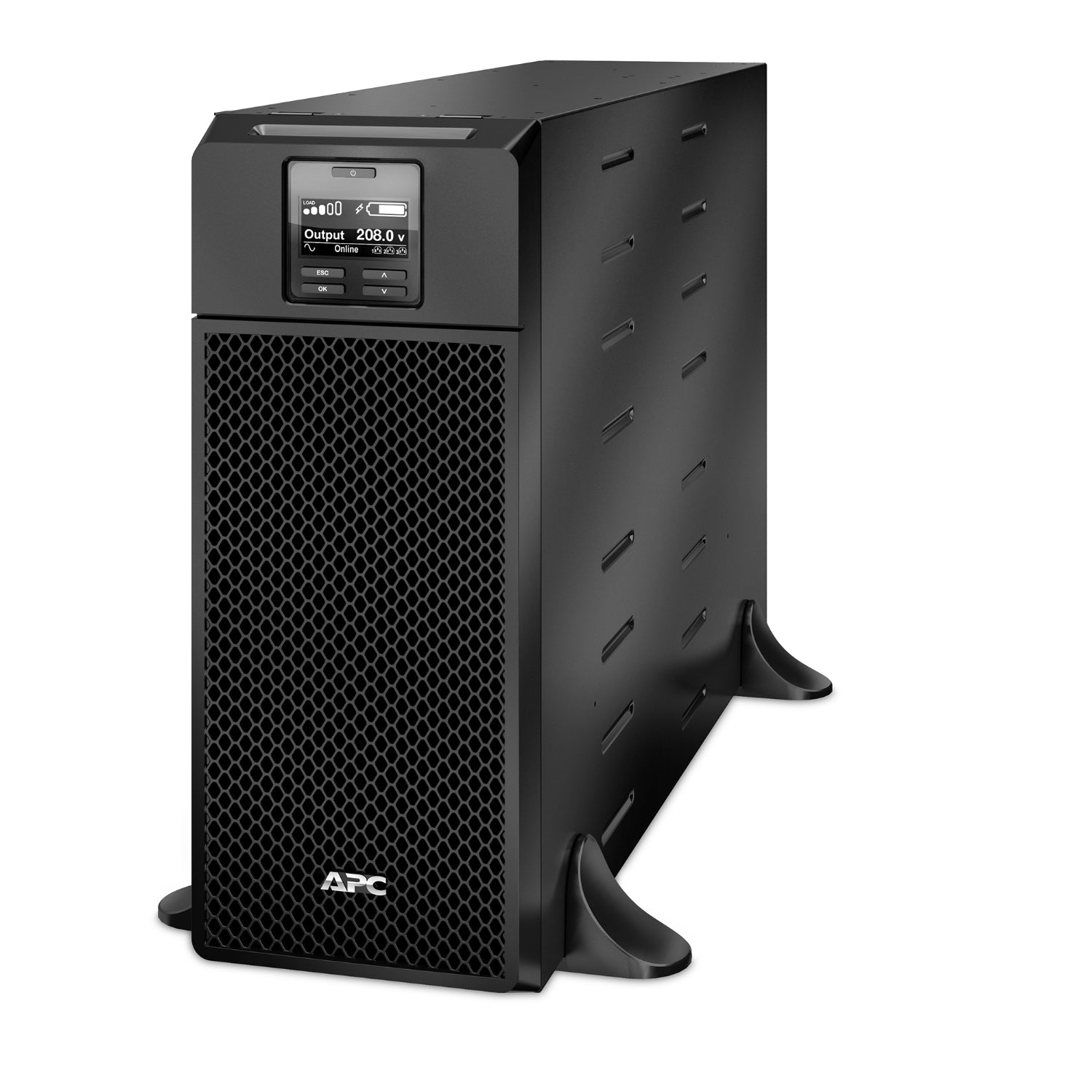

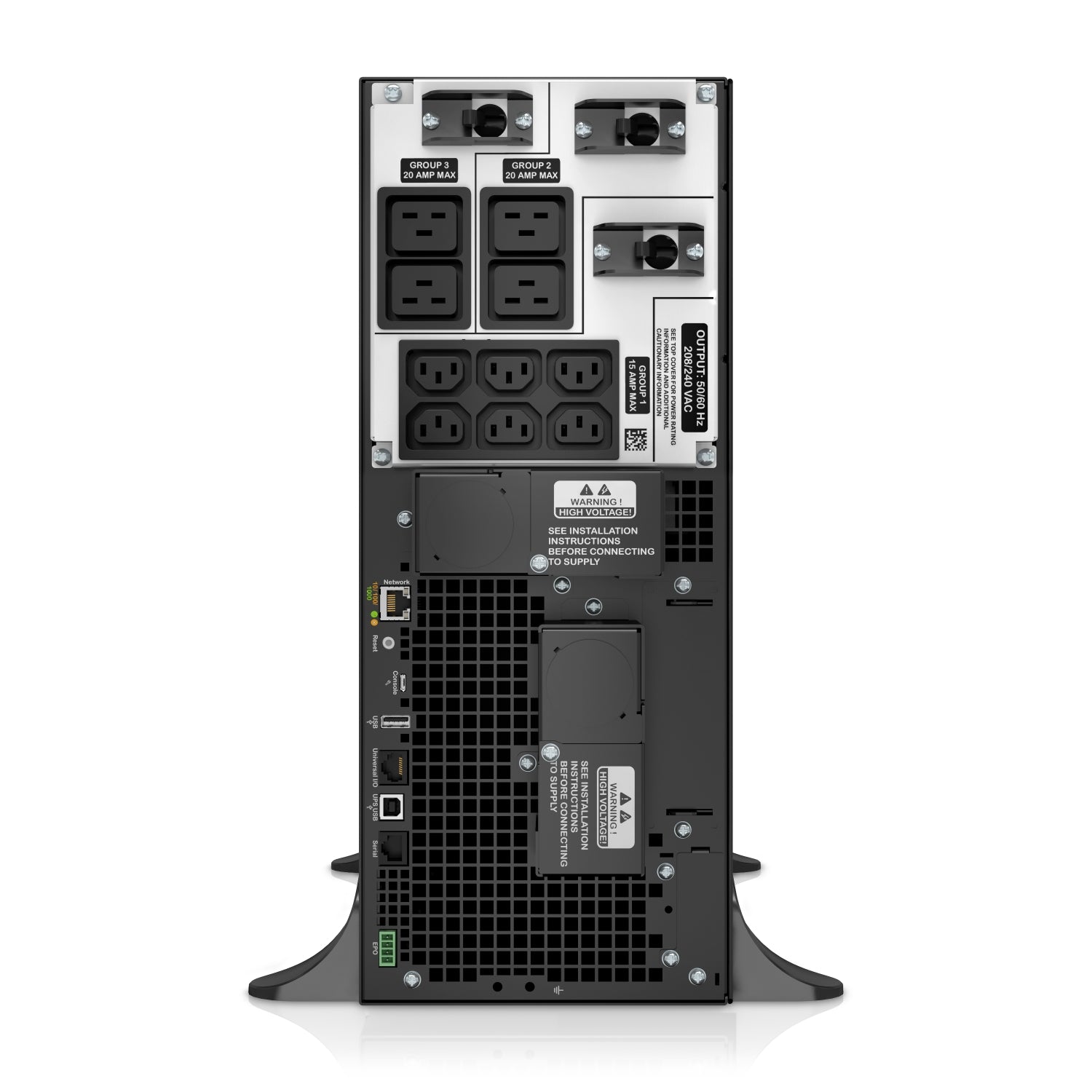

APC Smart-UPS On-Line SRT6KXLT-IEC 6000VA Tower 208V IEC
APC Smart-UPS On-Line SRT6KXLT-IEC 6000VA Tower 208V IEC is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Product Overview
The APC Smart-UPS On-Line SRT6KXLT-IEC is a 6000VA / 5400W double-conversion on-line UPS in a tower chassis with 208V input and IEC 309 output receptacles, delivering ultra-high-capacity zero-transfer-time power protection for broadcast production equipment, international commercial AV systems, and enterprise infrastructure with IEC-configured power connections in non-rack 208V environments. The continuously regenerated pure sine wave output provides complete isolation from all utility power quality events, appropriate for broadcast-grade AV equipment with strict power quality requirements. SmartSlot accepts optional NMC, and external SRT 192V battery packs scale runtime.
Product Description
The SRT6KXLT-IEC is specified for commercial AV and broadcast deployments where 6000VA of double-conversion 208V protection is required alongside IEC 309 output receptacles — common in broadcast routing switchers, production equipment, and international-sourced commercial AV hardware. Equipment rooms and technology closets housing broadcast production infrastructure without rack installation are the primary deployment environment. Double-conversion topology regenerates clean 208V power from DC batteries continuously, isolating connected equipment from the full spectrum of utility power quality disturbances. External APC SRT 192V battery packs extend runtime for 24/7 broadcast and commercial AV operations. SmartSlot accepts optional NMC for SNMP and EcoStruxure IT monitoring. For North American equipment with NEMA plugs, the SRT6KXLT with NEMA receptacles is the appropriate specification.
Key Features
- 6000VA / 5400W Capacity — High-capacity 208V on-line tower protection with IEC output.
- Double-Conversion On-Line Topology — Zero transfer time and complete 208V galvanic isolation.
- IEC 309 Output Receptacles — For IEC-equipped broadcast and commercial AV hardware.
- Tower Form Factor — Non-rack equipment room installation.
- Scalable Runtime — External APC SRT 192V battery packs.
- SmartSlot — Optional NMC for enterprise monitoring.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SRT6KXLT-IEC |
| Capacity | 6000VA / 5400W |
| Topology | Double-Conversion On-Line |
| Input Voltage | 208V |
| Output Voltage | 208V |
| Form Factor | Tower |
| Receptacles | IEC 309 |
| SmartSlot | Yes (optional NMC) |
| External Battery | Compatible with APC SRT 192V battery packs |
| Warranty | 2 Years |
Frequently Asked Questions
- What equipment uses IEC 309 power connections?
- IEC 309 connections are common on broadcast-grade routing switchers, production equipment, and commercial AV hardware sourced from European manufacturers. Verify the power inlet configuration of your specific equipment before specifying the IEC vs NEMA output model.
