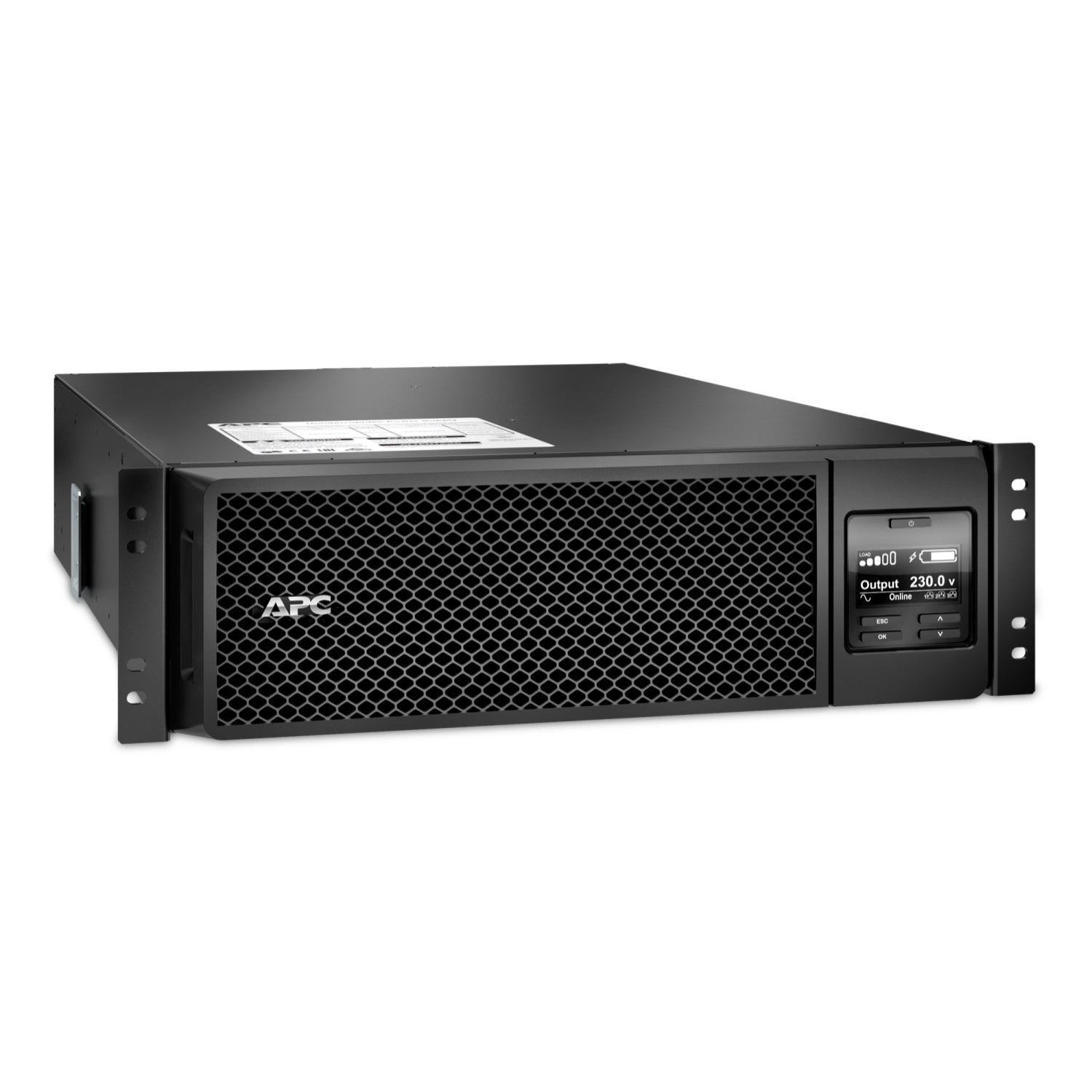

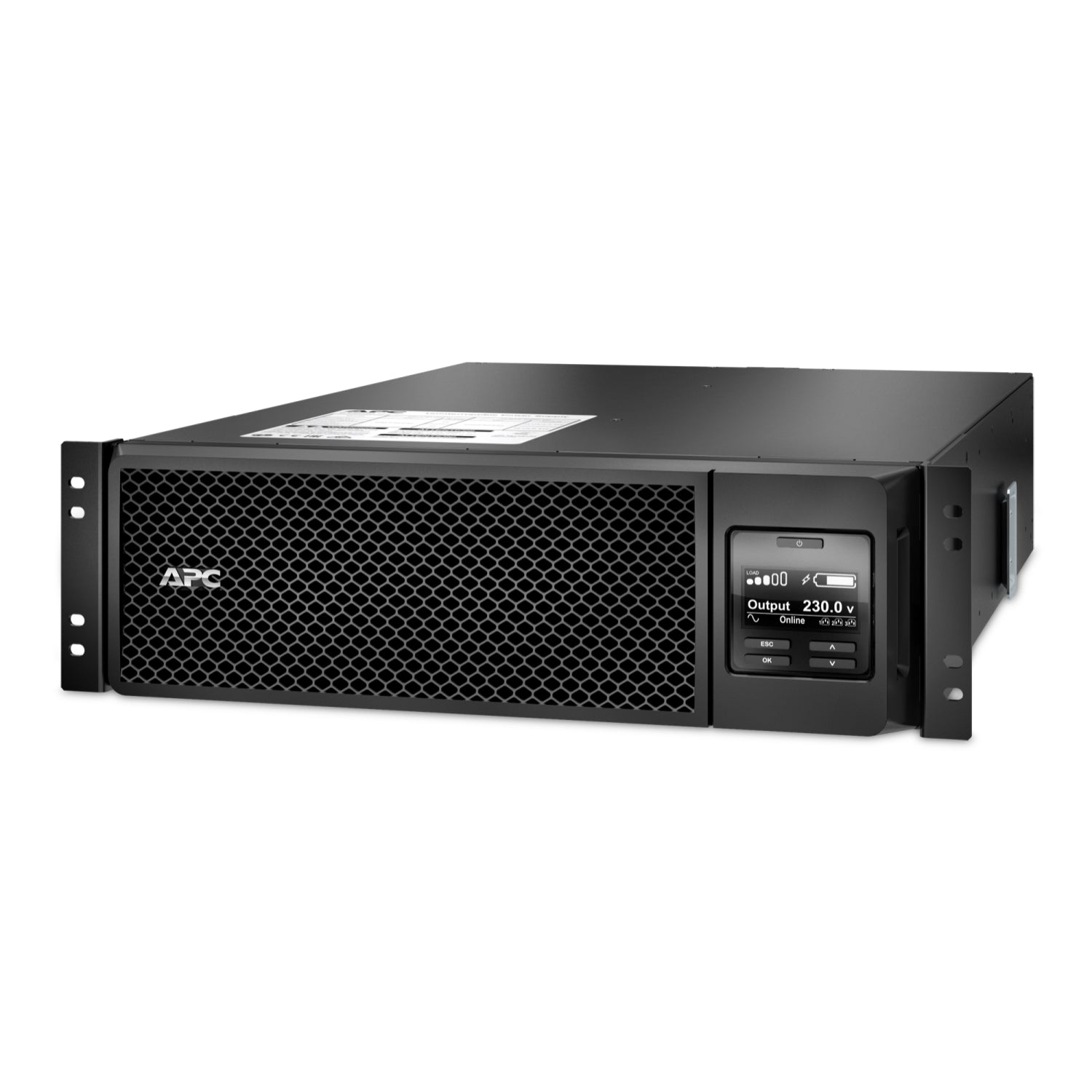

APC Smart-UPS On-Line SRT5KRMXLW-HW 5000VA Rackmount 208/230V Hardwire

Product Overview

The APC Smart-UPS On-Line SRT5KRMXLW-HW is a 5000VA / 4500W double-conversion on-line UPS in a rackmount chassis with 208/230V input and hardwire output connections, designed for commercial AV and data center rack deployments requiring on-line power protection where standard outlet connections are not appropriate — including high-current commercial equipment, custom PDU feeds, and installations requiring direct hardwired output. This unit delivers zero-transfer-time power protection with complete galvanic isolation and accepts optional NMC for enterprise monitoring.

Product Description

The SRT5KRMXLW-HW serves commercial AV and IT deployments where the UPS output connects directly to downstream power distribution equipment via hardwired connections rather than standard receptacles — common in broadcast facilities, command centers, and large commercial AV installations where custom power distribution panels, sub-panel feeds, or high-current commercial equipment requires hardwired UPS output. At 5000VA / 4500W with double-conversion on-line topology on 208/230V input, it provides the full protection profile of the SRT on-line series including zero transfer time, complete input/output isolation, and pure sine wave output. SmartSlot accepts optional NMC for SNMP and EcoStruxure IT integration. External APC SRT 192V battery packs extend runtime for 24/7 operations.

Key Features

• 5000VA / 4500W Capacity — High-capacity on-line protection with hardwire output.
• Double-Conversion On-Line Topology — Zero transfer time and complete galvanic isolation.

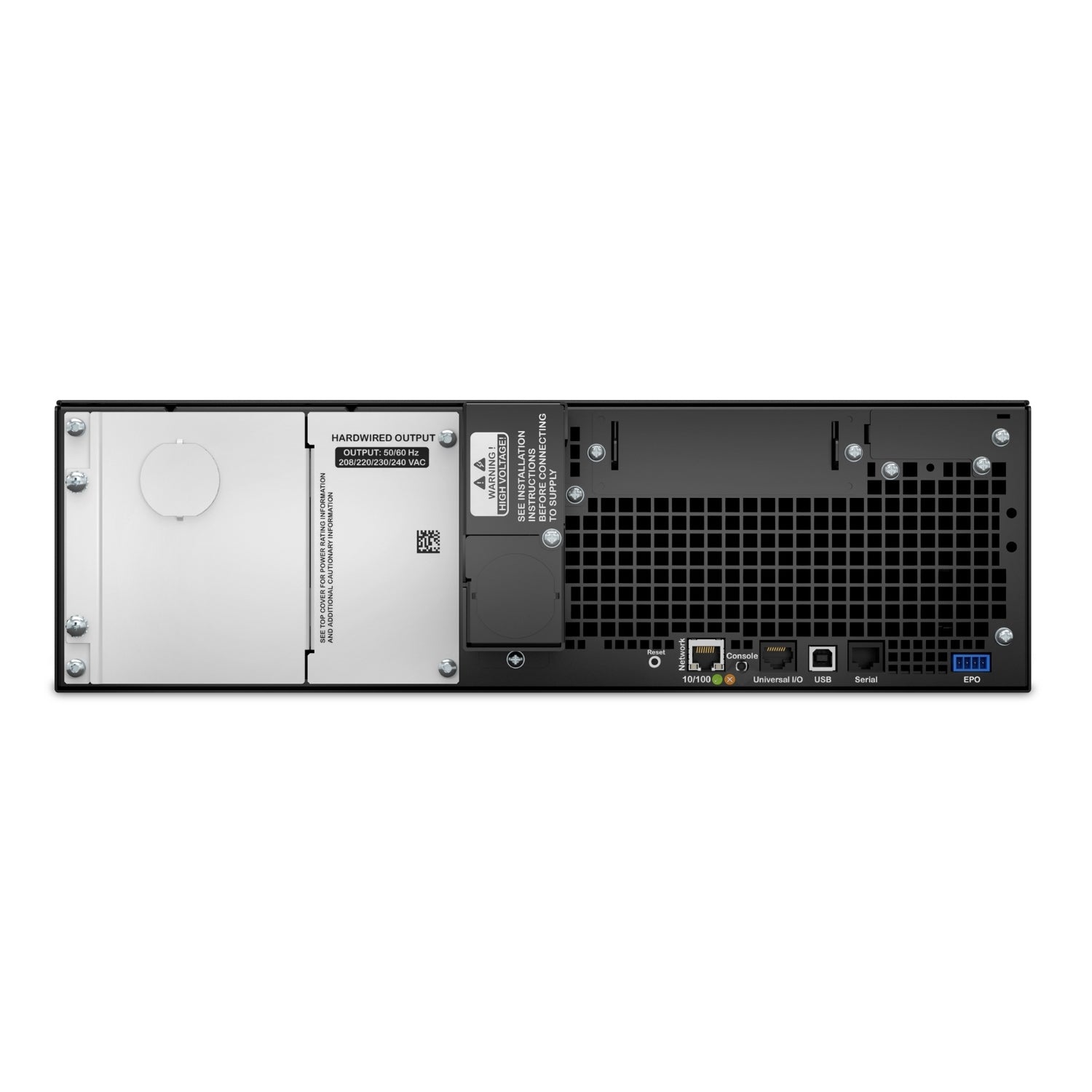

• Hardwire Output — For direct connection to downstream PDUs and custom power distribution.
• 208/230V Input — Commercial power distribution circuit compatibility.

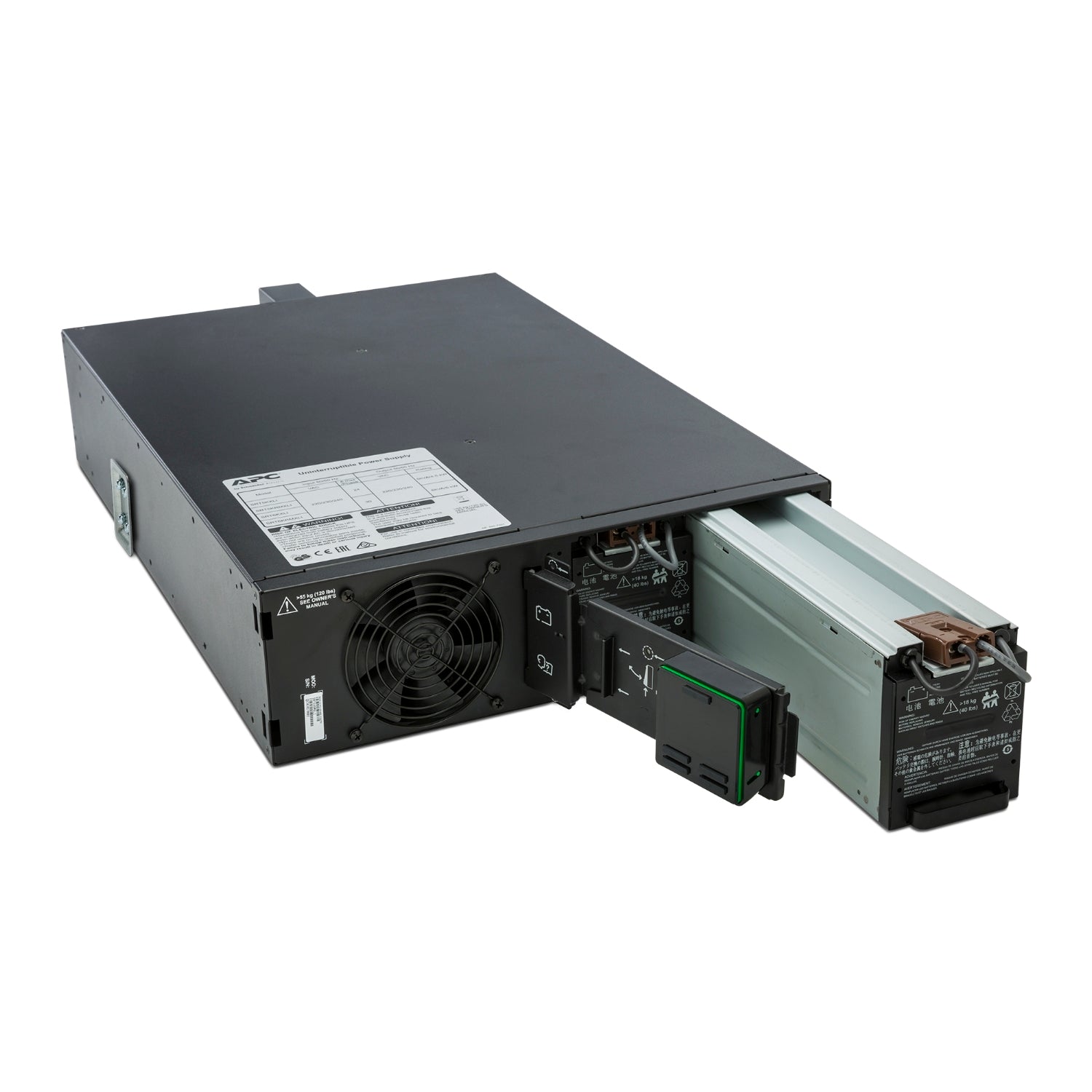

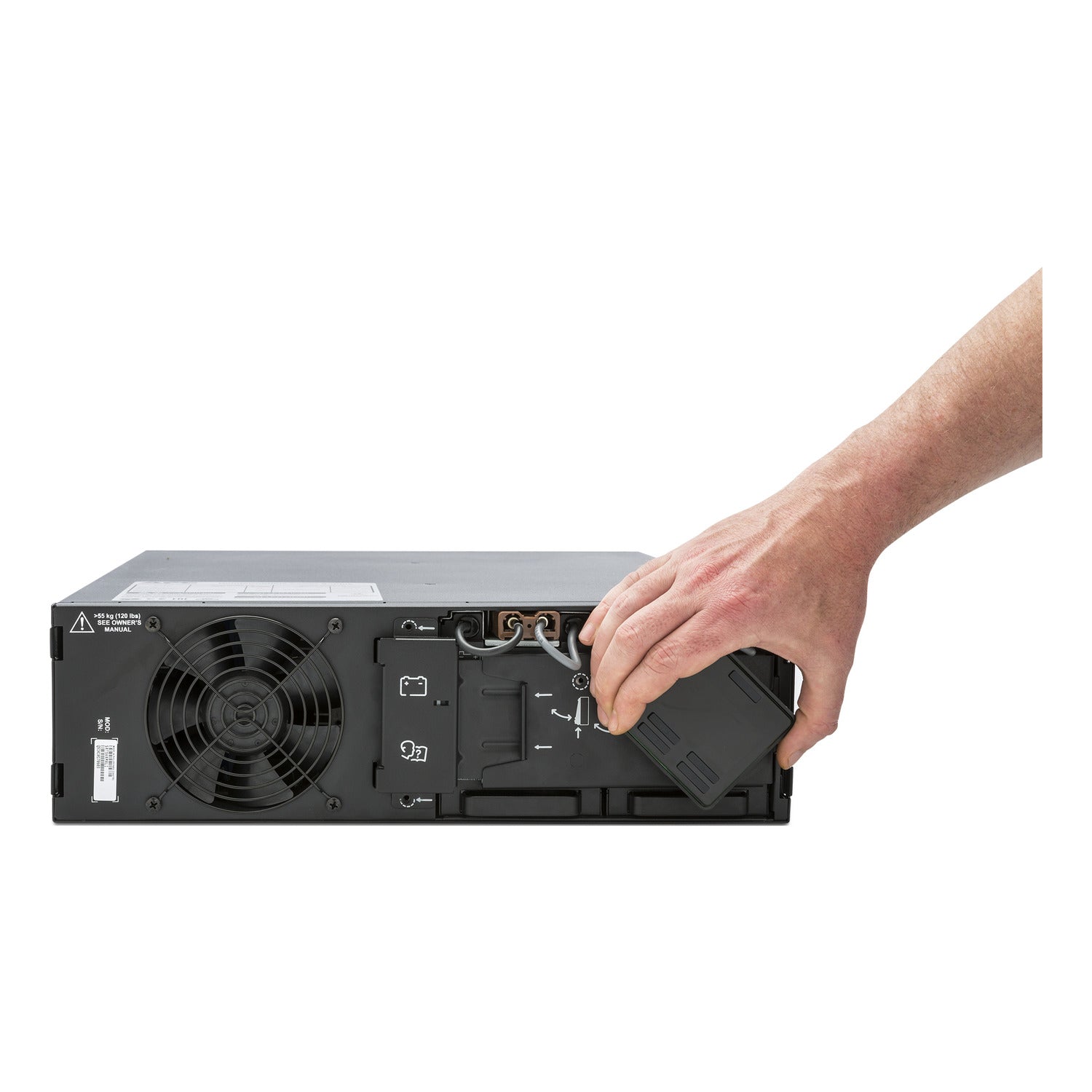

• Scalable Runtime — External APC SRT 192V battery packs.
• SmartSlot — Optional NMC for enterprise SNMP and EcoStruxure IT monitoring.
• Pure Sine Wave Output — Clean power for all connected AV and IT equipment.

Typical Applications

• Broadcast facility UPS with hardwired output to downstream PDUs
• Command center power infrastructure requiring hardwire UPS output
• Large commercial AV installations with custom power distribution
• Data center UPS feeding hardwired sub-panel or PDU

Technical Specifications

Frequently Asked Questions

When should I specify the hardwire model vs a receptacle model?

Specify the SRT5KRMXLW-HW when the UPS output connects to downstream PDUs, sub-panels, or high-current equipment via hardwired connections rather than standard plug-in receptacles. This is common in broadcast facilities, command centers, and large commercial AV installations with custom power distribution.

Does hardwire installation require a licensed electrician?

Yes. Hardwire UPS connections should be performed by a licensed electrician in accordance with local electrical codes. Contact Creation Networks for guidance on qualified installation contractors for commercial AV deployments.
