APC Smart-UPS On-Line SRT5KRMXLT-IEC 5000VA Rackmount 208V IEC
Product Overview
The APC Smart-UPS On-Line SRT5KRMXLT-IEC is a 5000VA / 4500W double-conversion on-line UPS in a 3U rackmount chassis with 208V input and IEC 309 output receptacles, designed for high-capacity 208V commercial AV and broadcast rack deployments using IEC-equipped hardware. This unit provides zero-transfer-time power protection with complete galvanic isolation, scalable runtime through external APC SRT 192V battery packs, and accepts an optional NMC for enterprise monitoring. The IEC output configuration serves broadcast production racks and international commercial AV systems with IEC power inlet equipment on 208V circuits.
Product Description
The SRT5KRMXLT-IEC is the IEC output rackmount equivalent of the SRT5KRMXLT, appropriate for 208V racks containing broadcast routing switchers, production servers, and international commercial AV equipment using IEC 309 power connections. At 5000VA / 4500W with double-conversion on-line topology, it provides complete isolation from all power quality events for broadcast-grade and sensitive commercial AV equipment. The 3U chassis installs in standard 19-inch racks. External APC SRT 192V battery packs extend runtime for 24/7 commercial operations. SmartSlot accepts optional NMC for SNMP and enterprise monitoring. For racks with North American NEMA-equipped 208V equipment, the SRT5KRMXLT with NEMA receptacles is the appropriate specification.
Key Features
- 5000VA / 4500W Capacity — High-capacity 208V on-line rack protection with IEC output.
- Double-Conversion On-Line Topology — Zero transfer time; complete 208V isolation.

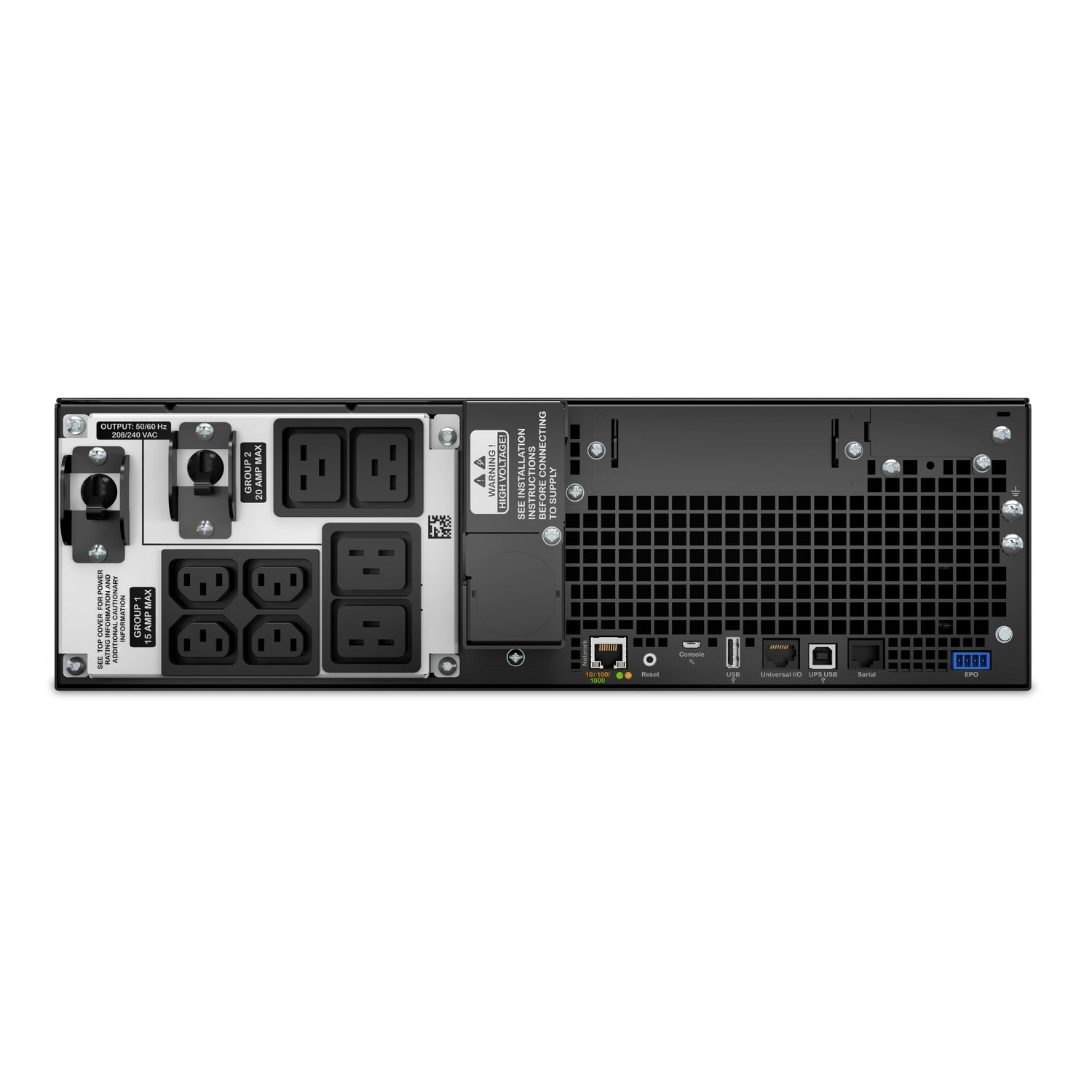

- IEC 309 Output Receptacles — For IEC-equipped broadcast and commercial AV rack hardware.

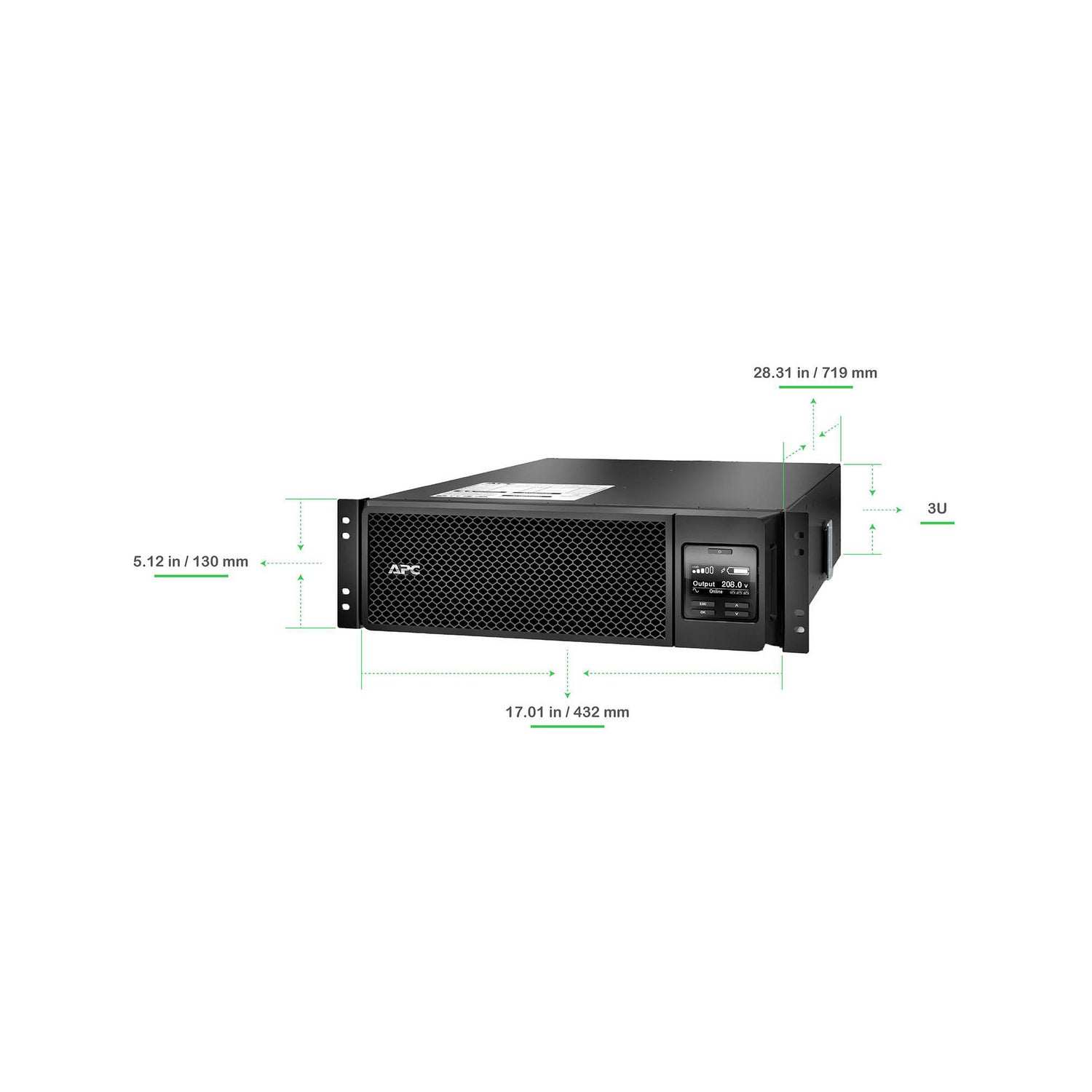

- 3U Rackmount — Standard 19-inch installation.
- Scalable Runtime — External APC SRT 192V battery packs.
- SmartSlot — Optional NMC for enterprise monitoring.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SRT5KRMXLT-IEC |
| Capacity | 5000VA / 4500W |
| Topology | Double-Conversion On-Line |
| Input Voltage | 208V |
| Output Voltage | 208V |
| Form Factor | 3U Rackmount |
| Receptacles | IEC 309 |
| SmartSlot | Yes (optional NMC) |
| External Battery | Compatible with APC SRT 192V battery packs |
| Warranty | 2 Years |
