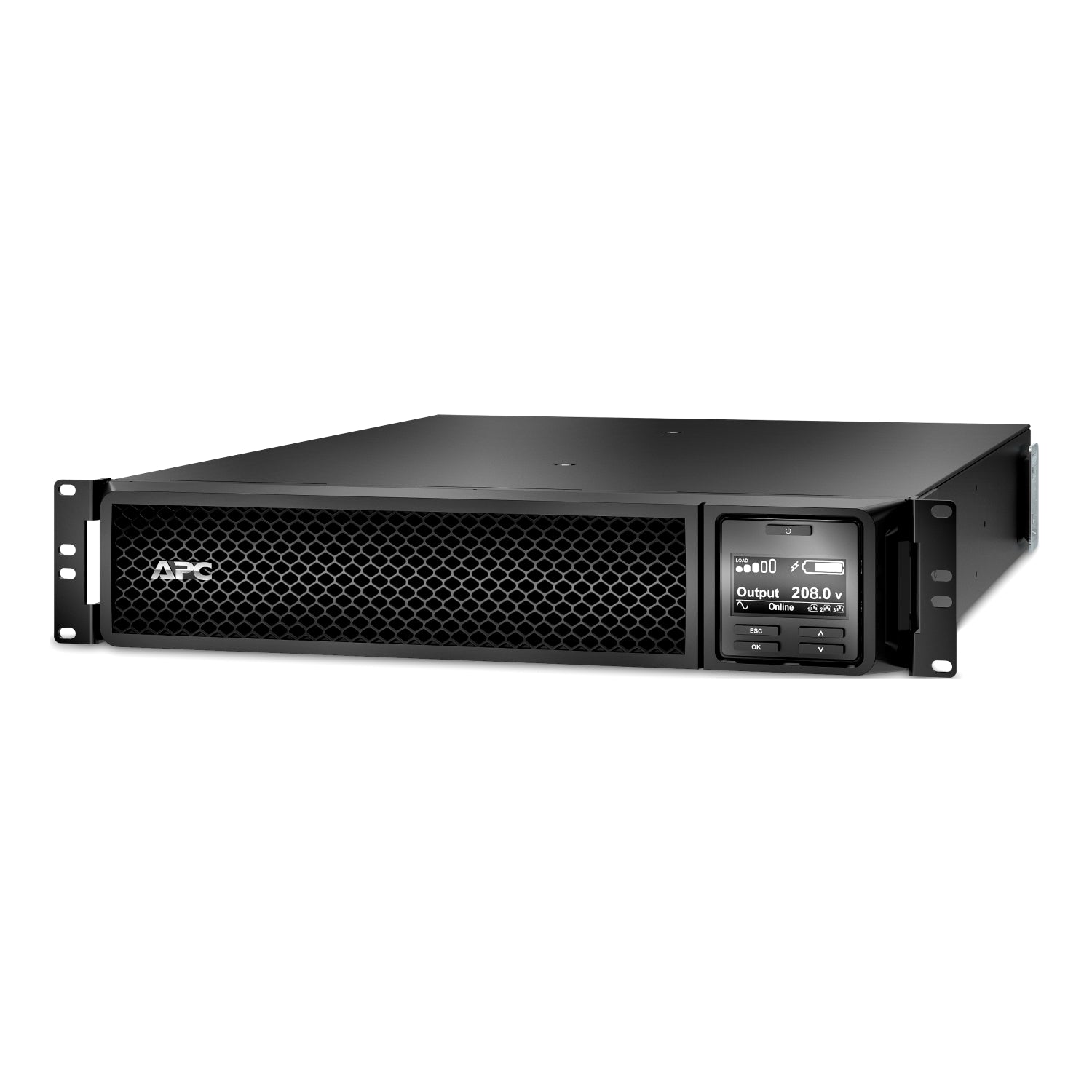

APC Smart-UPS On-Line SRT3000RMXLT 3000VA Rackmount 2U 208V
APC Smart-UPS On-Line SRT3000RMXLT 3000VA Rackmount 2U 208V is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
APC Smart-UPS On-Line SRT3000RMXLT 3000VA Rackmount 2U 208V
Product Overview
The APC Smart-UPS On-Line SRT3000RMXLT is a 3000VA / 2700W double-conversion on-line UPS in a 2U rackmount chassis with 208V input and output, providing zero-transfer-time power protection with scalable runtime for high-capacity commercial AV and IT rack deployments on 208V circuits. This unit continuously regenerates clean 208V power with complete galvanic isolation from utility input, appropriate for broadcast-grade AV racks, command center infrastructure, and mission-critical IT deployments requiring on-line topology at 208V. SmartSlot accepts optional NMC for enterprise monitoring, and external SRT 192V battery packs extend runtime.
Product Description
The SRT3000RMXLT delivers 3000VA / 2700W of double-conversion 208V on-line protection in a standard 2U rack footprint, covering high-draw commercial AV rack configurations including video processing systems, managed core switches, broadcast distribution equipment, and rack servers on 208V circuits. Double-conversion topology eliminates transfer time and provides complete isolation from power quality events including transients, harmonics, and frequency variations that affect broadcast-grade and sensitive IT equipment. The 2U chassis installs in standard 19-inch racks with included rail hardware. External APC SRT 192V battery packs scale runtime for 24/7 operations. SmartSlot accepts optional NMC for SNMP and EcoStruxure IT integration. High-efficiency mode reduces operational energy cost during normal operation.
Key Features
- 3000VA / 2700W Capacity — High-capacity 208V on-line rack protection for commercial AV and IT.
- Double-Conversion On-Line Topology — Zero transfer time and complete 208V galvanic isolation.
- 208V Input/Output — Commercial 208V rack circuit compatibility.
- 2U Rackmount — Standard 19-inch installation with rail kit.
- Scalable Runtime — External APC SRT 192V battery packs.
- SmartSlot — Optional NMC for enterprise monitoring.
- High-Efficiency Mode — Reduces operational energy consumption.
Typical Applications
- Broadcast studio and production 208V rack protection
- Command and control center rack AV power at 208V
- Enterprise data center 208V rack UPS
- Large commercial AV racks on 208V circuits
Technical Specifications
| Specification | Value |
|---|---|
| Model | SRT3000RMXLT |
| Capacity | 3000VA / 2700W |
| Topology | Double-Conversion On-Line |
| Input Voltage | 208V |
| Output Voltage | 208V |
| Output Waveform | Pure Sine Wave |
| Form Factor | 2U Rackmount |
| SmartSlot | Yes (optional NMC) |
| External Battery | Compatible with APC SRT 192V battery packs |
| Warranty | 2 Years |
Frequently Asked Questions
- What is the tower equivalent of the SRT3000RMXLT?
- The SRT3000XLT provides the same 3000VA 208V double-conversion protection in a tower chassis for non-rack deployments.
- Does this UPS require a dedicated 208V circuit?
- Yes. A 208V circuit rated for the unit's input current is required. Verify with your electrical contractor before specification.
