APC Smart-UPS On-Line SRT10KXLT-IEC 10000VA Tower 208V IEC
Product Overview

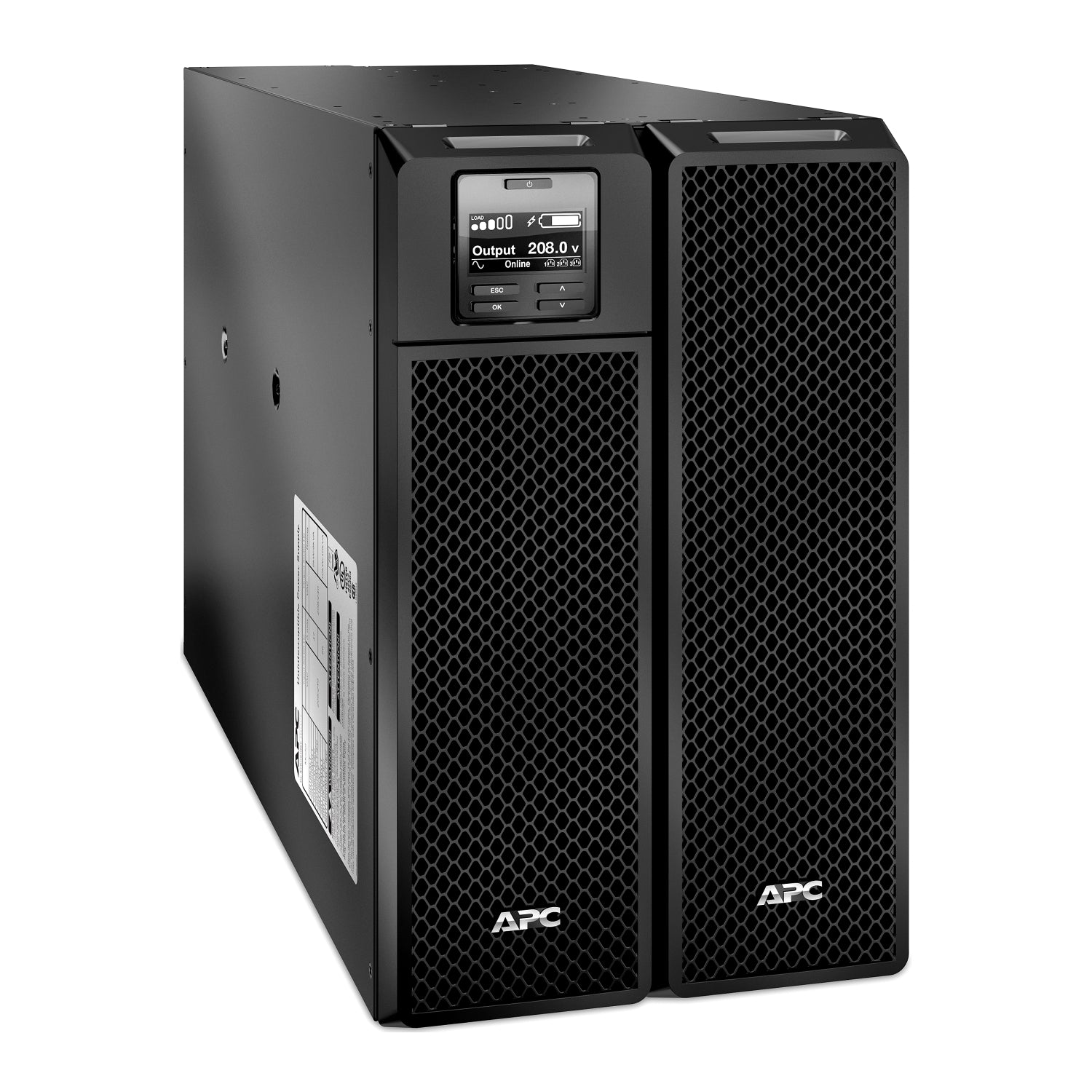

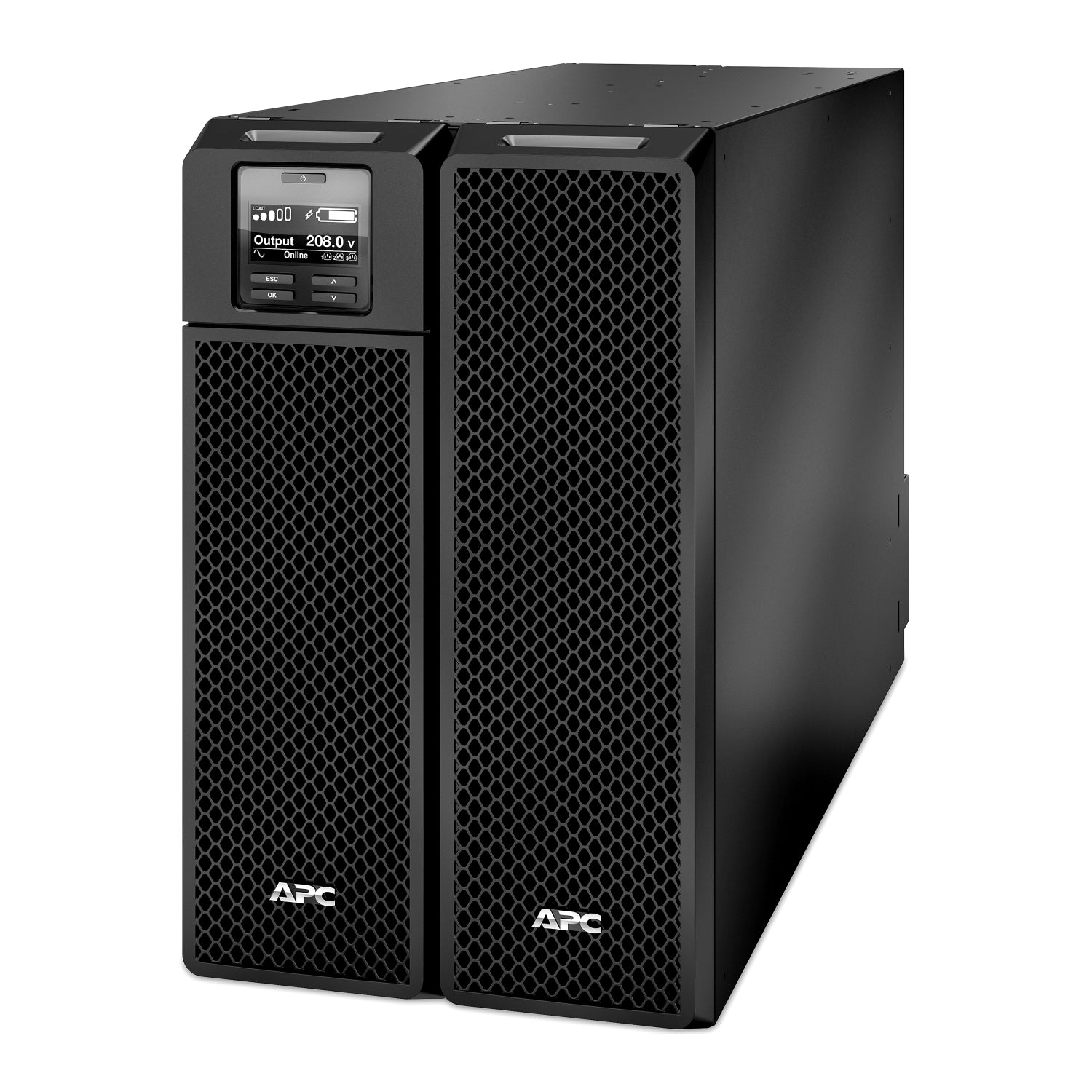

The APC Smart-UPS On-Line SRT10KXLT-IEC is a 10000VA / 9000W double-conversion on-line UPS in a tower chassis with 208V input and IEC 309 output receptacles, providing maximum-capacity zero-transfer-time power protection for broadcast master control rooms, command centers, and large enterprise AV equipment rooms using IEC-configured equipment on 208V circuits without rack infrastructure. This is the IEC output version of the SRT10KXLT, specified for deployments where connected broadcast and commercial AV hardware uses IEC 309 power inlets. Internal bypass, scalable runtime via external SRT 192V battery packs, and optional NMC complete the enterprise feature set.
Product Description
The SRT10KXLT-IEC at 10000VA / 9000W serves the most demanding broadcast production and command center environments where non-rack 208V deployment with IEC output receptacles is required — large broadcast facilities with internationally-sourced equipment, enterprise command centers with mixed IEC-configured infrastructure, and high-capacity commercial AV production spaces. Double-conversion on-line topology regenerates clean 208V power continuously, providing complete isolation from all utility power quality disturbances critical for broadcast-grade electronics. Internal bypass maintains power to connected equipment during UPS maintenance without interruption, essential for 24/7 broadcast operations. External APC SRT 192V battery packs scale runtime. SmartSlot accepts optional NMC for enterprise SNMP and EcoStruxure IT monitoring.
Key Features
- 10000VA / 9000W Capacity — Maximum 208V tower on-line capacity with IEC output.
- Double-Conversion On-Line Topology — Zero transfer time and complete 208V galvanic isolation.

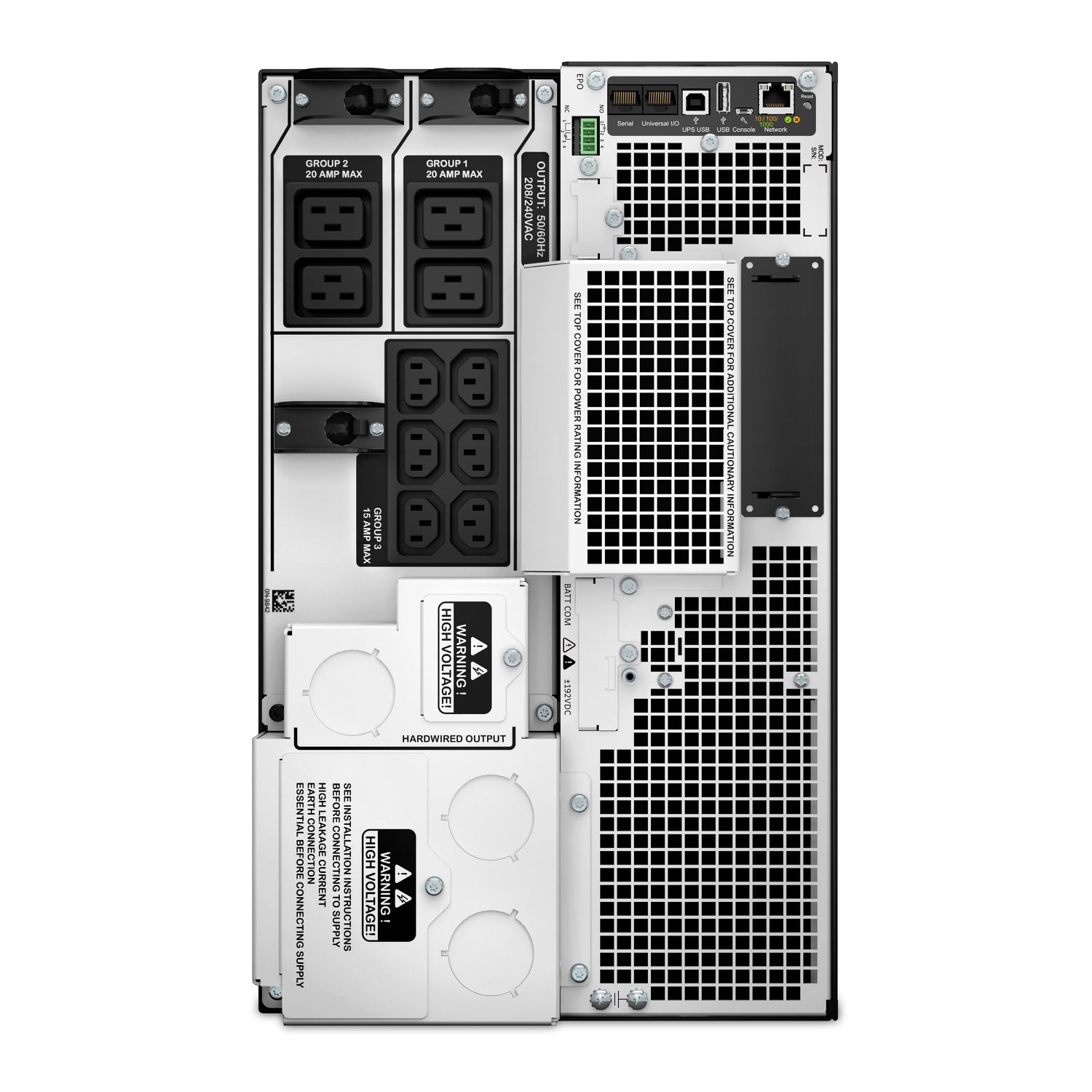

- IEC 309 Output Receptacles — For IEC-equipped broadcast and commercial AV hardware.
- Tower Form Factor — Non-rack equipment room deployment.
- Internal Bypass — Continuous power during UPS maintenance.

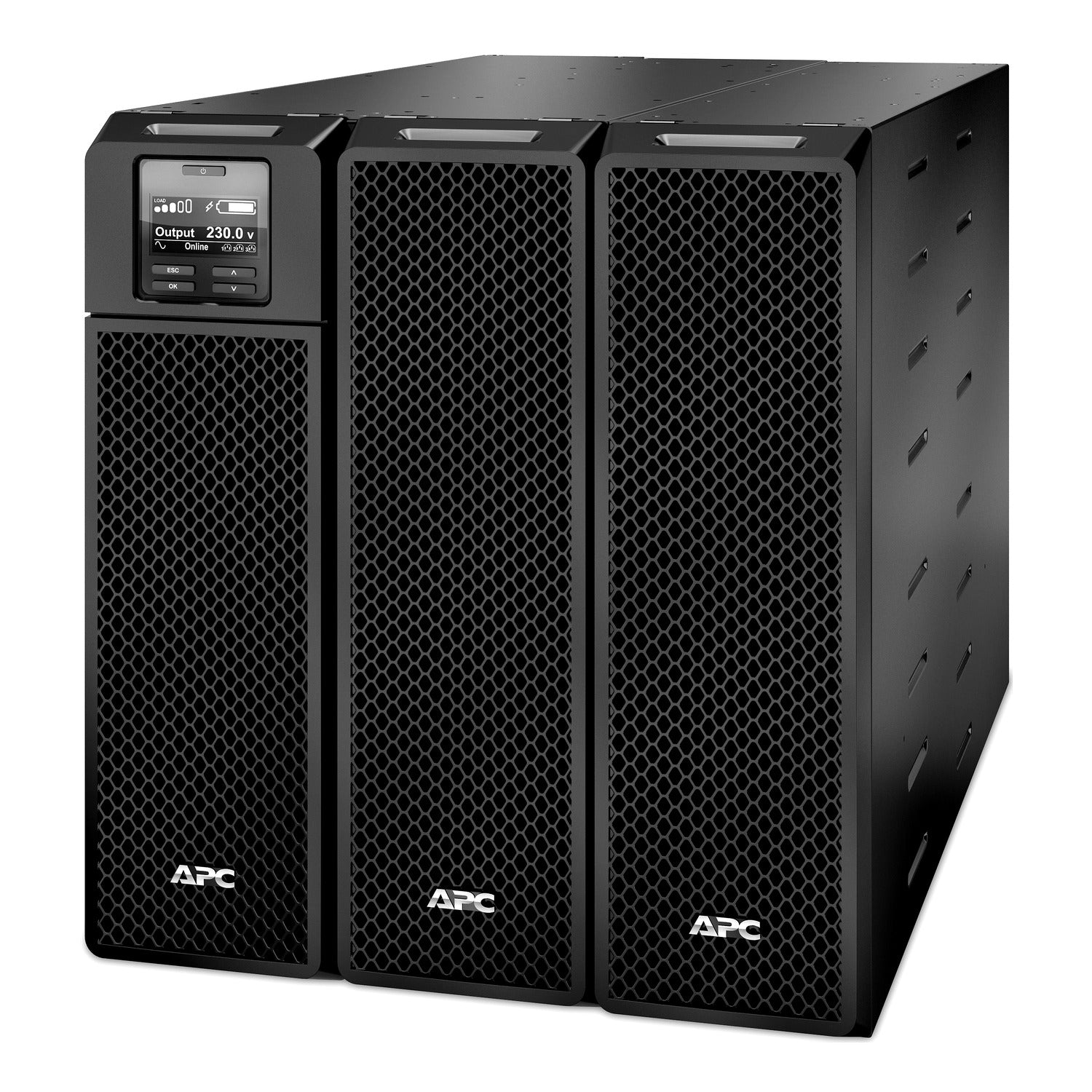

- Scalable Runtime — External APC SRT 192V battery packs.
- SmartSlot — Optional NMC for enterprise SNMP and EcoStruxure IT.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SRT10KXLT-IEC |
| Capacity | 10000VA / 9000W |
| Topology | Double-Conversion On-Line |
| Input Voltage | 208V |
| Output Voltage | 208V |
| Form Factor | Tower |
| Receptacles | IEC 309 |
| Internal Bypass | Yes |
| SmartSlot | Yes (optional NMC) |
| External Battery | Compatible with APC SRT 192V battery packs |
| Warranty | 2 Years |
