APC Smart-UPS On-Line SRT10KRMXLT-5KTF2 10000VA Rackmount with Two 208V to 120V 5kVA Step-Down Transformers
APC Smart-UPS On-Line SRT10KRMXLT-5KTF2 10000VA Rackmount with Two 208V to 120V 5kVA Step-Down Transformers is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
APC Smart-UPS On-Line SRT10KRMXLT-5KTF2 10000VA Rackmount with Two ...
Product Overview

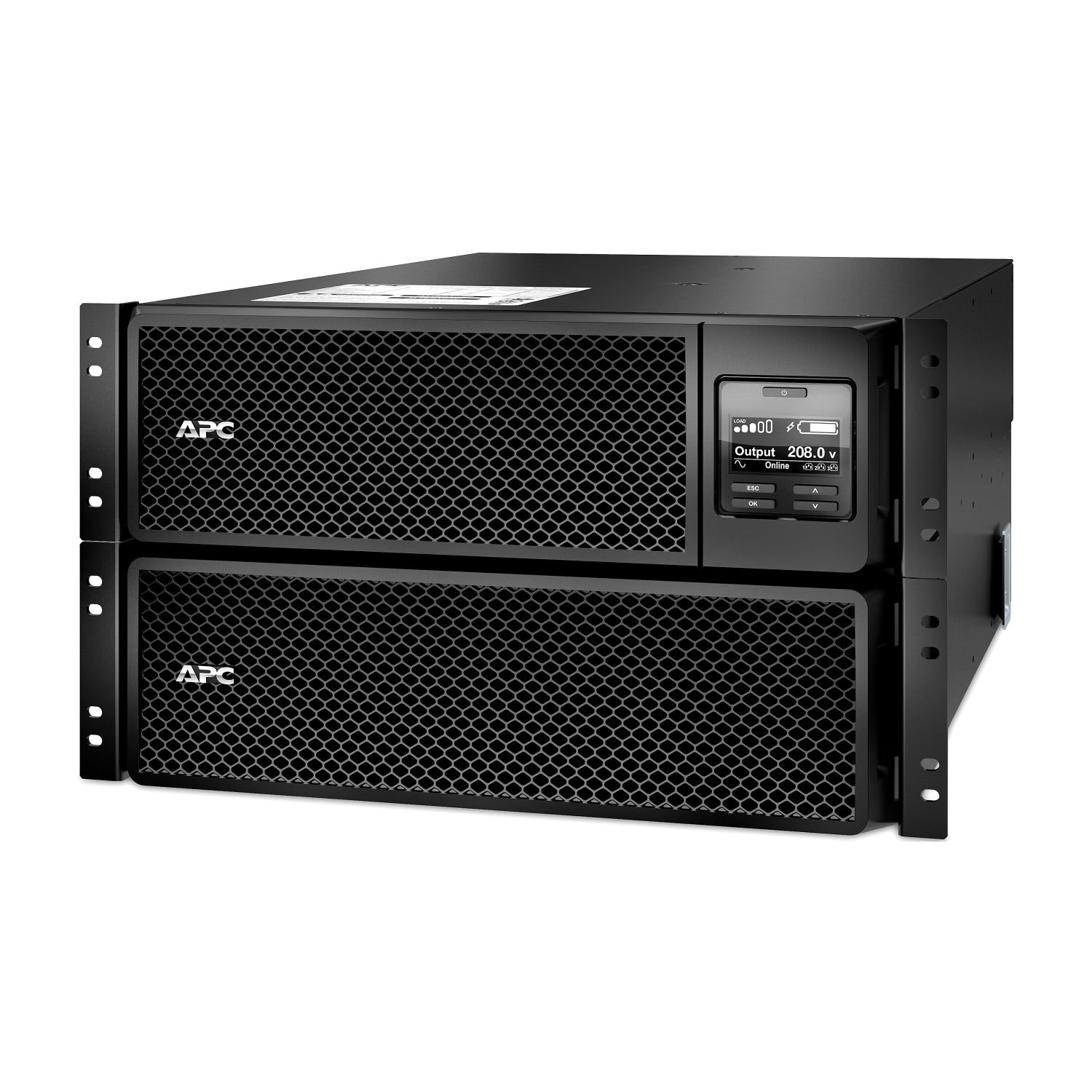

The APC Smart-UPS On-Line SRT10KRMXLT-5KTF2 is a 10000VA / 9000W double-conversion on-line UPS in a rackmount chassis with 208/240V input and two integrated 5kVA step-down transformers providing 120V output — the maximum-capacity rackmount step-down transformer UPS in the SRT on-line line, delivering up to 10kVA of protected 120V output capacity from 208/240V circuits for the largest commercial AV and IT rack deployments in high-voltage facilities. Specified for maximum-capacity commercial AV racks in 208V facilities where a single rackmount UPS must provide complete voltage conversion and on-line protection for a large 120V equipment load.
Product Description
The SRT10KRMXLT-5KTF2 combines 10000VA of double-conversion 208/240V on-line input protection with two integrated 5kVA step-down transformers, providing up to 10kVA of protected 120V rackmount output in a single chassis — eliminating separate transformer hardware from the rack and power infrastructure design. This is the appropriate specification for commercial AV racks in 208V facilities where the combined 120V load of video processing, AV over IP switching, servers, and distribution equipment exceeds the capacity of single-transformer models. Double-conversion on-line topology provides zero transfer time and complete isolation. External APC SRT battery packs extend runtime. SmartSlot accepts optional NMC for SNMP and enterprise monitoring.
Key Features
- 10000VA / 9000W Input, Dual 5kVA Step-Down Transformers — Maximum rackmount 120V protected output capacity from 208/240V.
- Double-Conversion On-Line Topology — Zero transfer time and complete galvanic isolation.
- Two Integrated Step-Down Transformers — Up to 10kVA 120V output from dual 5kVA transformers.

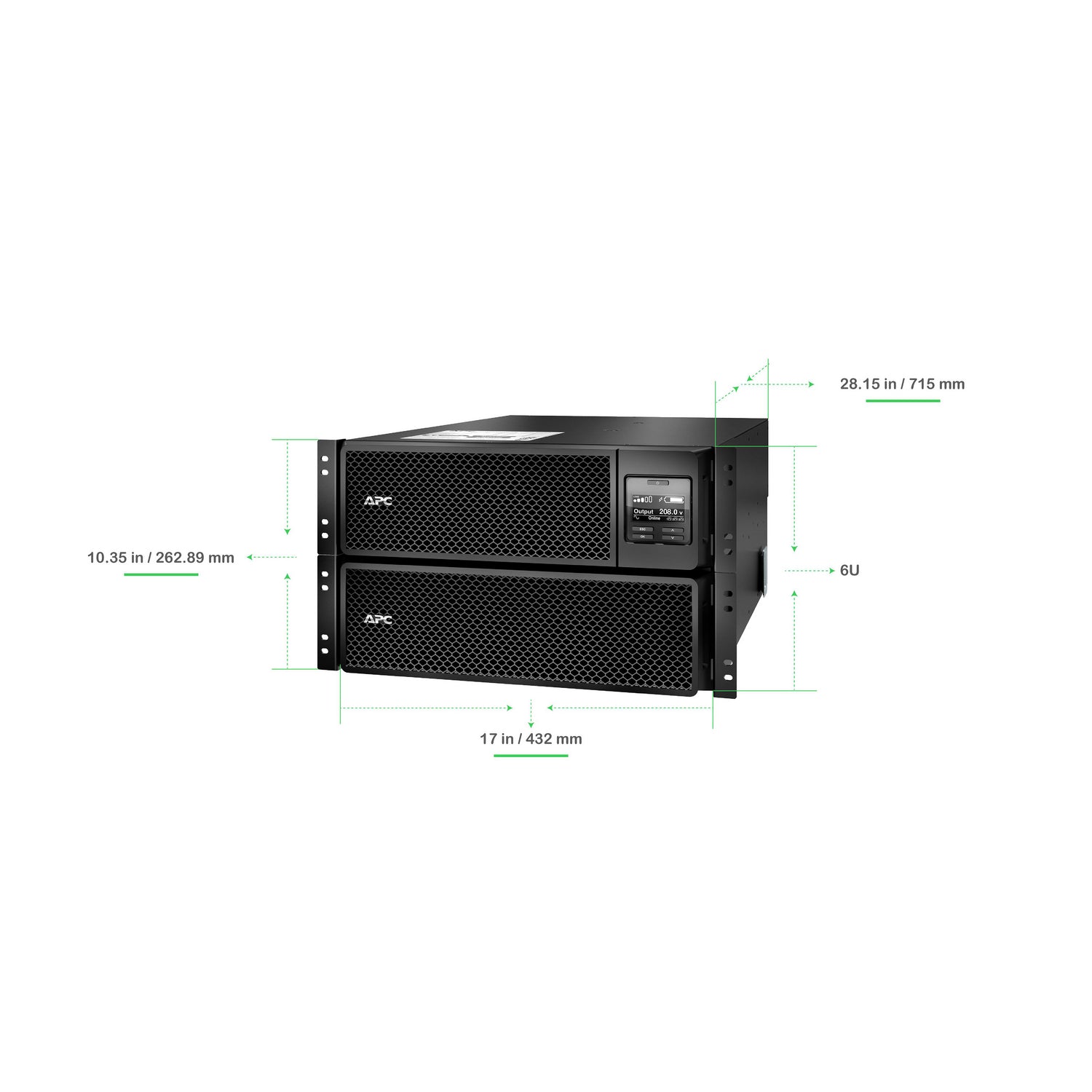

- Rackmount Form Factor — Standard 19-inch rack installation.
- 208/240V Input / 120V Output — For maximum-capacity 208V racks with 120V AV equipment.
- Scalable Runtime — External APC SRT battery packs.

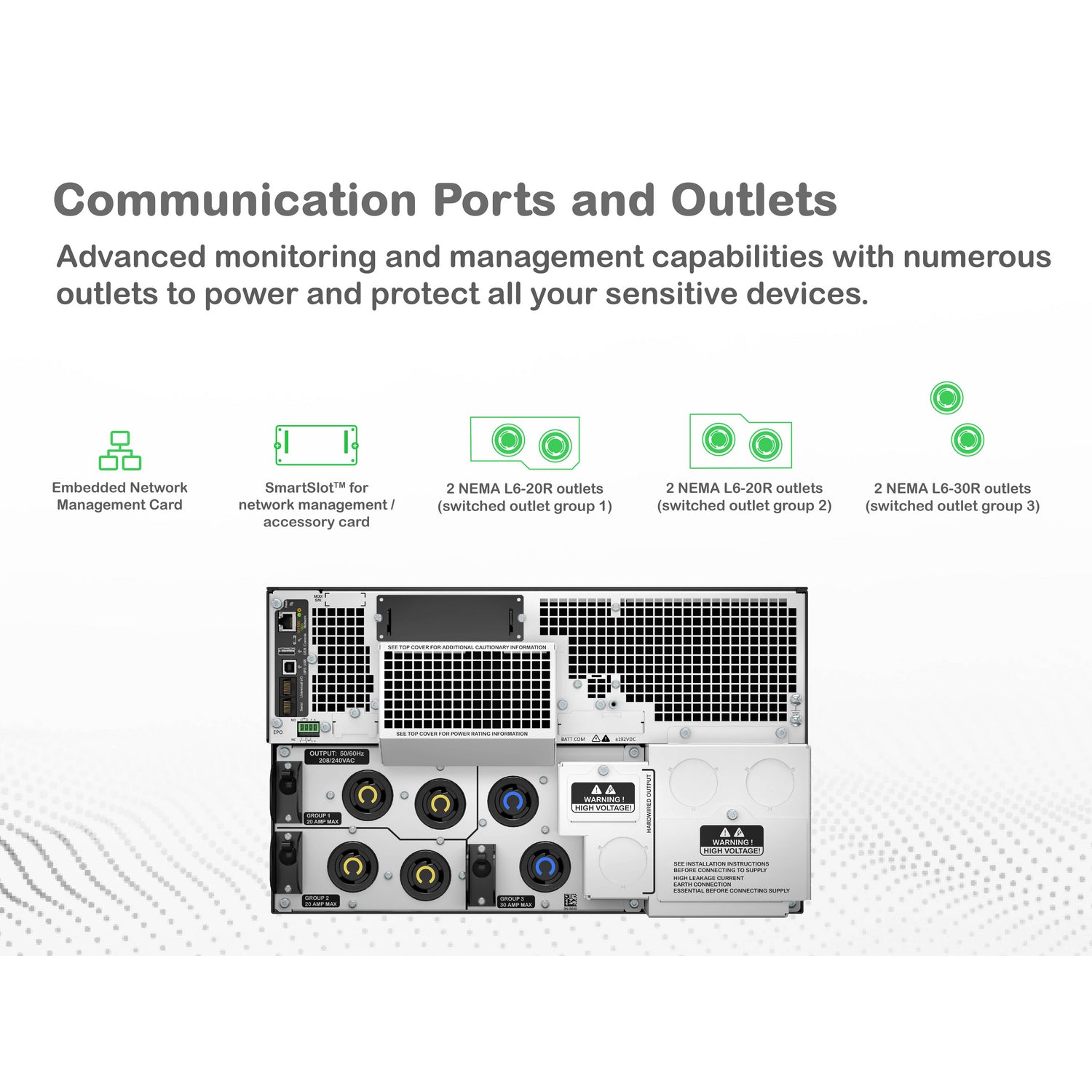

- SmartSlot — Optional NMC for enterprise monitoring.
Technical Specifications
| Specification | Value |
|---|---|
| Model | SRT10KRMXLT-5KTF2 |
| Capacity (Input) | 10000VA / 9000W |
| Step-Down Transformers | Two 5kVA units (208/240V to 120V each) |
| Topology | Double-Conversion On-Line |
| Input Voltage | 208/240V |
| Output Voltage | 120V |
| Form Factor | Rackmount |
| SmartSlot | Yes (optional NMC) |
| Warranty | 2 Years |
