APC Smart-UPS On-Line SRT10KRMXLT-10KTF 10000VA Rackmount 208/240V to 120V 10kVA Step-Down Transformer

Product Overview

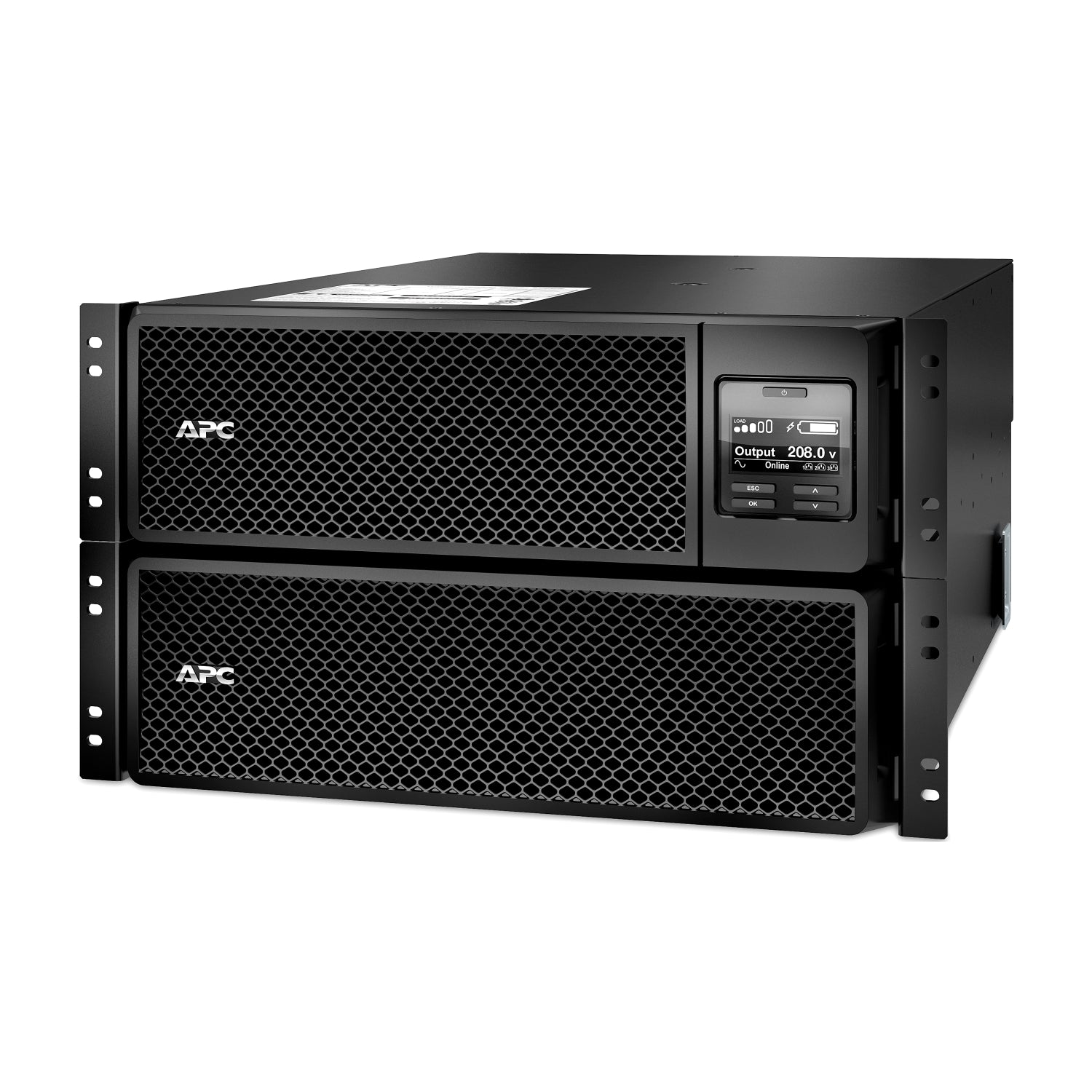

The APC Smart-UPS On-Line SRT10KRMXLT-10KTF is a 10000VA / 9000W double-conversion on-line UPS in a rackmount chassis with 208/240V input and an integrated single 10kVA step-down transformer providing 120V output — the only SRT rackmount model with a single high-capacity 10kVA transformer, delivering the maximum single-transformer 120V output capacity for commercial AV and IT rack deployments in 208/240V facilities. Specified for racks requiring the full 10kVA of 120V output capacity from a single integrated transformer unit rather than dual 5kVA units.

Product Description

The SRT10KRMXLT-10KTF provides the same 10000VA input capacity and 120V output as the SRT10KRMXLT-5KTF2 dual-transformer model but with a single integrated 10kVA step-down transformer — relevant when the application or facility electrical design specifies a single large transformer rather than dual units. Double-conversion on-line topology provides zero transfer time and complete galvanic isolation for all connected 120V equipment. The 10kVA transformer is rated for continuous commercial AV and IT loads within its capacity. External APC SRT battery packs extend runtime, and SmartSlot accepts optional NMC for enterprise SNMP and EcoStruxure IT monitoring.

Key Features

• 10000VA / 9000W Input with Integrated 10kVA Step-Down Transformer — Single large transformer for maximum 120V output capacity.
• Double-Conversion On-Line Topology — Zero transfer time and complete galvanic isolation.
• 208/240V Input / 120V Output — For maximum-capacity 208V racks with 120V equipment.
• Single 10kVA Transformer — Alternative to dual 5kVA transformer configuration.

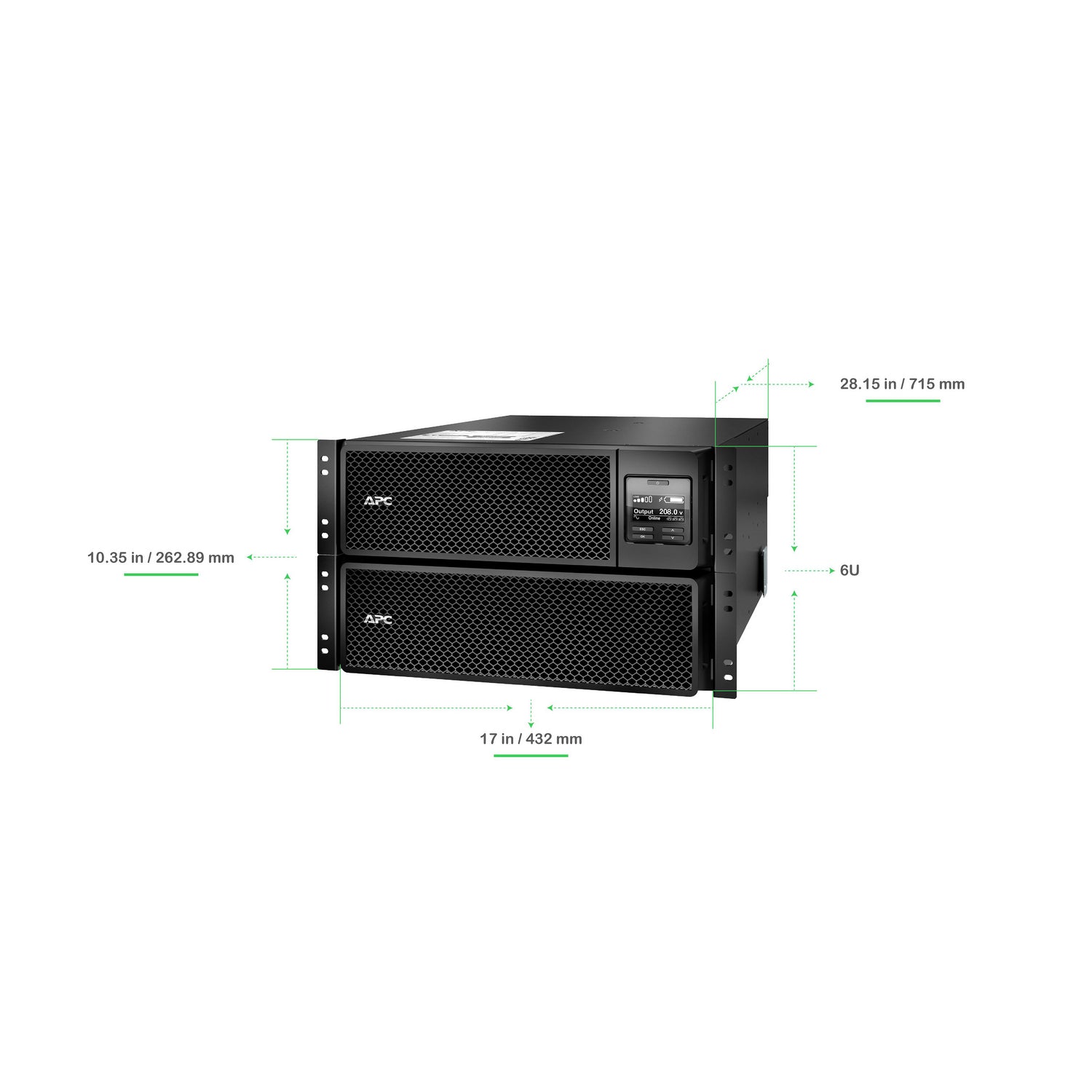

• Rackmount Form Factor — Standard 19-inch rack installation.

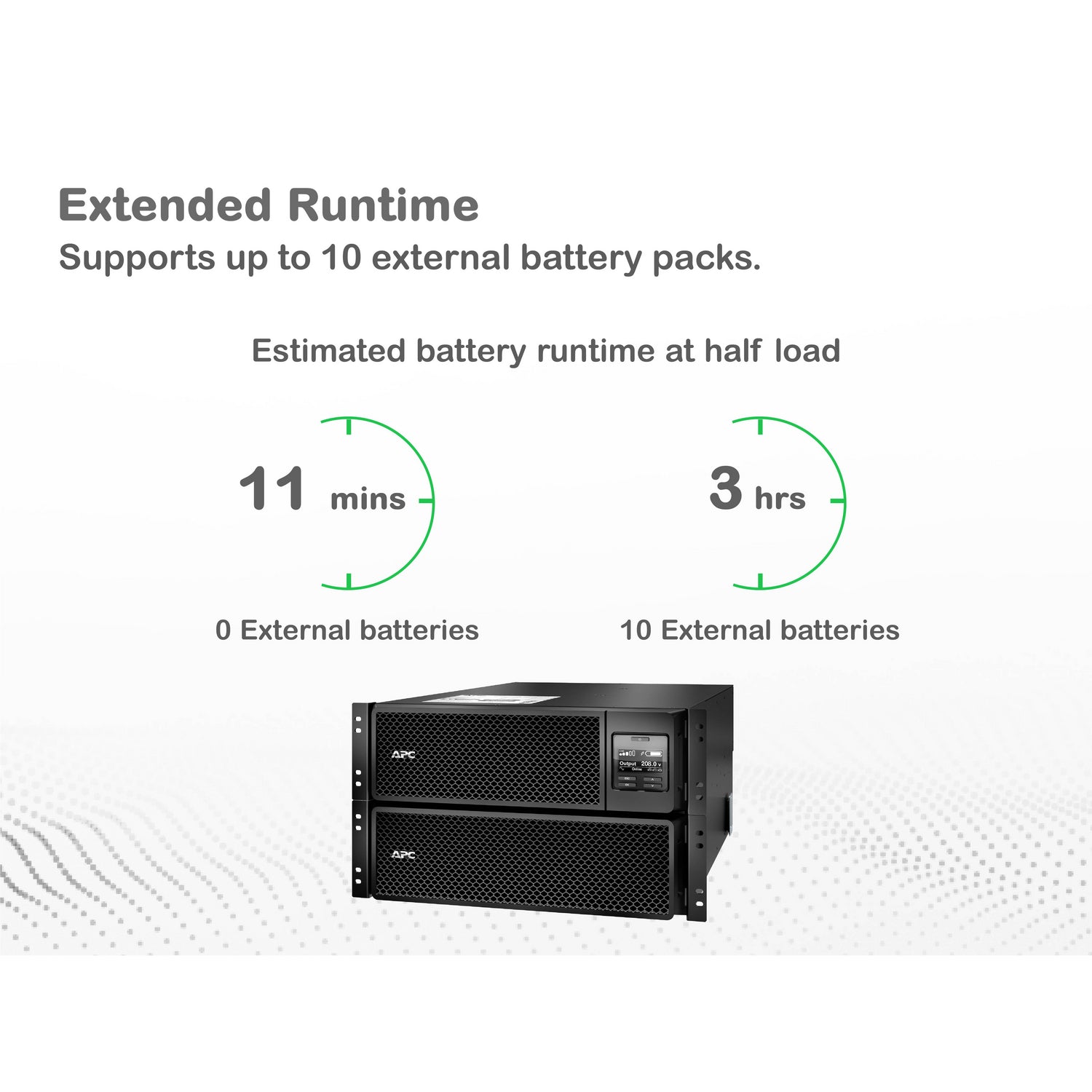

• Scalable Runtime — External APC SRT battery packs.

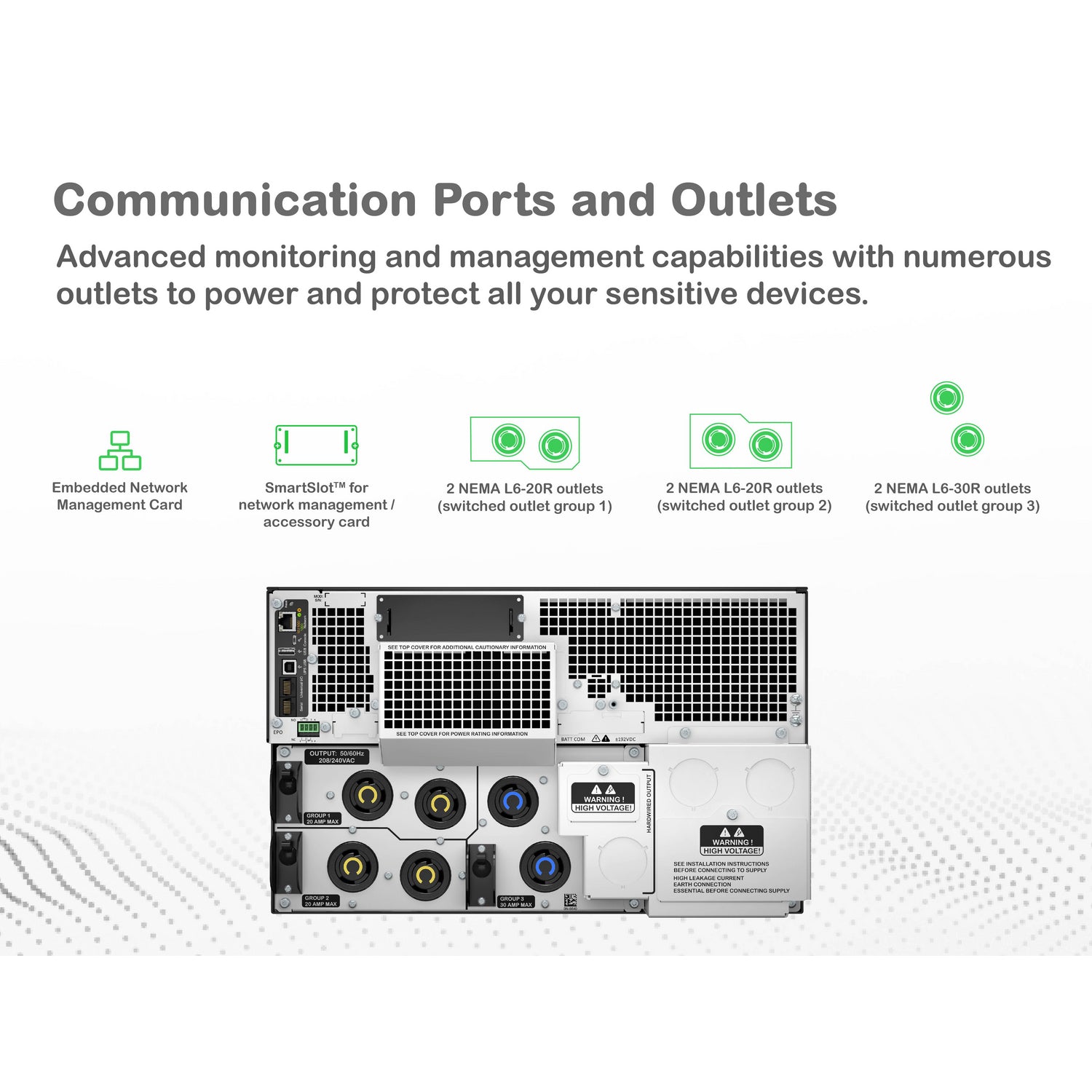

• SmartSlot — Optional NMC for enterprise SNMP and EcoStruxure IT.

Technical Specifications

Frequently Asked Questions

What is the difference between the SRT10KRMXLT-10KTF and SRT10KRMXLT-5KTF2?

Both provide 10000VA input and 10kVA of 120V output capacity. The SRT10KRMXLT-10KTF uses a single integrated 10kVA transformer; the SRT10KRMXLT-5KTF2 uses two integrated 5kVA transformers. Specify based on your facility's electrical design preferences and transformer configuration requirements.

Does this unit require a dedicated 208V circuit?

Yes. A dedicated 208/240V circuit rated for the unit's input current is required. Consult APC's product datasheet and your electrical contractor for circuit sizing before specification and installation.
