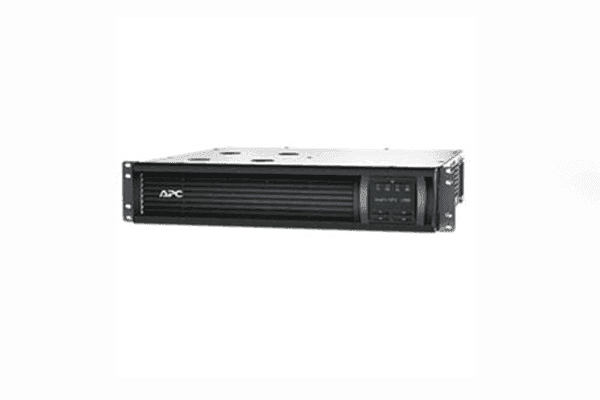

APC SMT1500RM2UC Smart-UPS 1500VA LCD RM 2U 120V with SmartConnect

Product Overview

The APC SMT1500RM2UC is a 1500VA 2U rackmount UPS engineered to protect servers, storage, and AV head-end equipment from utility power disturbances. As an APC Smart-UPS 1500VA rackmount UPS with SmartConnect, it combines pure sine wave output with cloud-based remote power monitoring and an expansion SmartSlot. This line interactive UPS with AVR corrects utility voltage without cycling the battery during routine sags and surges. It is a strong fit for conference room, network-closet, and broadcast head-end power protection.

Product Description

The SMT1500RM2UC is a 1440VA/1000W line interactive pure sine wave UPS in a 2U rackmount chassis for 120V environments. APC positions it for servers, storage, network closets, business VoIP, and retail POS, all of which are common loads in a commercial AV rack or head-end. Automatic Voltage Regulation helps correct utility voltage, keeping output stable without unnecessary transfers to battery. A SmartConnect Ethernet port delivers cloud-based remote power monitoring so AV and IT teams can track the unit remotely. The chassis also includes a SmartSlot for adding an optional network management or environmental monitoring card. PowerChute Serial Shutdown over serial or USB cables enables graceful shutdown of protected systems during longer outages. The unit provides six NEMA 5-15R outlets and an LCD for local status and configuration. It is ENERGY STAR certified under the ENERGY STAR UPS V2.0 program for the USA, and a replacement battery is available for long-term service. The pure sine wave output suits the active PFC supplies used in current servers and AV electronics.

Key Features

• 1440VA/1000W Capacity — The line interactive design delivers pure sine wave power rated at 1440VA/1000W for demanding rack loads.
• 2U Rackmount Form Factor — The chassis installs in a standard 2U rack space for clean integration into an AV or server rack.
• Automatic Voltage Regulation — AVR helps correct utility voltage so output stays stable without unneeded battery transfers.
• SmartConnect Remote Monitoring — The built-in SmartConnect Ethernet port provides cloud-based remote power monitoring of the UPS.
• SmartSlot Expansion — A SmartSlot accepts an optional management or environmental monitoring card for added visibility.
• PowerChute Graceful Shutdown — Serial or USB connection with PowerChute Serial Shutdown enables controlled shutdown of connected systems.
• Six NEMA 5-15R Outlets — The UPS provides six 120V outlets for protecting connected AV and IT equipment.
• ENERGY STAR Certified — The unit meets ENERGY STAR UPS V2.0 requirements for energy-efficient operation in the USA.

Typical Applications

• Conference Room — It protects switchers, codecs, and control systems in a conference room AV rack during power events.
• Broadcast Studio — The 1440VA/1000W capacity supports broadcast studio head-end gear that cannot tolerate sudden power loss.
• Commercial Meeting Space — It keeps shared meeting space AV and networking equipment running through brief utility interruptions.
• Training Room — The UPS backs training room presentation and network hardware for uninterrupted sessions.

Technical Specifications

Specifications sourced from Schneider Electric (APC) product data.

Frequently Asked Questions

What loads is the SMT1500RM2UC designed to protect?
APC positions it for servers, storage, network closets, business VoIP, and retail POS, which covers most AV head-end and networking equipment in a 2U rack.

How much rack space does it require?
It is a 2U rackmount unit, occupying two standard rack units in a 19-inch AV or server rack.

Can we add a network management card?
Yes, the chassis includes a SmartSlot for an optional network management or environmental monitoring card, in addition to the built-in SmartConnect Ethernet port.

How does it integrate with IT shutdown workflows?
USB or serial connections support PowerChute Serial Shutdown for graceful shutdown of connected systems, and SmartConnect enables cloud-based remote monitoring.

Is a replacement battery available?
Yes, APC lists an available replacement battery for this model to support long-term serviceability.

What about warranty and support?
Refer to Schneider Electric documentation for current warranty terms and support options for this Smart-UPS model.
