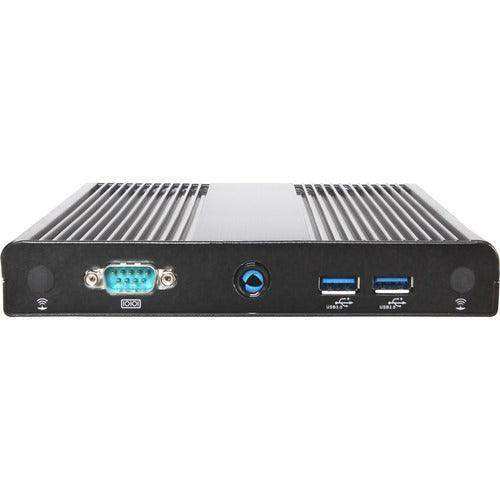

AOpen Digital Engine DE3450 – Fanless Dual-Display 4K Signage Player

Product Overview

The AOpen Digital Engine DE3450 is a commercial-grade fanless digital signage media player built for reliable, long-term deployment across retail, transportation, and enterprise environments. Powered by an Intel Apollo Lake Quad-Core J3455 processor with Intel HD Graphics 500, this ultra-compact appliance drives two independent 4K UHD displays simultaneously—making it a proven choice for dual-screen digital signage installations. Its solid-state, fanless design eliminates mechanical failure points, while AiCU remote monitoring gives operators centralized pulse-check visibility across distributed signage networks.

Product Description

The DE3450 occupies a 166 x 25 x 158 mm footprint—thin enough to mount behind a display or tuck into a millwork cavity—while delivering the compute headroom needed for UHD content playback at resolutions up to 3840x2160. Dual HDMI outputs (one HDMI 2.0, one HDMI 1.4b) connect directly to commercial displays without additional adapters, and dual Gigabit Ethernet ports (Realtek RTL8111H) allow the unit to sit on isolated AV and IT network segments simultaneously. Two front-panel USB 3.0 ports and a front-facing RS-232 DB9 connector simplify touchscreen, barcode scanner, and peripheral integration without routing cables behind the unit.

Memory is configurable via two DDR3L SO-DIMM slots supporting dual-channel operation up to 8GB at 1866 MT/s, and a single M.2 SSD slot handles local content storage. The fanless thermal design, combined with solid-state storage, meets the shock and vibration tolerances required for mobile and transit signage applications. With a rated MTBF of 50,000 hours and an operating temperature range of 0–45°C, the DE3450 is suited for continuous 24/7 commercial signage operation. AiCU support enables remote status monitoring across multi-site deployments, reducing on-site service visits for distributed signage networks.

Key Features

• Intel Apollo Lake J3455 Quad-Core Processor — Delivers consistent 4K UHD decode performance with low TDP, keeping thermal output manageable in enclosed mounting positions.
• Dual Independent 4K Display Outputs — One HDMI 2.0 and one HDMI 1.4b port drive two displays at up to 3840x2160 resolution, supporting video walls, paired kiosk screens, and multi-zone layouts.
• Fanless Thermal Design — No moving parts means no fan noise, no dust ingestion, and no fan-motor failure—critical for installations in hospitality, healthcare, and public-facing environments.
• Dual Gigabit Ethernet — Two independent Realtek RTL8111H LAN ports allow simultaneous connection to segregated AV management and corporate IT networks.
• Front-Panel RS-232 DB9 — Direct serial access for peripheral control, touch overlay integration, and field diagnostics without accessing rear I/O.
• AiCU Remote Monitoring — Built-in support for AOpen's AiCU platform provides remote pulse-check status reporting, enabling proactive signage management across distributed sites.
• Shock and Vibration Resistance — Fanless construction and SSD-only storage make the DE3450 suitable for transit vehicles, mobile kiosks, and vibration-prone installations.
• 50,000-Hour MTBF Rating — Commercial-grade reliability specification supports continuous operation in digital signage deployments with minimal scheduled maintenance.
• Dual Antenna Ports (Front) — Front-panel antenna connectors support optional wireless expansion without permanent rear-panel penetrations.
• Ultra-Compact Form Factor — At 0.8 kg and 25 mm tall, the DE3450 VESA-mounts behind displays or fits inside standard AV rack accessories and millwork enclosures.

Typical Applications

• Retail digital signage (single and dual-screen endcap and window displays)
• Transportation and transit passenger information systems
• Healthcare wayfinding and patient communication displays
• Government and municipal public information kiosks
• Quick-service restaurant (QSR) menu board systems
• Corporate lobby and reception area digital signage
• Training room and conference room content display
• House of worship announcement and service display systems

Technical Specifications

Frequently Asked Questions

Does the DE3450 support two displays running different content simultaneously?
Yes. The HDMI 2.0 and HDMI 1.4b outputs are independent, allowing two displays to run separate content zones or mirror the same source depending on your signage software configuration.

What operating systems are supported?
The DE3450 ships as a bare platform without a pre-installed OS. It is compatible with Windows 10 IoT Enterprise, Windows 10 Pro, and major Linux-based digital signage distributions. OS selection typically depends on your content management system (CMS) requirements.

Is the DE3450 suitable for 24/7 continuous operation?
Yes. The fanless design, 50,000-hour MTBF rating, and 0–45°C operating temperature range are specified for continuous commercial deployment. It meets the thermal and reliability standards expected in commercial digital signage installations.

How does AiCU remote monitoring work?
AiCU is AOpen's remote device management platform. When enabled, it sends periodic status signals from each player to a central dashboard, allowing operators to verify player uptime and connectivity across multi-site deployments without dispatching on-site technicians.

Can the DE3450 be VESA-mounted behind a display?
Yes. The unit's compact dimensions and low weight (0.8 kg) make it compatible with VESA mounting brackets and OPS-style mounting accessories available from AOpen and third-party suppliers.

What is the maximum supported content resolution?
The DE3450 supports 4K UHD playback at 3840x2160 via the HDMI 2.0 output. The HDMI 1.4b output supports up to 4K at 30Hz. Confirm resolution and refresh rate support with your CMS vendor for specific codec and bitrate requirements.

Does the unit include a warranty?
AOpen products are covered by AOpen's standard commercial warranty. Contact Creation Networks for current warranty terms, extended service options, and replacement unit availability.

What accessories are typically required for installation?
A mounting bracket, M.2 SSD, RAM module(s), and a compatible OS license are the most common additional items. Contact Creation Networks for a complete bill of materials tailored to your deployment requirements.
