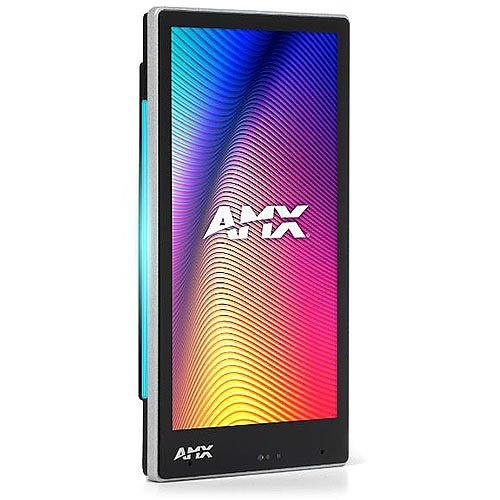

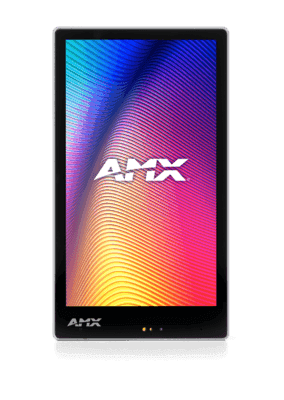

AMX VARIA-SL50 – 5.5-Inch Ultra-Slim Wall-Mount Persona-Defined Touch Panel

Product Overview

The AMX VARIA-SL50 is a 5.5-inch ultra-slim portrait persona-defined touch panel engineered for flush in-wall installation in standard single-gang electrical boxes, making it the most compact panel in the VARIA SL line for conference room door scheduling, small room AV control, and hallway kiosk applications. Despite its minimal form factor — 24.3 mm depth and 0.38 lb — it supports the full VARIA persona architecture including Zoom Rooms Controller, AMX G5 AV control, AMX Book scheduling, web kiosk, and open Android app platform. Powered by PoE 802.3af over a single RJ-45, the VARIA-SL50 installs cleanly in any standard single-gang box without separate power requirements.

Product Description

The AMX VARIA-SL50 (AMX-UTP0501) features a 5.5-inch, 720×1280, 9:16 portrait touchscreen with a 1W integrated speaker, dual microphones, ambient light sensor, and proximity sensor for wake-on-approach. Camera and NFC are not included, making it naturally compatible with facilities that restrict camera hardware without requiring a special no-comm variant. Five pre-loaded personas define its operational mode: AMX G5 Control, Zoom Rooms Controller, AMX Book scheduling, Web Kiosk, and Any-App Android platform — all software-selectable without hardware changes. Side LEDs programmable to over 1 million colors enable room status, booking state, and AV system feedback signaling. Enterprise security protocols — HTTPS, 802.1X, TLS 1.3, and OAuth 2.0 — ensure compatibility with corporate and government networks. CloudworX Manager enables remote mass configuration and firmware deployment across large VARIA SL fleets.

Key Features

• 5.5-Inch Portrait Single-Gang In-Wall Design: Ultrasim 24.3 mm depth fits standard single-gang electrical boxes — smallest panel in the VARIA SL family.
• 9:16 Portrait Display: 720×1280 portrait orientation optimized for room scheduling and door-mount display applications.
• Persona-Defined Architecture: Zoom Rooms, AMX G5, AMX Book, Web Kiosk, Any Android App — software-selectable.
• No Camera or NFC: Suitable for facilities restricting camera hardware without requiring a special variant.

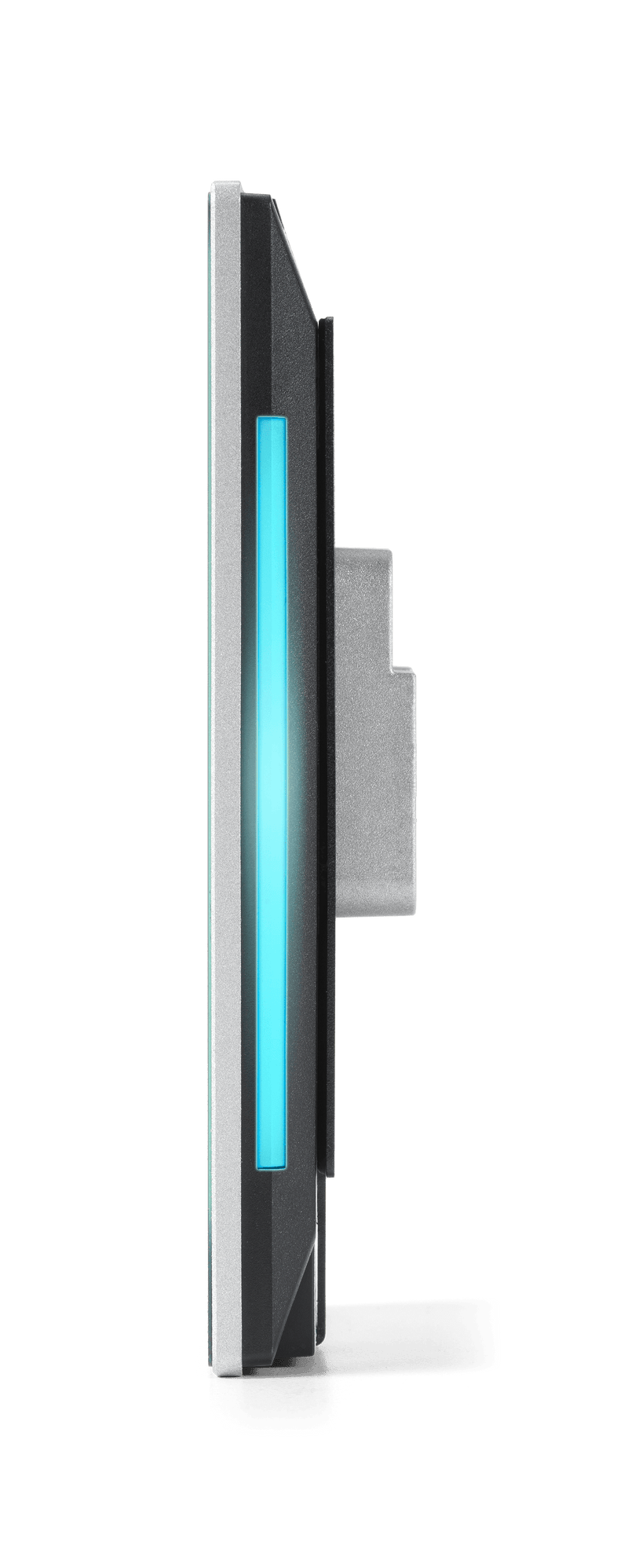

• Programmable 1M+ Color Side LEDs: Room status and availability signaling in over 1 million colors.

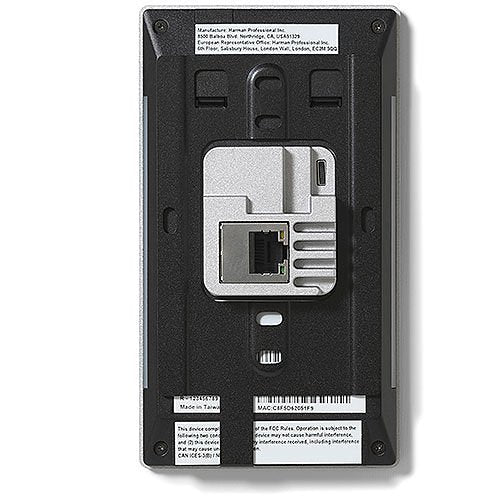

• PoE 802.3af — Single Cable: 15.4W PoE over RJ-45 — no AC power at the panel location.
• Enterprise Security: HTTPS, 802.1X, TLS 1.3, OAuth 2.0.
• CloudworX Manager: Centralized remote configuration and firmware management.

Typical Applications

• Conference Room: Outside-door 5.5-inch portrait scheduling panel for commercial meeting rooms — minimal footprint, single-gang box installation.
• Huddle Room: Compact Zoom Rooms controller or AMX Book scheduling panel for small collaboration spaces.
• Commercial Meeting Space: Room booking kiosk in tight wall space locations using existing single-gang boxes.
• Government Space: Secure room scheduling panel without camera hardware for government facility door installations.

Technical Specifications

Frequently Asked Questions

Is the VARIA-SL50 the smallest VARIA panel?

Yes. At 5.5 inches in portrait orientation and 24.3 mm depth, the VARIA-SL50 is the most compact panel in the VARIA SL series, designed specifically for single-gang box installations where space is at a premium.

Does the VARIA-SL50 have an integrated camera?

No. The VARIA-SL50 does not include a camera or NFC, making it naturally suitable for facilities with hardware security restrictions without requiring a separate no-comm variant.

Can it display room availability outside meeting room doors?

Yes. The VARIA-SL50 running the AMX Book persona displays real-time room availability and booking status, and side LEDs can be programmed to show green/red/custom colors for instant visual status at a glance.
