AMX UVC1-4K – 4K USB Video Capture Card
Product Overview

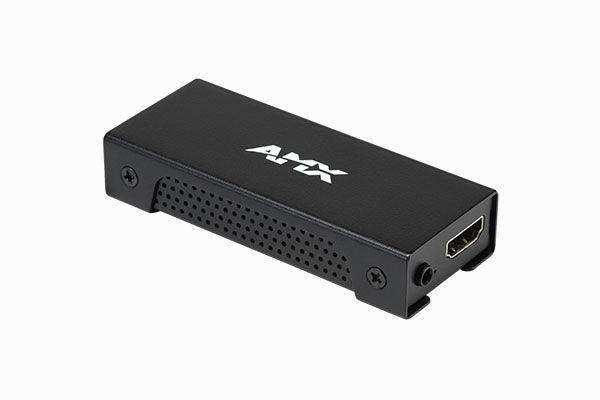

The AMX UVC1-4K is a 4K HDMI-to-USB video capture device that brings HDMI sources into PCs and software conferencing platforms such as Zoom and Microsoft Teams over USB. It solves the common problem of computers that lack HDMI or other video inputs, making it a practical capture solution for video conferencing rooms, lecture capture, and distance learning.
Product Description
The UVC1-4K accepts HDMI input resolutions up to 4096×2160p60 4:4:4 with HDR and 10-bit per channel Deep Color, and presents a standard UVC video stream to the host computer at up to 3840×2160p30 (NV12, I420) or 1920×1080p60 (YUY2, P010). Because it is UVC-compliant, it operates without additional drivers across Windows 10 (64-bit) and macOS 10.12 or newer, and is recognized directly by Zoom, Microsoft Teams, WebEx, Skype, and other soft-codec applications. Analog stereo and HDMI-embedded audio are captured alongside the video. It also serves as a companion to the AMX TPC-TPI-PRO in-room presentation management system, letting operators preview and control content from a single touch-panel interface.
Key Features
- HDMI 2.0 input — Accepts up to 4096×2160p60 4:4:4 with HDR and 10-bit Deep Color.
- USB 3.0 UVC output — Streams up to 3840×2160p30 or 1920×1080p60 to the host PC.
- Driverless UVC operation — Recognized natively by Windows 10 (64-bit) and macOS 10.12 or newer.
- Broad software support — Works with Zoom, Microsoft Teams, WebEx, Skype, and other UVC applications.
- Embedded audio capture — Captures analog stereo and HDMI-embedded audio with the video.
- TPC-TPI-PRO companion — Integrates with the AMX in-room presentation management system.
Typical Applications
- Conference room video conferencing source capture
- Higher-education lecture capture and distance learning
- Training room content recording
- Bringing document cameras or media players into PCs without video inputs
Technical Specifications
| Specification | Value |
|---|---|
| HDMI input | Up to 4096×2160p60 4:4:4, HDR, 10-bit Deep Color |
| USB output (UVC) | Up to 3840×2160p30 (NV12, I420) / 1920×1080p60 (YUY2, P010) |
| USB | USB 3.0 |
| Audio | Analog stereo and HDMI-embedded |
| OS support | Windows 10 (64-bit), macOS 10.12 or newer |
| Software compatibility | Zoom, Microsoft Teams, WebEx, Skype, and other UVC applications |
| SKU | AMX-UVC1-4K |
