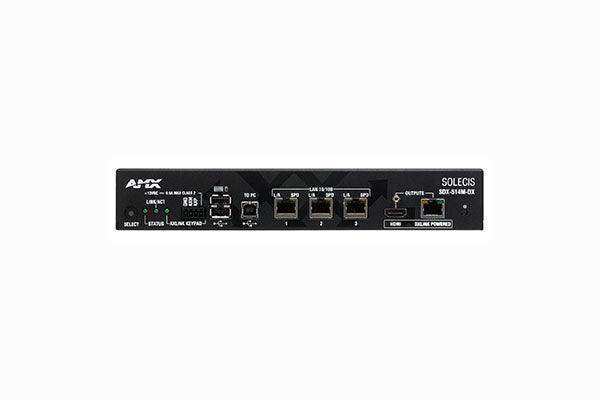

AMX SDX-514M-DX – Precis 5x1 SDVoE DXLink Switcher with Multi-Window

Product Overview

The AMX SDX-514M-DX is a 5-input, 1+1 output 4K presentation switcher with integrated SDVoE-based multi-window compositing and DXLink twisted pair output, designed for conference rooms and collaboration spaces requiring flexible source routing, multi-window display capabilities, and distance transport over Cat cable. Accepting 3 HDMI and 2 HD-15 (RGBHV) inputs with 4K resolution support, the SDX-514M-DX delivers switched output to an HDMI and mirrored DXLink output with full AV and control transport, and supports MyTurn source selection for wireless-style HDMI/VGA cable-based switching without an external control system.

Product Description

The AMX SDX-514M-DX (FG1010-355) provides 5x1 dual audio/video switching, routing any of 5 inputs simultaneously to both the HDMI and DXLink outputs. Three HDMI inputs support HDMI/HDCP, and two HD-15 inputs accept RGBHV analog sources, supporting 4K resolutions up to 3840×2160 @ 60 Hz (4:2:0) and 4096×2160 @ 60 Hz (4:2:0). Multi-format audio includes Dolby TrueHD, DTS-HD MA, Dolby Digital, DTS, and 2–8 CH L-PCM from HDMI connections. The DXLink output transports digital video, audio, Ethernet, and bidirectional control over Cat cable to compatible DX-RX-4K receivers or Enova DGX DXLink input boards. An AxLink Keypad port supports up to 2 external AxLink keypads for room control. MyTurn source selection allows HDMI/VGA cable-connected source devices to trigger switching via MyTurn Source Selector Buttons and Receiver, or through HydraPort 2-Button Keypad modules. Three RJ-45 Ethernet connections provide TCP/IP management and integration with AMX control systems.

Key Features

• 5x1 Dual Output Switching: Routes any of 5 inputs simultaneously to HDMI and DXLink outputs.
• 4K Resolution Support: Supports up to 4K60 4:2:0 and 4K30 4:4:4 on HDMI and DXLink outputs.
• DXLink Output — AV + Control: Cat cable output carries video, audio, Ethernet, and bidirectional control to DXLink receivers up to 100 m.
• Multi-Format Inputs: 3 HDMI/HDCP + 2 HD-15 RGBHV for mixed source environments.
• MyTurn Source Selection: Cable-connected source switching via MyTurn buttons and receiver — no controller required for basic use.
• AxLink Keypad Support: AxLink port for up to 2 external keypad control devices.
• Multi-Format Audio: Dolby TrueHD, DTS-HD MA, Dolby Digital, DTS, 2–8 CH L-PCM.
• Enova DGX Compatible: Works with Enova DGX DXLink 4K input boards as a source endpoint in matrix switching systems.

Typical Applications

• Conference Room: Multi-format source switching with 4K DXLink distance transport for commercial meeting rooms.
• Huddle Room: MyTurn cable-based switching for BYOD collaboration spaces without a control system.
• Training Room: Instructor-controlled 5-source switching with Cat cable display output for small training environments.
• Commercial Meeting Space: Flexible 4K switching with distance transport for distributed corporate meeting room deployments.

Technical Specifications

Frequently Asked Questions

Does the SDX-514M-DX require an AMX controller for source switching?

No — the SDX-514M-DX supports MyTurn source selection via cable-mounted buttons and receiver for controller-free switching. An AMX control system can be added for automation, but is not required for basic room operation.

What receiver is used with the DXLink output?

The DXLink output is compatible with the AMX DX-RX-4K DXLink 4K HDMI Receiver as a point-to-point solution, or with Enova DGX DXLink 4K input boards (DGX-I-DXL-4K) for matrix-based installations.

What is the maximum 4K resolution supported?

The SDX-514M-DX supports 4K at 60 Hz with 4:2:0 chroma subsampling (3840×2160 or 4096×2160 @ 60 Hz), and 4K at 24/25/30 Hz with full 4:4:4. For 4K60 at 4:4:4, specify the DXFP or newer generation products.
