AMX SDX-414-DX – Precis 4x1 SDVoE DXLink Switcher
AMX SDX-414-DX – Precis 4x1 SDVoE DXLink Switcher is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
AMX SDX-414-DX – Precis 4x1 SDVoE DXLink Switcher
AMX SDX-414-DX – Precis 4x1 SDVoE DXLink Switcher
Product Overview

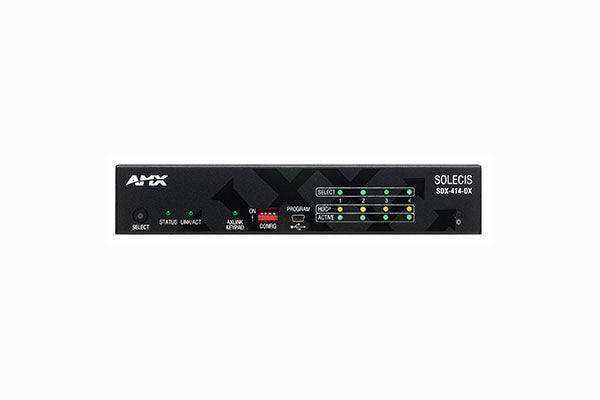

The AMX SDX-414-DX is a 4-input, 1+1 output SDVoE DXLink presentation switcher for commercial AV environments, routing 4 sources (HDMI and VGA) to HDMI and DXLink twisted pair outputs with 4K resolution support and MyTurn source selection for BYOD laptop-driven switching. Compact and cost-effective, the SDX-414-DX simplifies small room AV without a dedicated controller while remaining compatible with AMX NetLinx systems and Enova DGX infrastructure for larger deployments.
Product Description
The AMX SDX-414-DX is a Precis 4x1 SDVoE DXLink presentation switcher combining four HDMI inputs with a DXLink twisted pair output for local and network-based 4K AV distribution in conference rooms and meeting spaces. It accepts HDMI sources and switches them to a DXLink-connected display endpoint while supporting SDVoE (Software Defined Video over Ethernet) for integration into IP-based AV distribution systems. Designed for commercial AV integrators, the SDX-414-DX simplifies conference room installations where both local DXLink signal extension and network AV routing are required from a single compact switcher.
Key Features
- 4x1 Dual Output Switching: 4 inputs simultaneously routable to HDMI and DXLink outputs.
- DXLink Transport: Cat cable output carries video, audio, and control to DXLink receivers up to 100 m.
- 4K Resolution Support: 4K30 and 4K60 (4:2:0) support on HDMI and DXLink outputs.
- MyTurn Source Selection: Cable-connected BYOD source switching without a control system.
Typical Applications
- Huddle Room: Simple 4-source BYOD switching with Cat cable display transport.
- Conference Room: Cost-effective small room switching with DXLink distance output.
- Training Room: Instructor multi-source switching with distance transport to a display.
Technical Specifications
| Specification | Detail |
|---|---|
| Video Inputs | HDMI and VGA (HD-15) |
| Video Outputs | (1) HDMI; (1) DXLink (video, audio, control) |
| 4K Resolution | 4K30 (4:4:4); 4K60 (4:2:0) |
| Max Cat Distance | Up to 100 m |
| Source Selection | MyTurn; front panel; AMX NetLinx compatible |
